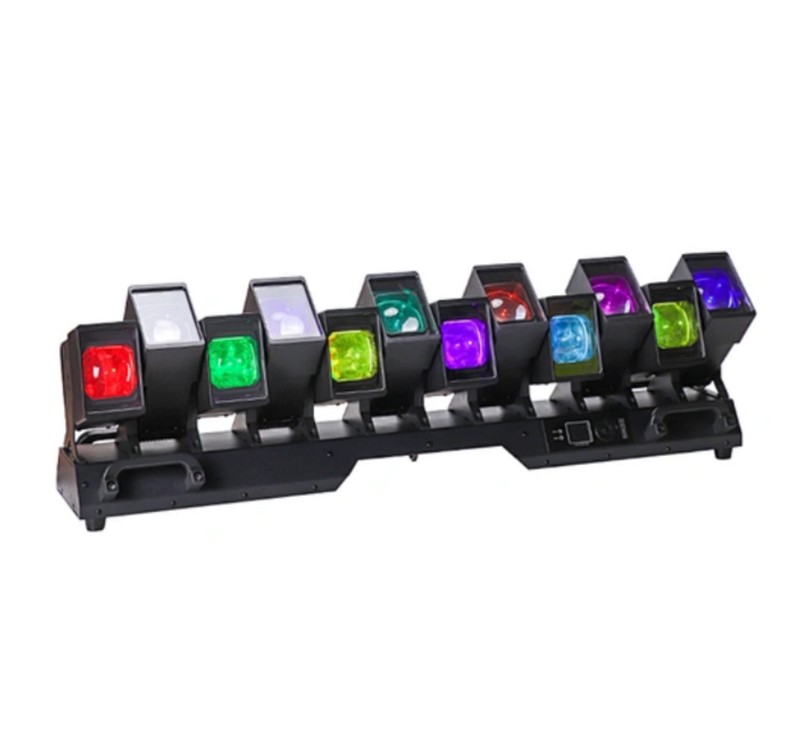

DMON LP1260 Linear Moving Arm Light (12×60W RGBW)
The Dmon LP1260 is a 12×60W RGBW linear moving arm light with individual pixel swing movement and 32-bit ultra-smooth dimming. With up to 179 DMX channels and DMX512/RDM control, the LP1260 produces dynamic wave-like array effects across a rig that a fixed linear bar can't replicate.
- Individual pixel swing movement — dynamic array effects beyond a fixed linear bar
- 32-bit ultra-smooth dimming — precise, flicker-free brightness control
- Multiple DMX channel modes (20 CH to 179 CH) — flexible integration with different console setups
- Full die-cast metal housing — durable construction for touring and repeated use
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
A fixed linear bar produces the same straight-line look regardless of the show. The LP1260's individual pixel swing movement lets segments move independently, creating dynamic wave-like array effects across a row of fixtures that a static bar can't produce.
Complex pixel-mapped shows need channel resolution that matches the console setup. The LP1260 offers multiple selectable DMX modes from 20 CH up to 179 CH, giving designers a choice between simplified control and finer per-pixel resolution depending on the show.
Application Scenarios
Specification
| Light Source | 12 × 60W RGBW 4-in-1 LED | Input Voltage | AC 100–240V, 50/60Hz |
| Power Consumption | 800W | Control Modes | DMX512 / Auto / Master-Slave / Sound / RDM |
| DMX Channels | 20 / 53 / 101 / 155 / 169A / 169B / 179 CH | Dimming | 32-bit ultra-smooth linear dimming 0–100% |
| Strobe Frequency | 1–30Hz | Movement | Individual pixel swing movement |
| Working Temperature | -30°C to 50°C | Housing | Full die-cast metal housing, black finish |
| IP Rating | IP20 | Connections | DMX512 In/Out, Power In/Out |
| Fixture Size | 1000 × 300 × 165 mm | Net Weight | 26.5 kg |
Details & Features
What's in the Box
- • DMON LP1260 Moving Arm Light (12 × 60W RGBW LED)
- • Signal Cable
- • Power Cable
- • Hanging Clamp
- • User Manual
Flight case available as an optional accessory.
Frequently Asked Questions
What does the individual pixel swing movement let me do?
Each pixel segment can move independently, so a row of LP1260 fixtures can create wave-like array effects across the rig — an effect a fixed linear bar can't produce on its own.
Can the LP1260 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with multiple selectable channel modes (20 CH up to 179 CH), and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
What's the difference between the 169A and 169B channel modes?
Both offer 169-channel control but with different channel layouts, giving operators flexibility to match the mode to their console's existing templates or programming preferences.
Does the LED source need to be replaced like a traditional lamp?
No. The LP1260 uses LEDs with no scheduled lamp replacement cycle required under normal use, unlike traditional discharge-lamp fixtures.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
