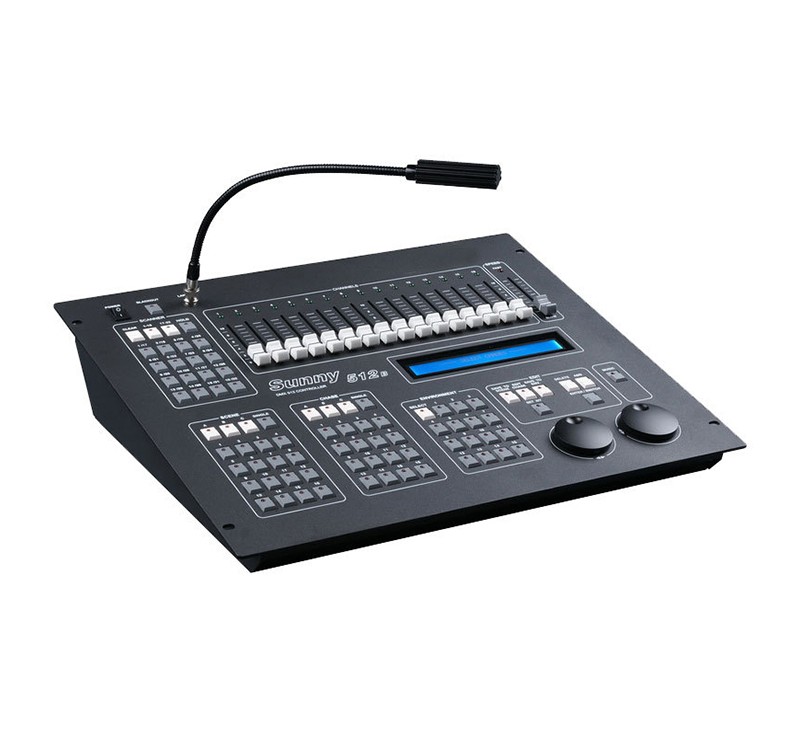

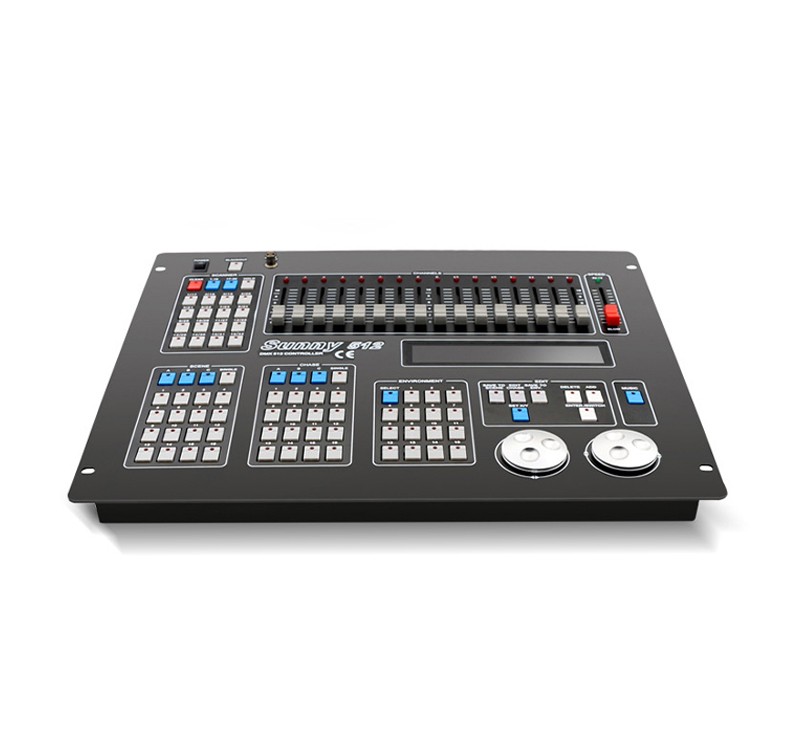

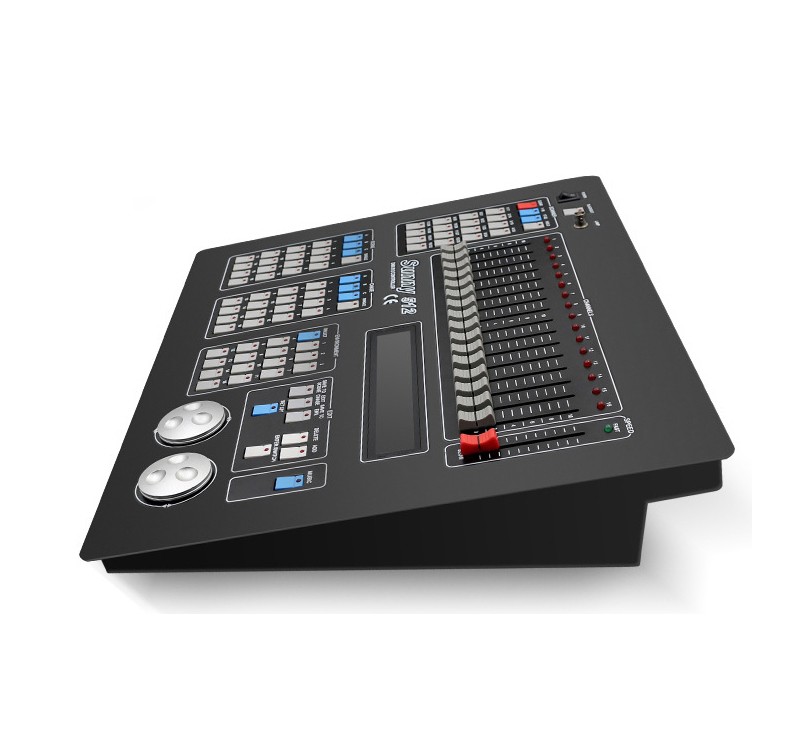

DMON SUNNY512 512CH Lighting Console
The Dmon SUNNY512 is a 512-channel lighting console controlling up to 32 moving fixtures, with dual optically isolated DMX outputs and 2000Vrms shock resistance. With 48 chase programs, 48 preset scenes, and 15 built-in environment programs, the SUNNY512 gives operators a full-featured console for programming and running complex, multi-fixture shows, complete with an included gooseneck work light.
- Dual optically isolated DMX outputs — run two separate DMX universes with electrical protection built in
- 48 chase programs + 48 preset scenes — build and store extensive show content in advance
- Runs up to 4 lighting programs simultaneously — layer multiple sequences during live playback
- Includes a gooseneck work light — see the console clearly in dark venues without extra equipment
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
A single DMX output limits how many separate lighting universes a console can control at once. The SUNNY512's dual optically isolated outputs let operators run two DMX lines independently, while the isolation itself protects the console from electrical faults on the signal line.
Finding controls on a dark stage or booth can slow an operator down mid-show. The SUNNY512 includes a professional gooseneck work light, so the control surface stays visible without needing separate lighting.
Specification
| DMX Standard | DMX512 / 1990 | DMX Channels | 512 |
| Fixture Capacity | Controls up to 32 moving lights (16 channels per fixture) | Control Interface | 16 channel faders + 1 speed fader |
| Display | Large LCD display | DMX Output | Two optically isolated DMX signal outputs |
| Electrical Protection | 2000Vrms shock resistance | Chase Storage Capacity | 1600 total chase steps |
| Programs | 48 chase programs, up to 100 steps per program | Simultaneous Playback | Up to 4 lighting programs can run together |
| Scenes | 48 preset scenes | Environment Programs | 15 built-in environment programs (auto/manual) |
| Buttons | Imported durable control buttons | Work Light | Professional gooseneck work light included |
| Power Supply | High-efficiency switching power supply, wide voltage range | Dimensions | 485 × 400 × 110 mm |
| Net Weight | 7 kg |
Frequently Asked Questions
How many fixtures can the SUNNY512 control?
Up to 32 moving lights, using 16 channels per fixture, within the console's total 512-channel capacity.
What's the difference between scenes and chase programs?
Scenes are single, static lighting looks (48 available), while chase programs are multi-step sequences that play back in order (48 programs, up to 100 steps each) — giving operators both quick static looks and complex moving sequences.
Can multiple sequences play at the same time?
Yes. The SUNNY512 can run up to 4 lighting programs simultaneously, allowing layered effects during live playback.

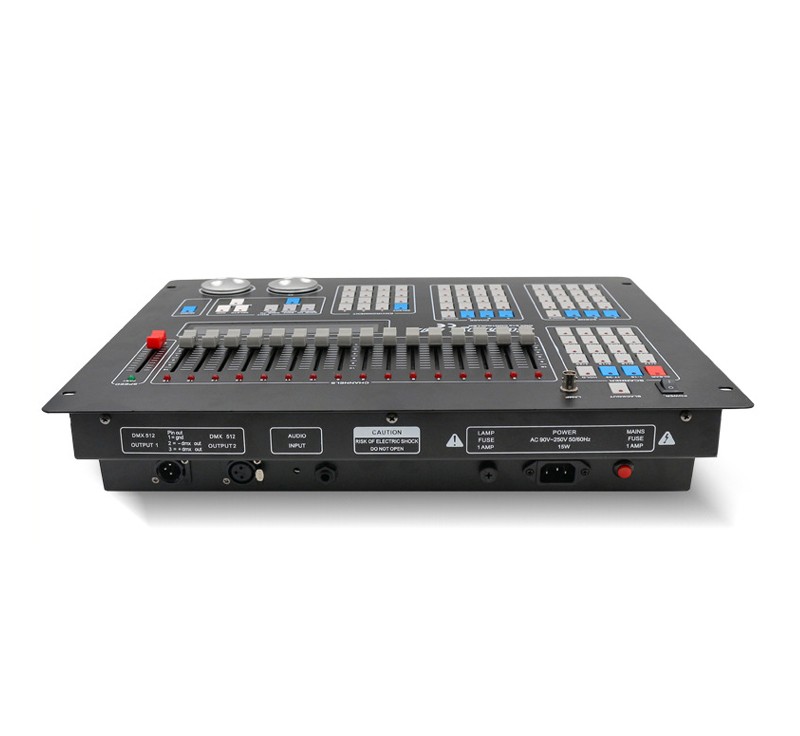

What does the dual optically isolated output provide?
Two independent DMX signal outputs allow control of two separate universes, while the optical isolation protects the console's internal electronics from electrical faults occurring on the fixture side of the DMX line.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
