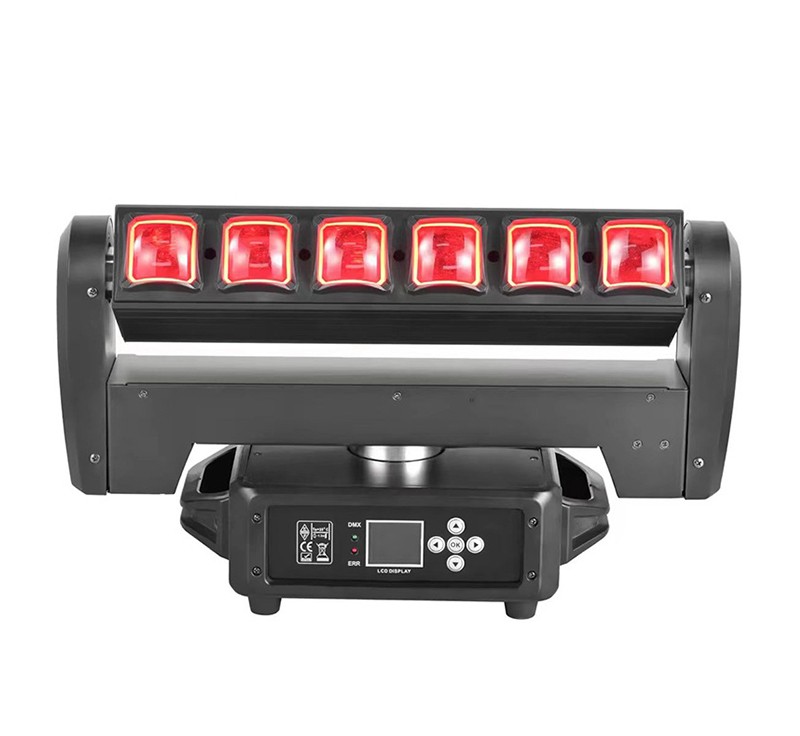

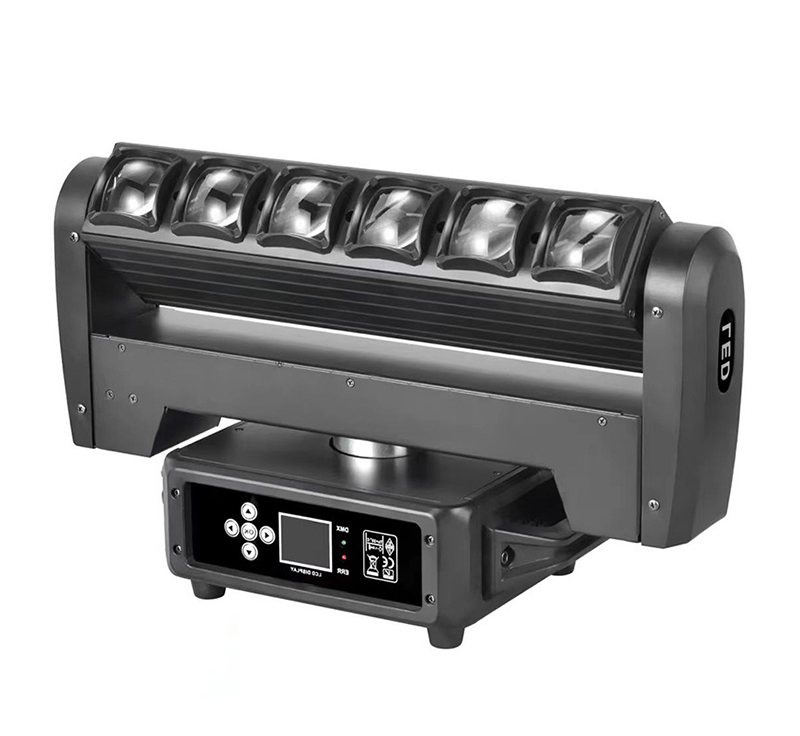

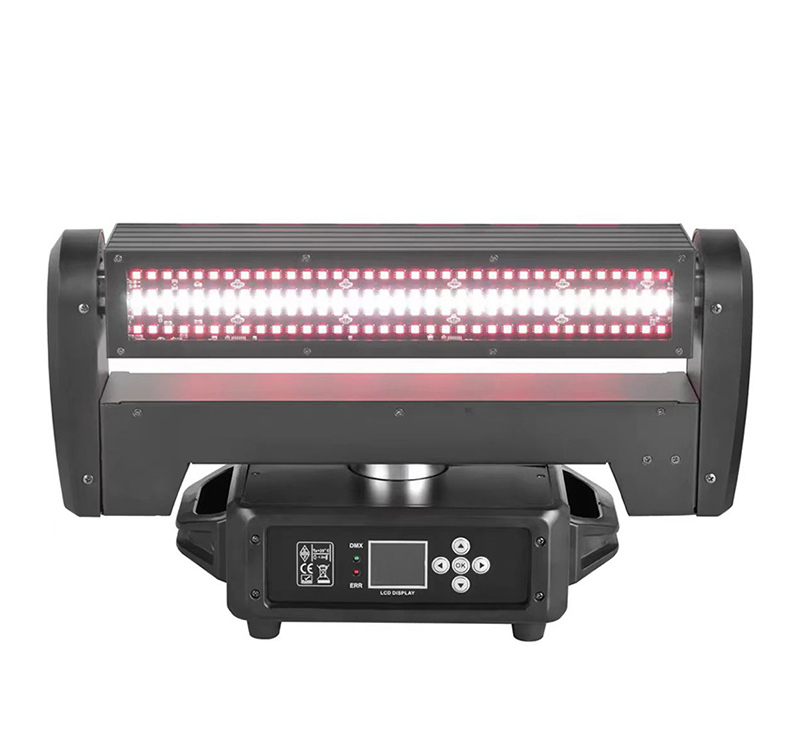

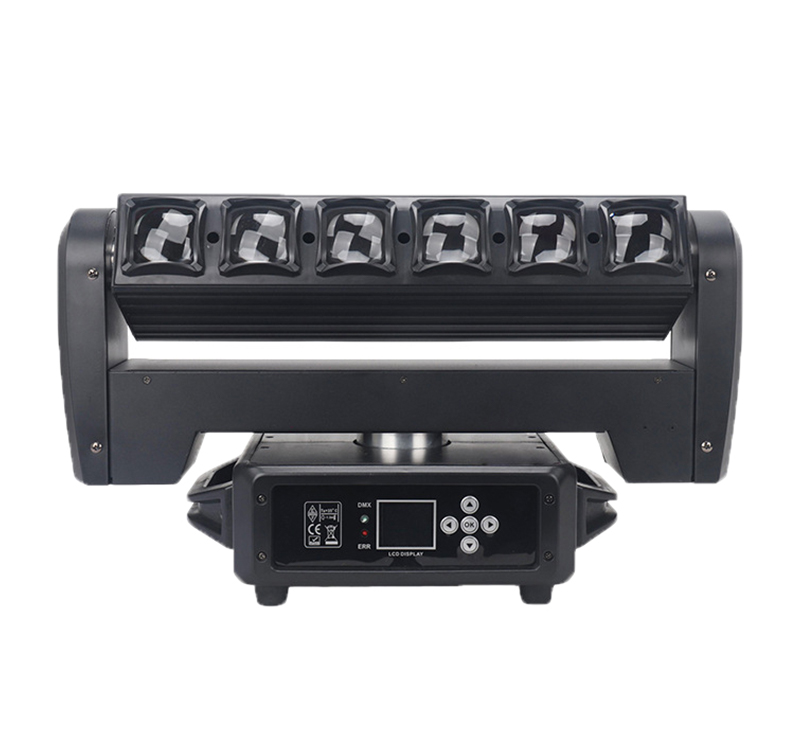

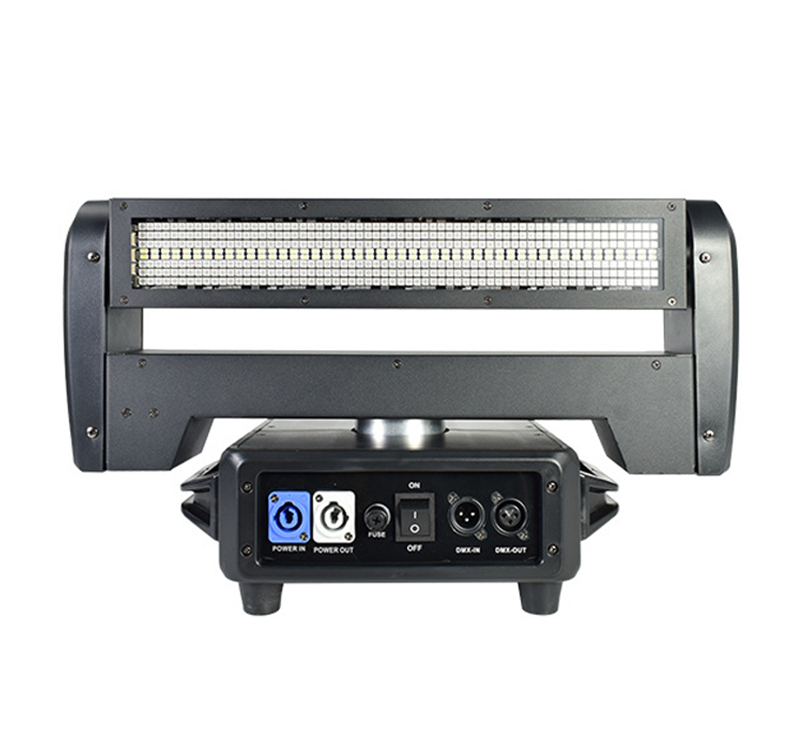

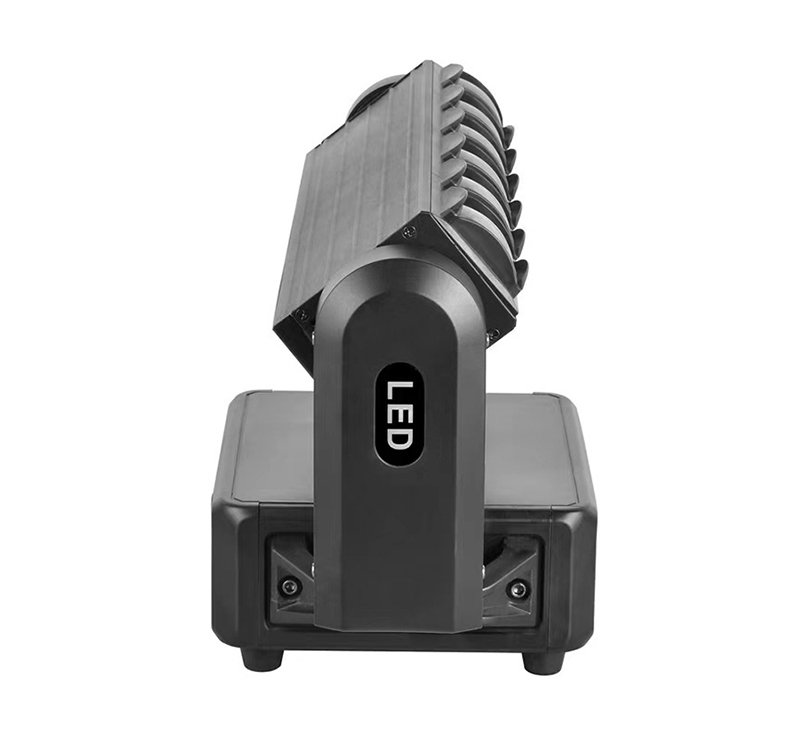

DMON LP640 Dual-Sided RGBW Blade Moving Head Light (6×40W)
The Dmon LP640 is a dual-sided RGBW blade moving head light with 6×40W LEDs and 270° infinite tilt rotation. With flicker-free dimming and DMX512/RDM control, the LP640 produces dynamic dual-face effects that a single-sided fixture can't replicate.
- Dual-sided design — two distinct visual faces from one fixture
- 270° infinite tilt rotation — continuous spinning effects without a mechanical stop point
- Flicker-free dimming (1.2–25 kHz) — camera-ready output for broadcast and video work
- Auto sleep on DMX signal loss — protects the LEDs when signal is interrupted
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
A single-sided fixture only shows one face to the audience at a time. The LP640's dual-sided design gives designers two distinct visual surfaces from one unit, useful for rigs where the audience views the fixture from multiple angles.
Filming under LED fixtures often means dealing with visible flicker on camera. The LP640's dimming runs at 1.2–25 kHz, keeping output flicker-free across a wide dimming range — so the fixture stays camera-ready without needing to match frame rates manually.
Application Scenarios
Specification
| Light Source | 6 × 40W RGBW 4-in-1 LEDs (5060) | Strobe LEDs | 0.2W 5050 RGBW strobe LEDs |
| LED Lifetime | 30,000 hours | Input Voltage | AC 100–240V, 50/60Hz |
| Power Consumption | 500W | Color Mixing | RGBW full color mixing |
| Dimming | 0–100% linear electronic dimming, gamma curve available (1.2k–25k), flicker-free for video | Strobe | 0.3–25Hz electronic strobe, sync/async/random modes |
| Pan/Tilt | Pan 540° (16-bit), Tilt 270° infinite rotation (16-bit) | Motors & Positioning | High-speed silent three-phase motors with imported Hall positioning, auto re-positioning on misstep |
| Control Protocol | DMX512, RDM | DMX Channels | 23CH (Basic) / 28CH / 52CH / 87CH |
| Display | 1.77" LCD display, bilingual menu (CN/EN), sensor error & temperature display | Sleep Mode | Auto sleep when DMX signal is lost (time configurable) |
| Cooling | High-efficiency aluminum heatsink + intelligent fan monitoring, overheat protection | IP Rating | IP20 (optional rain cover up to IP44) |
| Housing Color | Black | Fixture Size | 600 × 350 × 250 mm |
| Net Weight | 10.25 kg | Gross Weight | 12.1 kg |
| Carton Size | 660 × 370 × 310 mm (1 pc/carton) |
Details & Features
What's in the Box
- • Power Cable
- • DMX Signal Cable
- • User Manual
- • Hanging Bracket Set
Frequently Asked Questions
What does the dual-sided design offer?
The LP640 has two distinct visual faces, giving designers a fixture that reads well from multiple viewing angles without needing to reposition it.
Can the LP640 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with multiple selectable channel modes (23 CH up to 87 CH), and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
What happens if the fixture loses signal or power during a show?
The LP640 automatically enters a configurable sleep mode when DMX signal is lost, helping protect the LEDs until signal is restored.
Does the LED source need to be replaced like a traditional lamp?
No. The LP640 uses LEDs rated for 30,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
