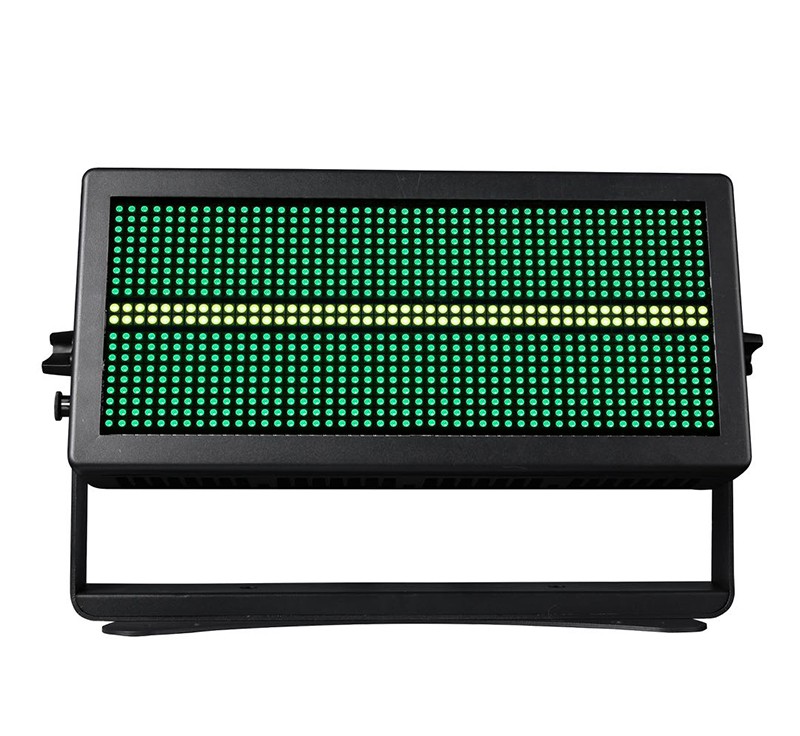

DMON PBF1212 (12+12) Segment IP65 Waterproof LED Strobe Light
The Dmon PBF1212 is an IP65-rated waterproof LED strobe light with 12 independently controllable white segments and 12 independently controllable RGB segments, combining 96 white LEDs with 864 RGB LEDs. Programmable for thousands of custom effects, with DMX512/RDM control and software-controlled thermal management, the PBF1212 is built for reliable outdoor strobe performance.
- IP65 waterproof — reliable operation in outdoor concert and festival conditions
- 12+12 independently controllable segments — detailed chase and pattern effects across white and RGB layers
- Programmable for thousands of custom effects — extensive creative range beyond preset patterns
- Software-controlled thermal management — protects output during sustained high-power use
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description

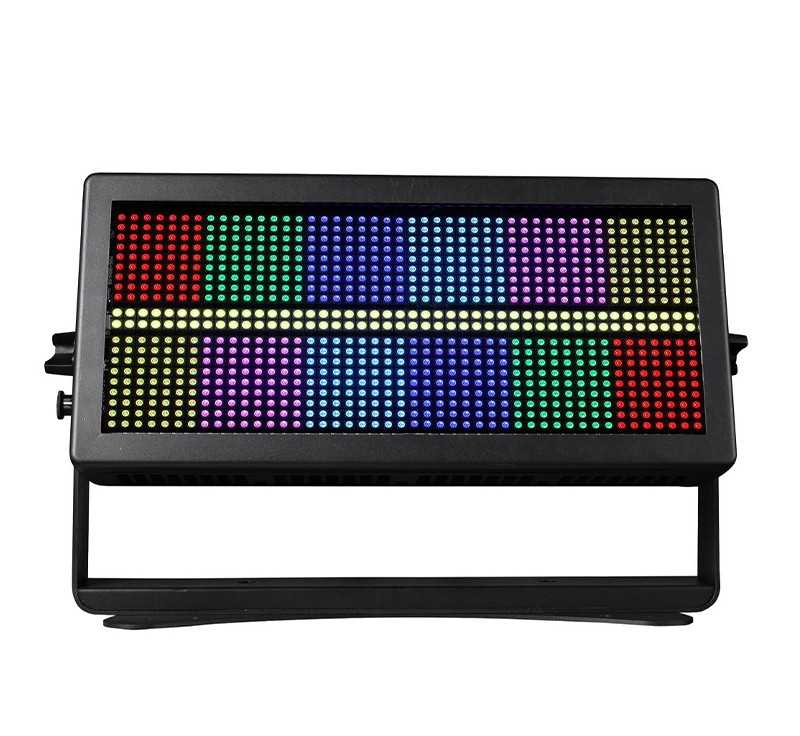

A single-layer strobe array limits how a chase effect can look. The PBF1212 separates 12 white segments from 12 RGB segments, giving designers two independently controllable layers to build more complex, programmable effects than a single-array fixture allows.
Running a strobe fixture at high output for extended periods generates heat that can affect performance if left unmanaged. The PBF1212's software-controlled thermal management adjusts power automatically, keeping the fixture stable through longer shows.
Application Scenarios
Specification
| Light Source | Main: 96 × 2W Cool White LEDs; Auxiliary: 864 × RGB 3-in-1 LEDs | Input Power | AC 110–240V, 50/60Hz |
| Strobe Output Power | 500W | Continuous Output Power | 350W |
| Dimming | 0–100% linear dimming | Strobe Frequency | 0–30 flashes/sec |
| Control Modes | DMX512 / Master-Slave / Auto / Manual / RDM | DMX Channels | 6 / 16 / 48 CH (selectable) |
| Thermal Protection | Software-controlled power management | Effect Structure | 12 main white segments independently controllable + 12 RGB auxiliary segments independently controllable |

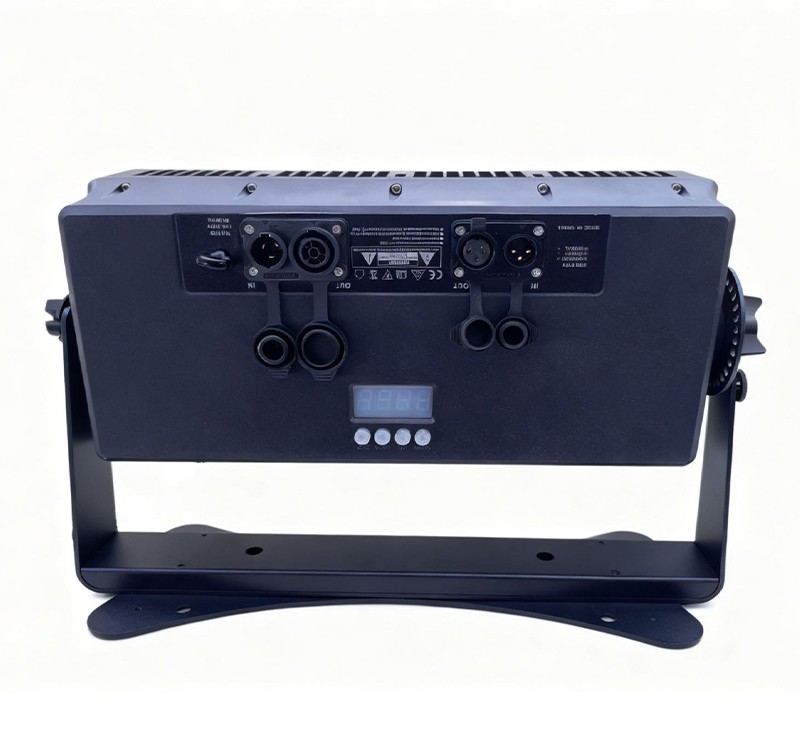

| Effect Capability | Programmable for thousands of custom effects | Connectors | Full Xishang-type connectors, power & signal in/out |
| Housing | Die-cast aluminum, high-quality construction | IP Rating | IP65 waterproof |
| Net Weight (Fixture) | 10.9 kg | Single Carton Packing | 560 × 240 × 390 mm, 12.7 kg |
| Double Packing (2 pcs) | 580 × 510 × 415 mm, 28 kg |
Details & Features
Frequently Asked Questions
Is the PBF1212 truly rated for outdoor use?
Yes. The PBF1212 is IP65-rated, built for direct exposure to rain and outdoor conditions without needing a rain cover.
Can the PBF1212 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with selectable 6 CH, 16 CH, or 48 CH modes, and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
What's the difference between the white segments and the RGB segments?
The 12 white segments handle the primary strobe output, while the 12 RGB segments run as a separate, independently controllable color layer — allowing designers to combine or contrast white flashes with colored effects.
Does the LED source need to be replaced like a traditional lamp?
No. The PBF1212 uses LEDs with no scheduled lamp replacement cycle required under normal use, unlike traditional discharge-lamp fixtures.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
