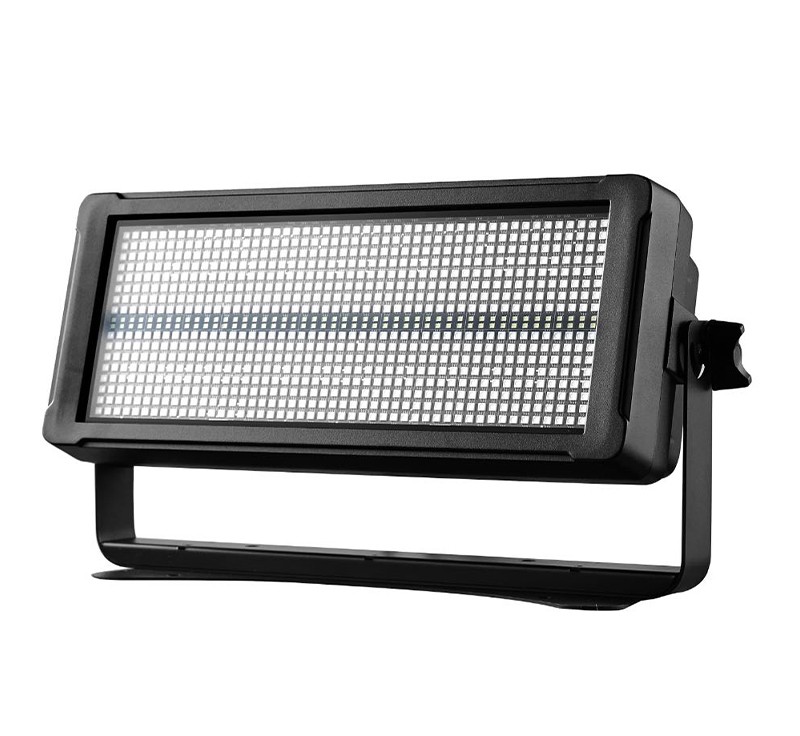

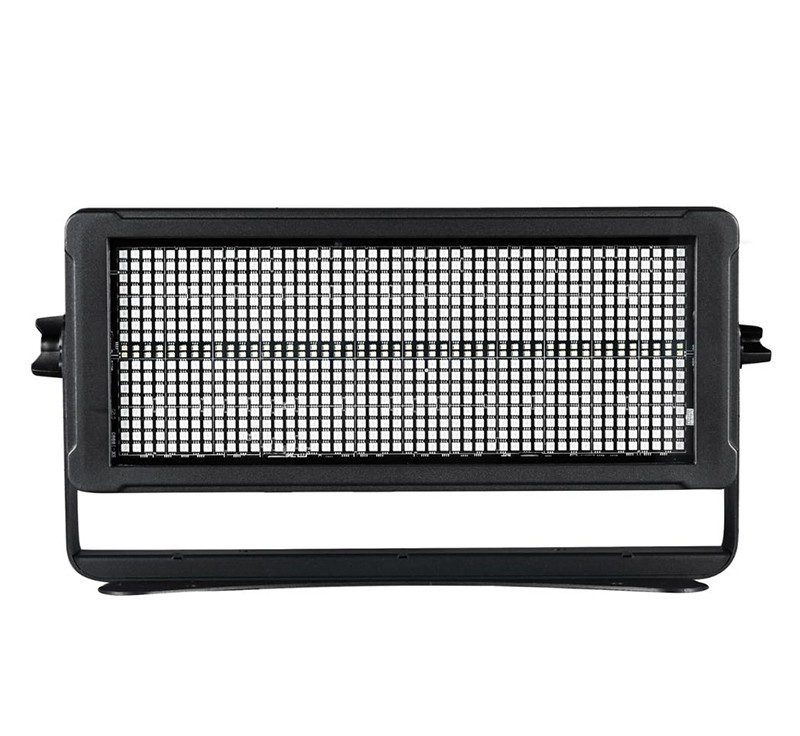

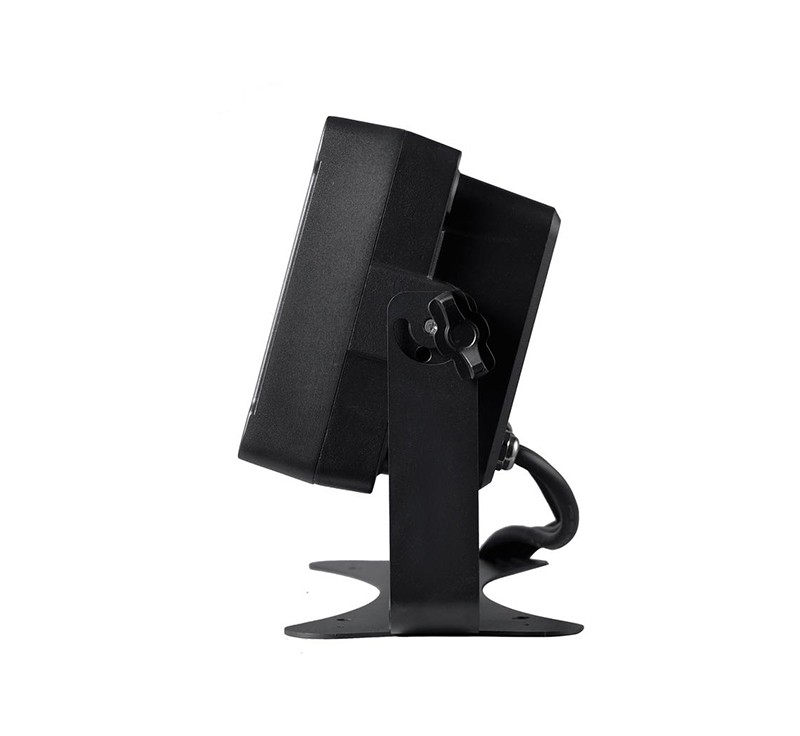

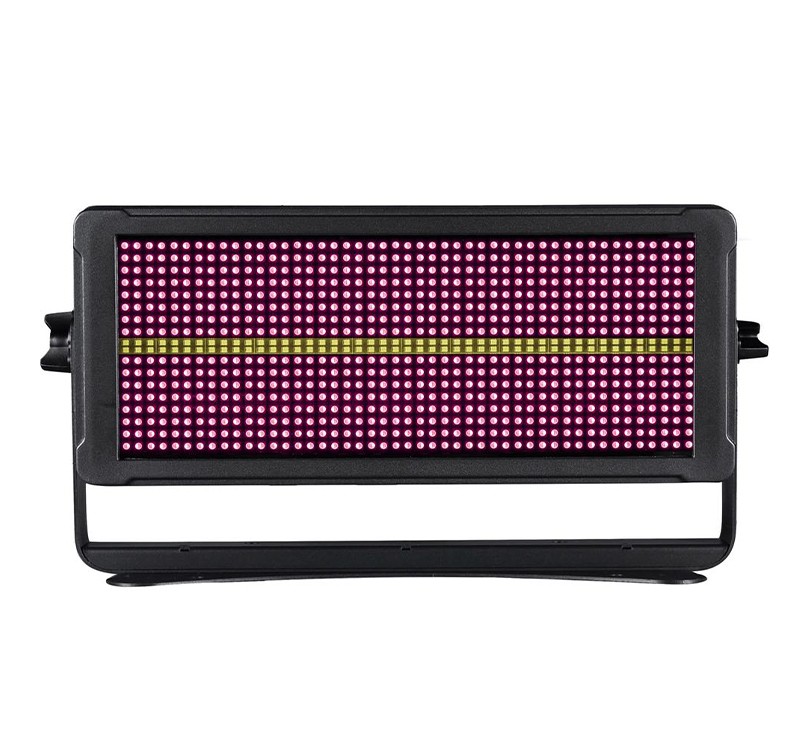

DMON PAF48 (48+12) Segment IP68 Waterproof LED Strobe Light
The Dmon PAF48 is an IP68-rated fully waterproof LED strobe light with selectable 48+12 or 12+12 segment configurations, combining wash and strobe effects across 768 RGB and 96 white LEDs. With DMX512/Sound Active control and 32-bit ultra-smooth dimming, the PAF48 delivers detailed segmented effects built for fully waterproof outdoor use.
- IP68 fully waterproof — the highest level of protection, suited for sustained submersion-level exposure
- Selectable segment configurations (48+12 or 12+12) — choose the resolution that matches your show's needs
- Wash + Strobe combined effect — two functions in one fixture
- Full die-cast aluminum housing — durable construction for demanding outdoor use
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Most outdoor fixtures top out at IP65 or IP66, protecting against rain but not standing water or submersion. The PAF48's IP68 rating gives it a wider safety margin for installations near fountains, pools, or areas prone to flooding.
Different shows call for different levels of pixel control. The PAF48 offers a choice between 48+12 and 12+12 segment configurations, so operators can match the fixture's resolution to the show without overpaying for control they don't use.
Application Scenarios
Specification
| LED Configuration | 768 × 0.5W RGB LEDs; 96 × 3W White LEDs | Segment Structure | 48 RGB segments + 12 White strobe segments / 12 RGB segments + 12 White strobe segments |
| Input Voltage | AC 100–240V, 50/60Hz | Power Consumption | 500W |
| Control Modes | DMX512, Auto, Master-Slave, Sound Active | DMX Channels | 6 / 13 / 18 / 78 / 156 / 158 CH |
| Dimming | 32-bit ultra-smooth linear dimming 0–100% | Strobe Frequency | 1–30 Hz |
| Function | Wash + Strobe combined effect | Operating Temperature | -30°C to +60°C |
| Housing | Full die-cast aluminum, black finish | Connection | DMX512 input/output, Power input/output |
| IP Rating | IP68 (fully waterproof) | Flight Case Packing | 4 pcs/flight case with compartments |
| Flight Case Size | 820 × 560 × 440 mm | Flight Case + Fixtures Weight | 55 kg |
Frequently Asked Questions
What does the IP68 rating mean compared to lower ratings?
IP68 offers protection against dust and prolonged or continuous submersion, going beyond the rain protection of IP65/IP66-rated fixtures — suited for installations near water features or areas prone to flooding.
Can the PAF48 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with multiple selectable channel modes (6 CH up to 158 CH), compatible with any DMX-compliant console on the market.
What's the difference between the 48+12 and 12+12 segment configurations?
The 48+12 configuration offers finer RGB pixel-level control, while the 12+12 configuration provides simpler, broader segment control. Confirm your preferred configuration at the time of order.
Does the LED source need to be replaced like a traditional lamp?
No. The PAF48 uses LEDs with no scheduled lamp replacement cycle required under normal use, unlike traditional discharge-lamp fixtures.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
