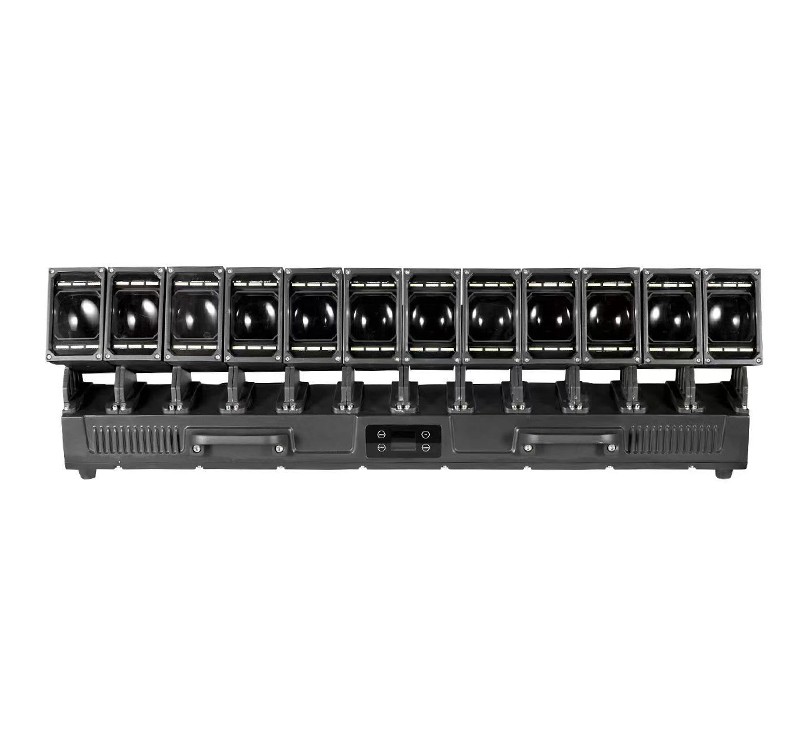

DMON LP1260F Outdoor Waterproof Linear Moving Arm Beam Light (12×60W RGBW)
The Dmon LP1260F is an IP65-rated outdoor waterproof linear moving arm beam light combining a 12×60W RGBW array with dual-color (white + golden) auxiliary lighting. With individual arm swing movement and up to 329 DMX channels, the LP1260F produces dynamic, wave-like array effects built to withstand direct outdoor exposure.
- IP65 rated with waterproof connectors — true outdoor protection, no rain cover required
- Individual arm swing movement — dynamic array effects beyond a fixed linear bar
- Dual-color (white + golden) auxiliary lighting — layered visual effects beyond the main RGBW array
- Up to 329 DMX channels — fine-grained control for complex pixel-mapped shows
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Most fixtures are built for indoor use and need a rain cover the moment a show moves outdoors. The LP1260F is IP65 from the factory, with waterproof power connectors throughout, built to sit in an exposed outdoor rig through wind and rain without extra weatherproofing or downtime.

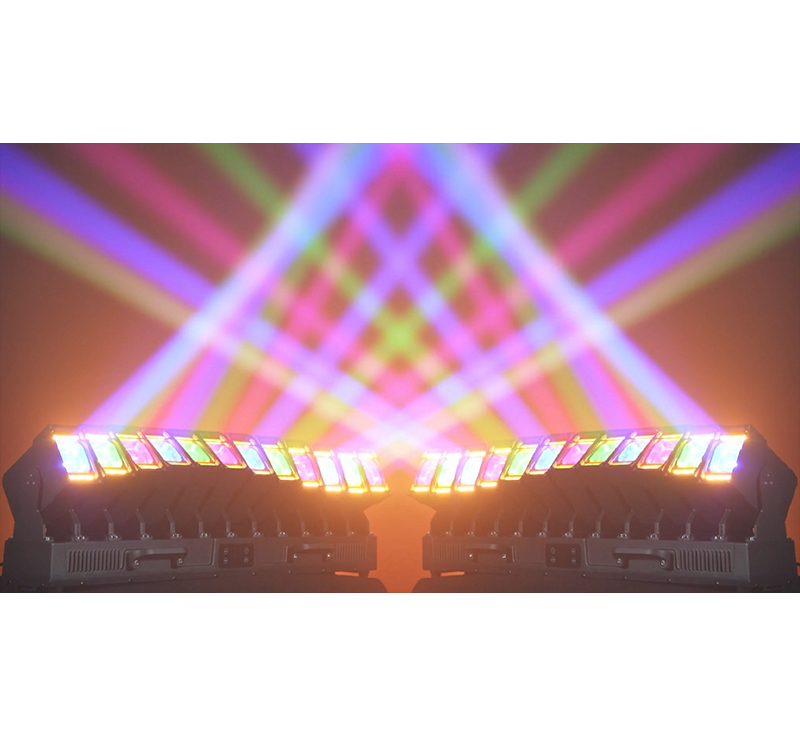

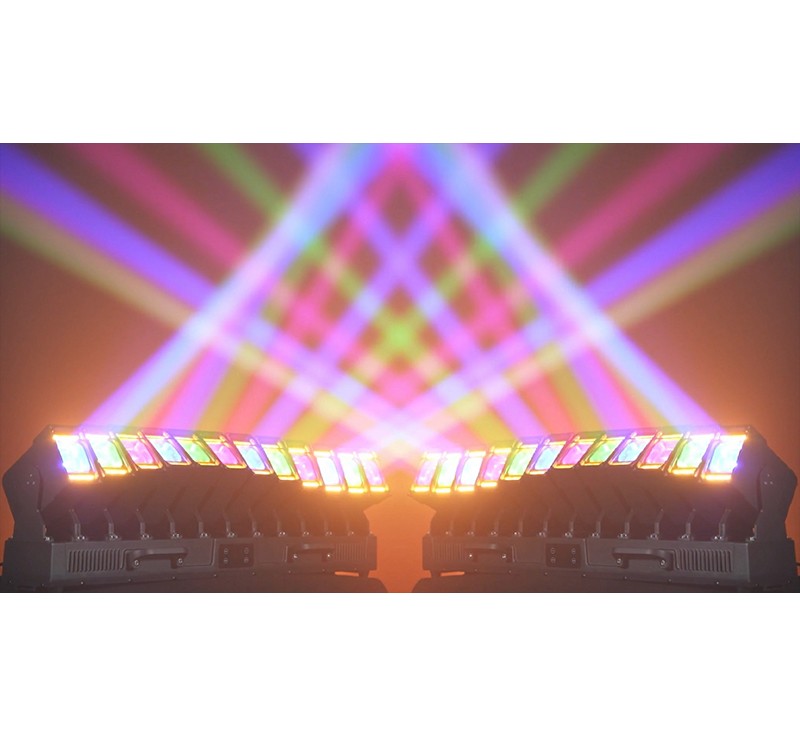

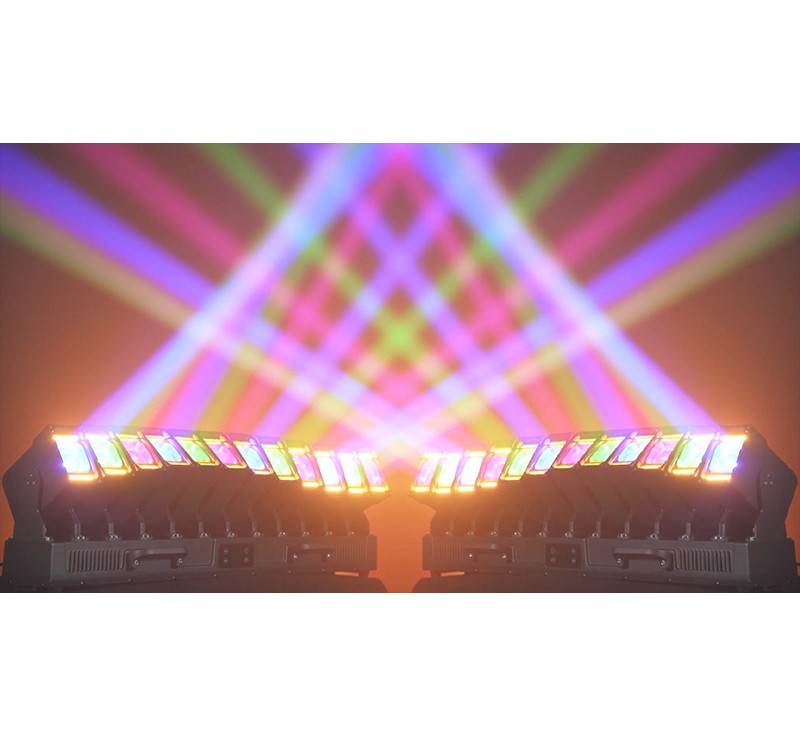

A fixed linear bar produces the same straight-line look regardless of the show. The LP1260F's individual arm swing movement lets each unit move independently, creating dynamic wave-like array effects across a row of fixtures that a static bar can't replicate.
Application Scenarios
Specification
| Main Light Source | 12 × 60W RGBW 4-in-1 LED | Auxiliary Light Source | Dual-color auxiliary LEDs (White + Golden) |
| Input Voltage | AC 100–240V, 50/60Hz | Power Consumption | 850W |
| Control Modes | DMX512 / Auto / Master-Slave / Sound / RDM | DMX Channels | 26 / 59 / 128 / 182 / 314 / 329 CH |
| Dimming | 32-bit ultra-smooth linear dimming 0–100% | Strobe Frequency | 1–30Hz |
| Movement | Individual arm swing movement | Software Upgrade | DMX firmware upgrade supported |
| Working Temperature | -30°C to 50°C | Housing | Metal, black finish |
| Connections | DMX512 In/Out, Waterproof Power In/Out | IP Rating | IP65 |
Details & Features
What's in the Box
- • DMON LP1260F Moving Arm Light (12 × 60W RGBW LED)
- • Signal Cable
- • Power Cable
- • Hanging Clamp
- • User Manual
Flight case available as an optional accessory.
Frequently Asked Questions
Is the LP1260F truly rated for outdoor use?
Yes. The LP1260F is IP65-rated with waterproof power connectors, built for direct exposure to rain and outdoor conditions without an additional rain cover.
What does the individual arm swing movement let me do?
Each fixture's arm can swing independently, so a row of LP1260F units can create wave-like array effects across a rig — an effect a fixed linear bar can't produce on its own.
Can the LP1260F be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with multiple selectable channel modes (26 CH up to 329 CH), and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
Can firmware be updated in the field?
Yes. Firmware updates can be pushed directly via the DMX line, without needing to send the unit back to the factory.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
