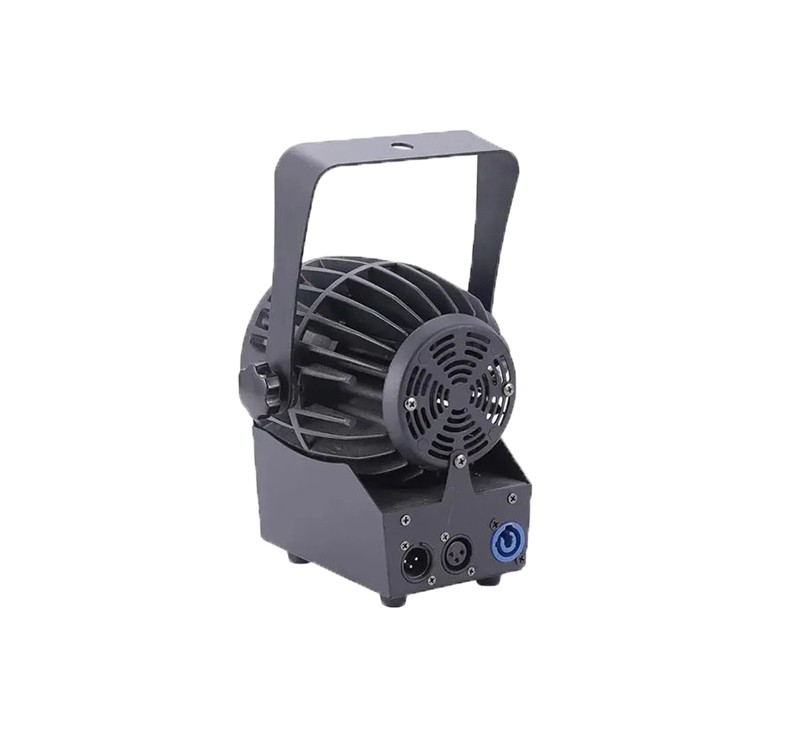

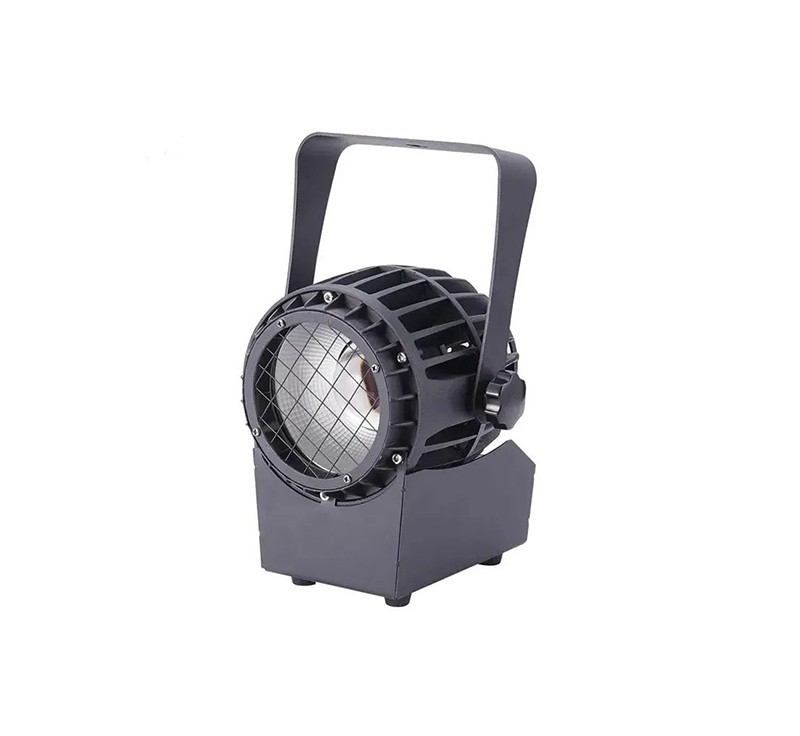

DMON CF150 Outdoor Mini 150W COB LED Front Light
The Dmon CF150 is an IP68-rated outdoor mini 150W COB LED front light with switchable cool white or warm white output. With efficient heat dissipation and DMX512/Sound Active/Master-Slave control, the CF150 delivers high-output, uniform illumination built for the most demanding outdoor conditions.
- IP68 rated — the highest level of water and dust protection for sustained outdoor exposure
- 150W COB output — high-intensity, uniform illumination from a compact fixture
- Switchable cool/warm white — matches different lighting needs without gels
- Sound-active mode — runs standalone without a DMX console when needed
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Most outdoor fixtures top out at IP65 or IP66, protecting against rain but not standing water or submersion. The CF150's IP68 rating gives it a wider safety margin for installations near fountains, pools, or areas prone to flooding.
Switching between warm and cool lighting usually means swapping gels or fixtures. The CF150 offers a direct choice between cool white and warm white output, so operators can match the venue's lighting needs without extra accessories.
Application Scenarios
Specification
| Light Source | 1 × 150W high-power COB LED | Color Options | Cool White / Warm White |
| Power Supply | AC 100–240V, 50/60Hz | Power Consumption | 200W |
| Control Modes | DMX512, Auto, Sound active, Master-Slave | DMX Channels | 4 CH |
| Dimming | 0–100% linear electronic dimming | Strobe | 0–25 flashes/sec |
| Housing | High-quality lamp housing with efficient heat dissipation system | Brightness | High-output, uniform illumination |
| IP Rating | IP68 (waterproof) | Operating Temperature | -20°C to +50°C (outdoor use) |
Details & Features
What's in the Box
- • Hanging Clamp
- • Safety Cable
- • User Manual
Frequently Asked Questions
Is the CF150 truly rated for outdoor use?
Yes. The CF150 is IP68-rated, offering the highest level of protection against dust and prolonged or continuous submersion — suited for installations near water features or areas prone to flooding.
Can the CF150 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with 4 channels, compatible with any DMX-compliant console on the market.
Can this fixture run without a DMX console?
Yes. Sound-active mode reacts to music input, and Auto mode cycles through preset looks on its own — useful for setups without a dedicated lighting operator.
Does the LED source need to be replaced like a traditional lamp?
No. The CF150 uses a COB LED source with no scheduled lamp replacement cycle required under normal use, unlike traditional discharge-lamp fixtures.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
