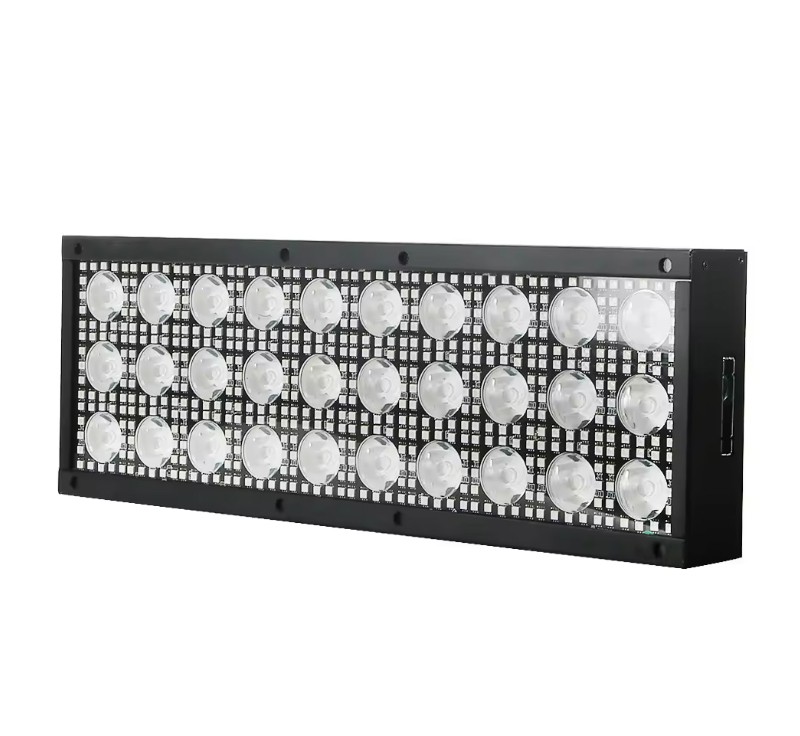

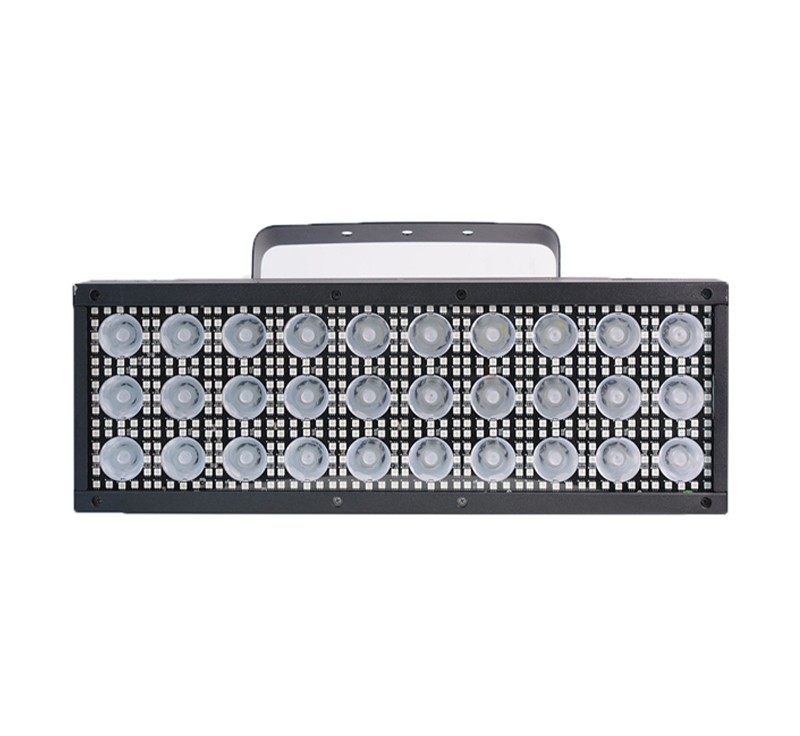

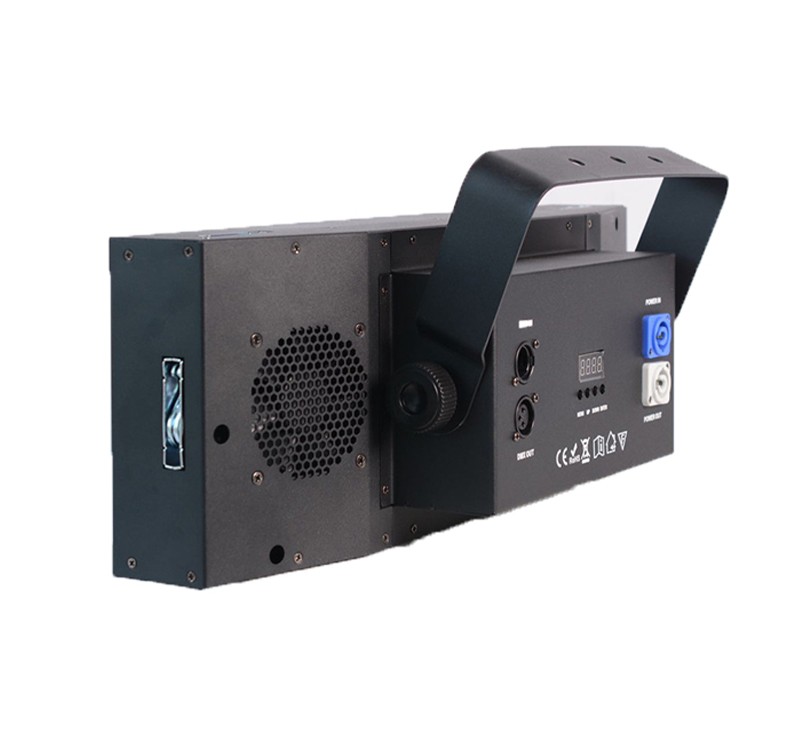

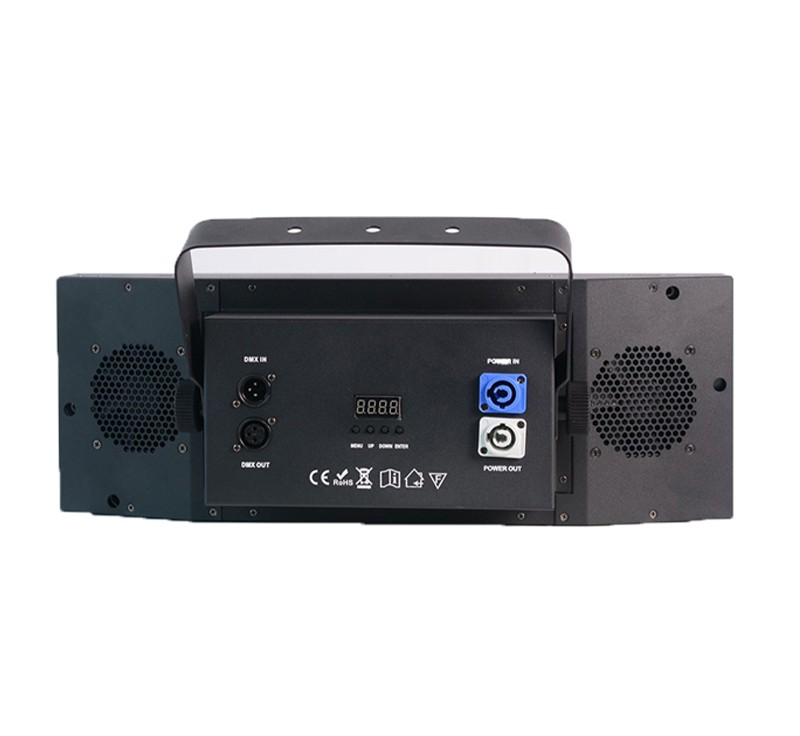

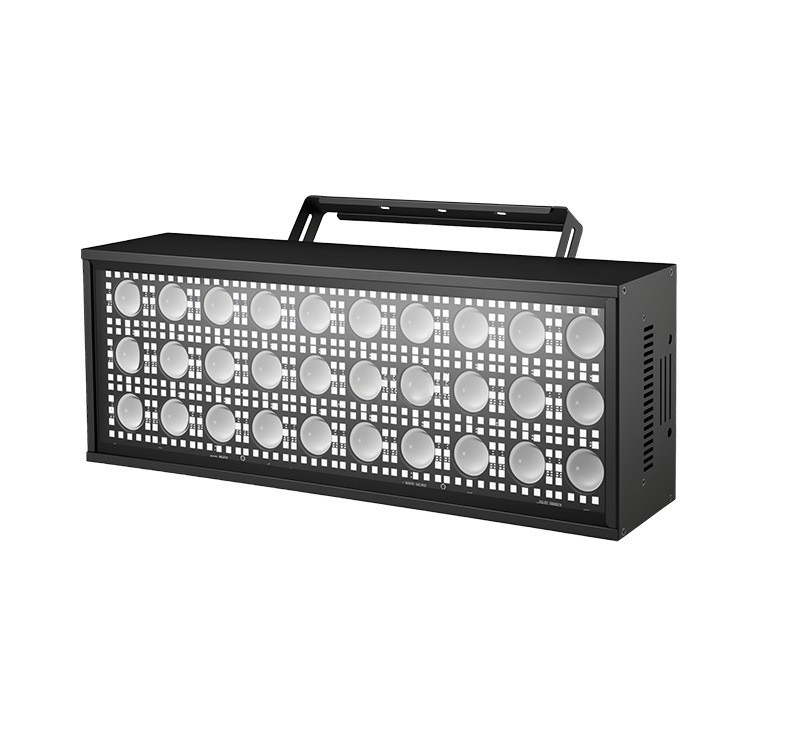

DMON PJ3010 30-Cell LED Matrix Strobe Light
The Dmon PJ3010 is a 30-cell LED matrix strobe light combining 30 primary RGB LEDs with 480 auxiliary pixel LEDs, delivering beam effects, explosion flash, and XY infinite effects. With flicker-free, camera-safe PWM dimming and DMX512/RDM control, the PJ3010 is built for performance and cultural tourism productions where both live audiences and cameras need clean output.
- Beam, explosion flash, and XY infinite effects — built-in signature looks beyond a standard strobe flash
- Camera-safe PWM dimming (10kHz refresh rate) — flicker-free output for filmed and broadcast performances
- Dual-layer LEDs (30 main + 480 auxiliary) — layered beam and background lighting from one fixture
- RDM support — remote monitoring and status checks from the console
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Cultural and tourism performances are often filmed for promotional content, where visible flicker on camera is a real problem. The PJ3010's PWM dimming runs at a 10kHz refresh rate, keeping output flicker-free for both live audiences and camera crews.
A standard strobe only produces a flat flash effect. The PJ3010 adds built-in beam, explosion flash, and XY infinite effect programs, giving designers signature looks without needing to program them from scratch.
Application Scenarios
Specification
| LED Configuration | 30 × 10W RGB LEDs (SMD 3535); 480 × 0.5W RGB auxiliary LEDs (SMD 5050) | Input Voltage | AC 100–240V, 50/60Hz |
| Power Consumption | 450W | Control Modes | DMX512, Auto, Master-Slave, Sound Active, RDM |
| DMX Channels | 11CH / 120CH | Dimming | Flicker-free PWM dimming, 10kHz refresh rate (camera-safe) |
| Effect Functions | Beam effects, explosion flash, XY infinite effects, auxiliary lighting | Housing | Metal housing, black finish |
| Application | Performances, cultural tourism projects | Packing Size | 500 × 180 × 240 mm |
| Net Weight | 6.2 kg |
Details & Features
Frequently Asked Questions
Can the PJ3010 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with selectable 11 CH or 120 CH modes, and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
Is this fixture suitable for filmed performances?
Yes. The PJ3010's dimming runs at a 10kHz PWM refresh rate, keeping output flicker-free for camera and broadcast use.
What are the built-in effect modes?
The PJ3010 includes beam effects, explosion flash, and XY infinite effects as built-in programs, alongside standard auxiliary lighting control.
Does the LED source need to be replaced like a traditional lamp?
No. The PJ3010 uses LEDs with no scheduled lamp replacement cycle required under normal use, unlike traditional discharge-lamp fixtures.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
