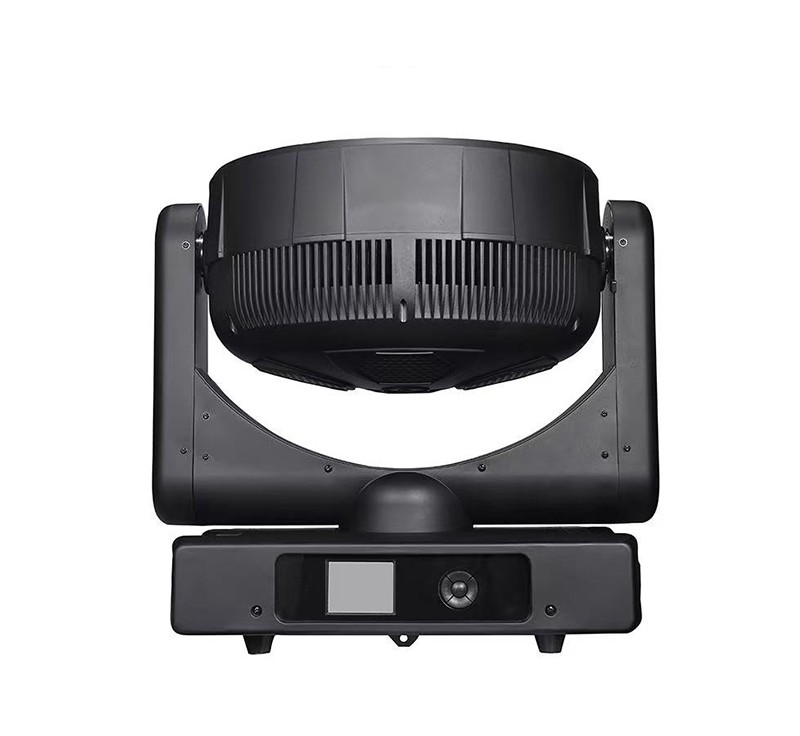

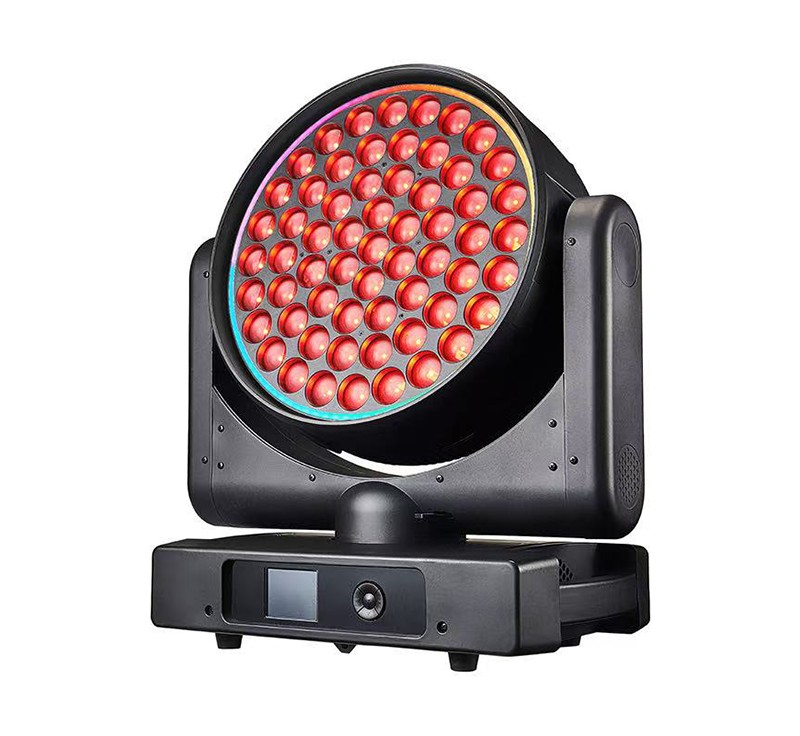

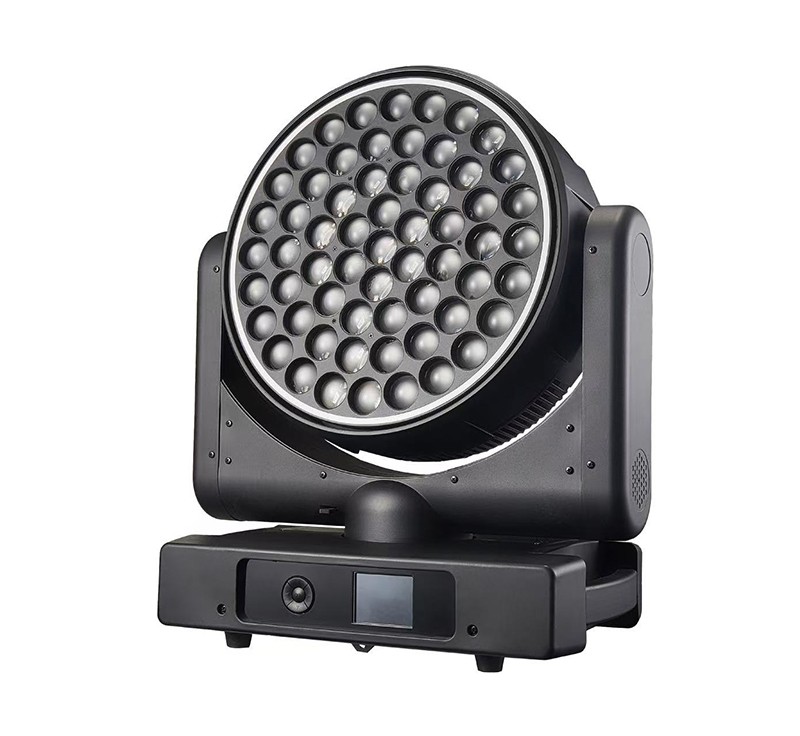

DMON LM6130W 61×30W RGBW Pixel Zoom Wash Effect Moving Head Light
The Dmon LM6130W is a flagship RGBW pixel wash moving head light with a 61-pixel main array plus two layers of auxiliary aura pixels (459 individually controllable points total). With Art-Net support, up to 265 DMX channels, and flicker-free dimming, the LM6130W is built for large-scale visual productions that need pixel-level control across multiple visual layers.
- 459 individually controllable pixels across main and auxiliary layers — complex multi-layer visual effects from one fixture
- Art-Net support alongside DMX512/RDM — integrates with media servers and advanced lighting networks
- 5°–48° motorized zoom — adjusts wash coverage without swapping fixtures
- Flicker-free dimming (1.2–25 kHz) — camera-ready output for broadcast and video work
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
A single-layer pixel array limits how complex an effect can look. The LM6130W adds two layers of auxiliary aura pixels — 366 inner and 93 outer — around its 61-pixel main array, so designers can run separate effects across three independently controlled zones on the same fixture.
Complex pixel-mapped shows often outgrow standard DMX bandwidth. The LM6130W supports Art-Net alongside DMX512, giving productions with media servers or large pixel-mapping setups a network protocol built for higher data throughput.
Application Scenarios
Specification
| Main Light Source | 61 × 30W RGBW LEDs (6065 package) | LED Lifetime | ≥30,000 hours |
| Inner Auxiliary LEDs | 366 × 0.2W RGB LEDs (3535) | Outer Auxiliary LEDs | 93 × 0.2W RGB LEDs (5050) |
| Input Voltage | AC 100–240V, 50/60Hz | Power Consumption | 2000W |
| Zoom Range | 5°–48° DMX linear motorized zoom | Color Mixing | RGBW infinite mixing with built-in CTO linear adjustment |
| Dimming | 0–100% linear dimming with adjustable gamma (1.2K–25K), flicker-free for camera use | Strobe | 0.3–25 Hz electronic strobe; sync / async / random modes |
| Pan / Tilt | 540° / 270° (16-bit precision scanning) | Motors | Reinforced silent three-phase motors with magnetic encoder positioning and auto reset |
| Pixel Control | Individual pixel control for main LEDs and auxiliary aura LEDs | Control Protocols | DMX512, RDM, Art-Net |
| DMX Channel Modes | 21CH (Basic) / 49CH / 204CH / 232CH / 265CH (Advanced) | Display | 2.8" touch TFT display, CN/EN menu, temperature & error display |
| Cooling | Copper heat-pipe cooling system with intelligent fan speed control and overheat protection | Operating Temperature | -10°C to 45°C |
| Upgrade Interface | USB upgrade port | Net Weight | 30 kg |
| Gross Weight | 32 kg | Carton Packing | 630 × 530 × 645 mm |
Details & Features
What's in the Box
- • DMON LM6130W Moving Head (61 × 30W RGBW LED)
- • Signal Cable
- • Power Cable
- • Omega Clamp
- • User Manual
Flight case available as an optional accessory.
Frequently Asked Questions
Can the LM6130W be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with multiple selectable channel modes (21 CH up to 265 CH in Advanced mode), and supports bi-directional RDM as well as Art-Net, compatible with a wide range of consoles and media servers.
What's the difference between the main array and the auxiliary aura LEDs?
The 61-pixel main array handles the primary output, while the inner (366) and outer (93) auxiliary RGB LEDs run as separate, independently controllable layers for additional aura and ring effects.
Does the LED source need to be replaced like a traditional lamp?
No. The LM6130W uses RGBW LEDs rated for ≥30,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Can firmware be updated in the field?
Yes. The fixture includes a USB upgrade port for firmware updates without needing to send the unit back to the factory.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
