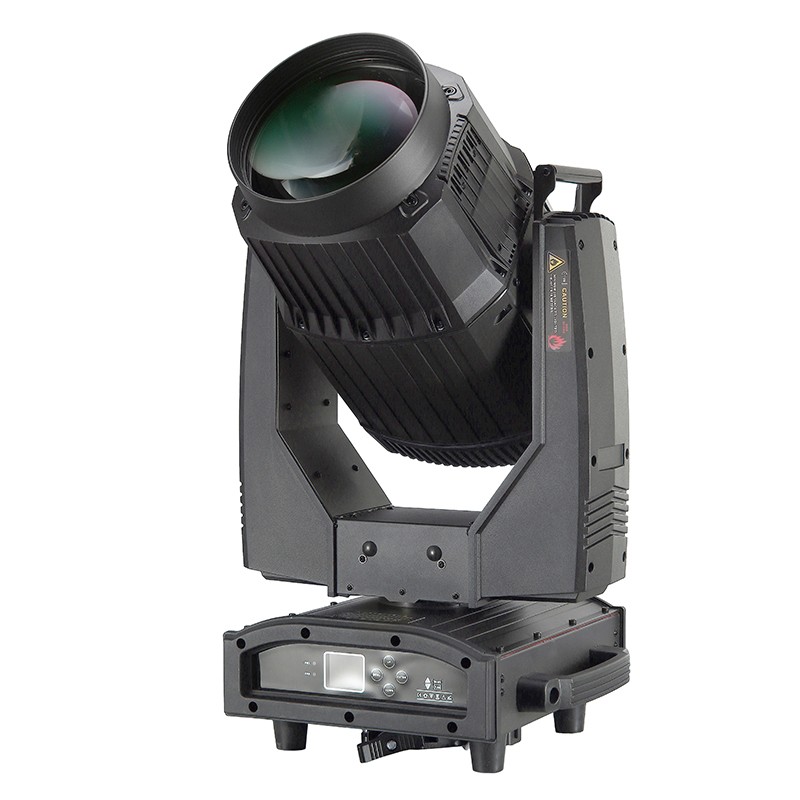

DMON B480F 480W IP65 Beam Moving Head Light with USHIO Lamp
The B480F 480W IP65 Beam Moving Head Light uses a 450W USHIO lamp, a 180 mm front lens and a narrow 1.8° beam angle for tight, defined beam effects. With an IP65-rated housing, dual rotating prisms, color and gobo effects, it is designed for outdoor stages, concerts, festivals and touring productions.
- 480W IP65 beam moving head — designed for outdoor stages and event productions
- 450W USHIO lamp — 4,000-hour rated lamp life
- 1.8° narrow beam with 180 mm lens — for tight and defined beam effects
- 8-facet + 16-facet rotating prisms — more options for aerial beam effects
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
The B480F 480W IP65 Beam Moving Head Light uses a 450W USHIO lamp, a 180 mm optical lens and a narrow 1.8° beam angle. This optical combination produces a tight, defined beam for concerts, festivals, touring shows and other large-stage applications.
For effect programming, the B480F features 14 colors + open white, 14 gobos + 2 glass gobos, together with an 8-facet prism and a 16-facet prism. Both prisms support bi-directional rotation with adjustable speed. Linear focus and an independent frost effect give operators more flexibility when switching between sharp beam effects and softer looks.
The IP65-rated housing is designed for indoor and outdoor stage use. Automatic XY position correction, lamp-hour monitoring and automatic fan speed control also make daily operation and maintenance easier, especially for rental and touring applications where fixtures are used frequently.
Application Scenarios
Specification
| Light Source | 450W USHIO lamp | Lamp Lifetime | 4,000 hours |
| Input Voltage | AC 110–240V, 50/60Hz | Power Consumption | 700W |
| Front Lens Diameter | 180 mm | Beam Angle | 1.8° |
| Color Wheel | 14 colors + open white; bi-directional rainbow effect, split-color effect and linear adjustment | Gobo Wheel | 14 gobos + 2 glass gobos; bi-directional rotation, adjustable speed and gobo shake |
| Prism System | 8-facet prism + 16-facet prism; bi-directional rotation with adjustable speed | Focus | 0–100% linear focus |
| Frost | Independent frost effect for a soft, natural beam | Dimming | 0–100% mechanical linear dimming |
| Strobe | 1–25 Hz, adjustable speed | Pan / Tilt | 540° / 270°; XY reverse and adjustable movement speed |
| Control Modes | Auto, Sound Active, Master/Slave, DMX512 | DMX Channels | 16CH |
| Position Correction | Automatic XY position correction | Optical System | High-precision cemented optical lens with multi-layer coating |
| Display Functions | Fixture information and lamp operating-hour display for maintenance | Cooling | Automatic fan speed adjustment |
| Power-Saving Function | Lamp power automatically reduced by 50% during mechanical blackout | Housing Material | Aluminum alloy + high-temperature and UV-resistant engineering plastic |
| IP Rating | IP65 | Fixture Size | 376 × 320 × 672 mm |
| Net Weight | 28 kg | Packing Size | 690 × 600 × 485 mm |
| Gross Weight | 33 kg |
Details & Features
What's in the Box
- • Moving Head unit
- • Integrated Folding Hanging Clamp
- • Safety Cable
- • User Manual
Standard carton packing; flight case available as an optional accessory.
Frequently Asked Questions
What light source does the B480F use?
The B480F uses a 450W USHIO lamp with a rated lifetime of 4,000 hours.
Is the B480F suitable for outdoor use?
Yes. The B480F is designed with an IP65-rated housing, making it suitable for outdoor stages, concerts, festivals and touring applications.
What is the beam angle of the B480F?
The fixture has a narrow 1.8° beam angle with a 180 mm front lens, producing a concentrated beam effect for larger stages and longer projection distances.
What prism effects are included?
The B480F includes an 8-facet prism and a 16-facet prism. Both support bi-directional rotation with adjustable speed.
What color and gobo effects does it have?
It features 14 colors plus open white, as well as 14 gobos plus 2 glass gobos. The gobo wheel supports bi-directional rotation, adjustable speed and gobo shake.
Can I check the lamp operating hours?
Yes. Lamp operating hours can be viewed directly on the display, which makes it easier to plan routine maintenance and lamp replacement.
What control modes does the B480F support?
The B480F supports DMX512, Auto, Sound Active and Master/Slave modes, with a 16-channel DMX mode.
