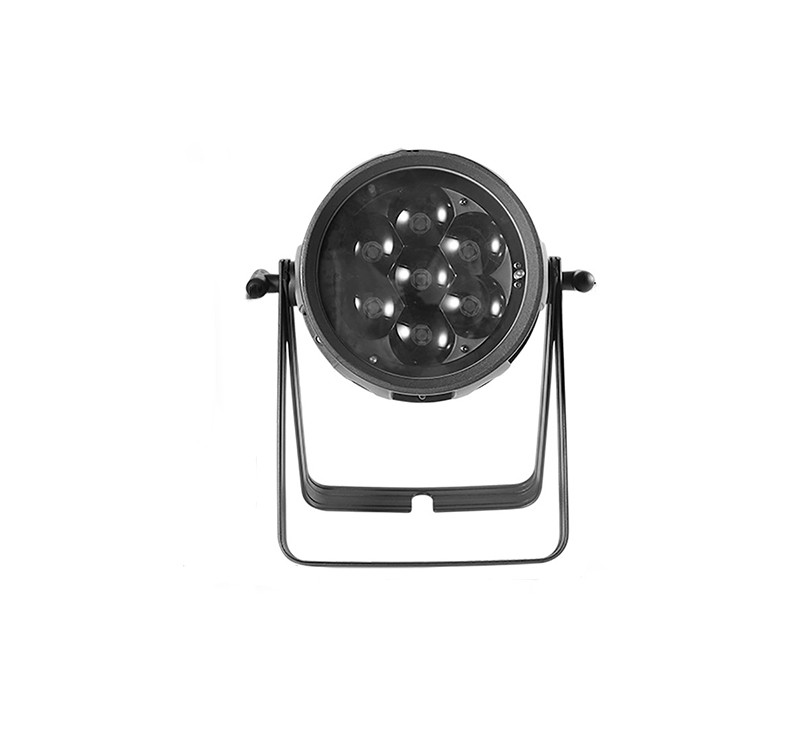

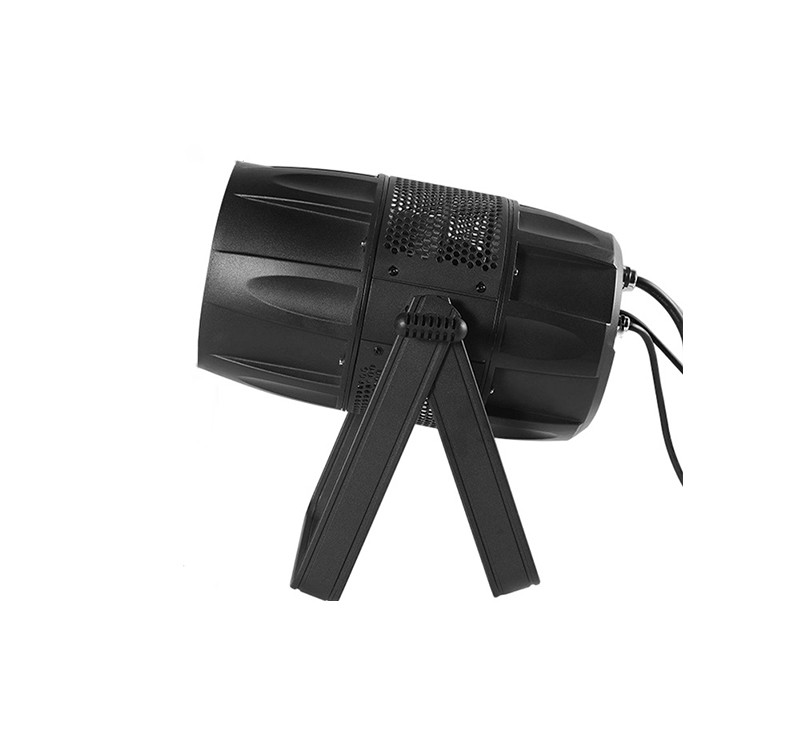

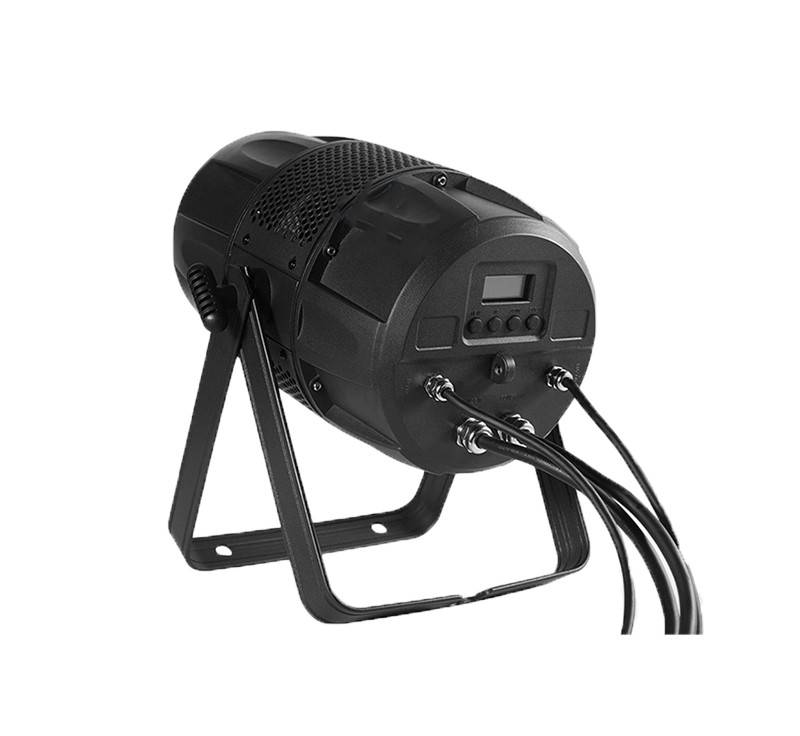

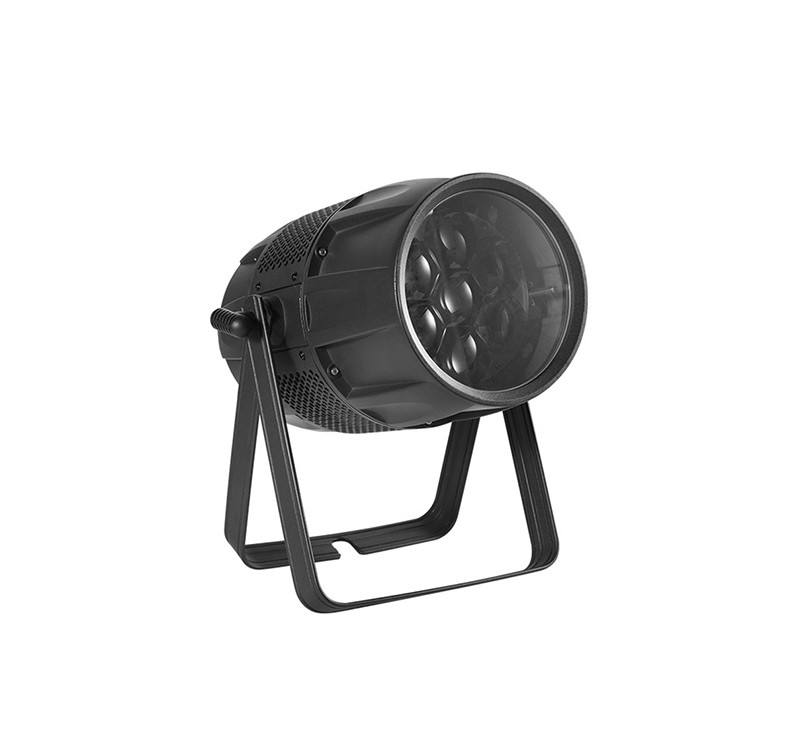

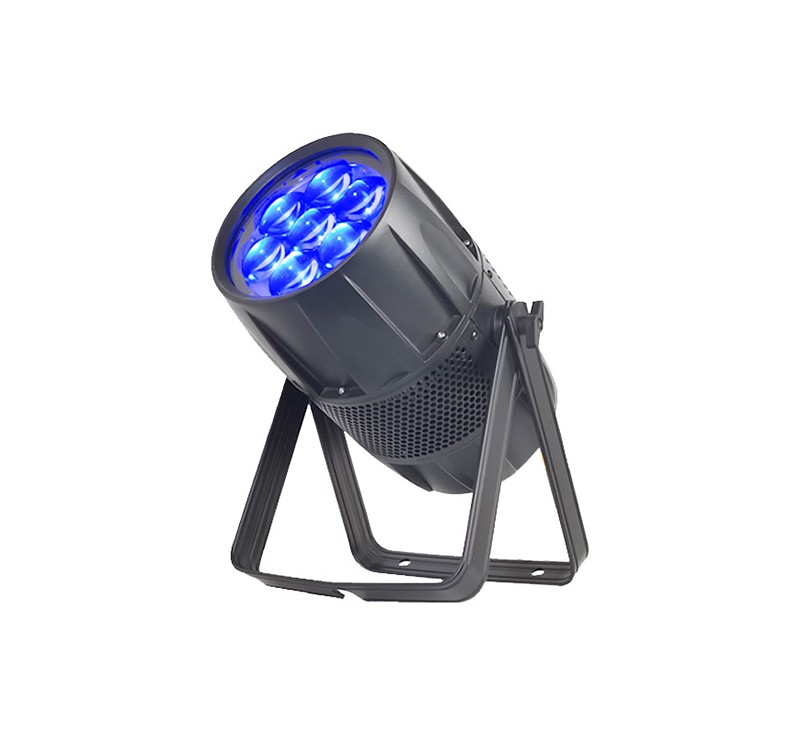

DMON PT740S 7×40W LED COB Waterproof Zoom PAR Light
The Dmon PT740S is a 7×40W RGBW waterproof zoom PAR light with 10°–40° electronic zoom and fanless natural convection cooling for silent operation. With independent RGBW dimming, on-site scene editing, and DMX512/Master-Slave/Sound control, the PT740S delivers adjustable color washing built for outdoor IP65 conditions.
- 10°–40° electronic zoom — adjusts beam width without swapping lenses or fixtures
- Fanless natural convection cooling — silent operation with no moving parts to fail
- Independent RGBW dimming (0–255 levels) — precise color control beyond preset mixing
- On-site scene editing (30 scenes per sub-program) — build custom looks without a full DMX console
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
A fixed beam angle limits a fixture to one look. The PT740S's 10°–40° electronic zoom lets operators adjust beam width on the fly, covering both tight and wide areas without rigging a different fixture.
Fan-cooled fixtures can introduce audible noise in quiet venues, and moving parts eventually wear out. The PT740S uses natural convection cooling with no fan, keeping operation silent and reducing one more component that could fail over time.
Application Scenarios
Specification
| LEDs | 7 × 40W RGBW 4-in-1 LEDs | LED Lifetime | 50,000 hours |
| Input Voltage | AC 100–240V, 50/60Hz | Rated Power | 300W |
| Zoom Range | 10°–40° linear electronic zoom | Secondary Optics | High-transmittance acrylic lens |
| Beam/Field (Secondary Optics) | 25° | Color Mixing | RGBW linear mixing, 16.7 million colors |
| CCT Correction | 3200K–7200K linear adjustment | Per-color Control | RGBW independent dimming, 0–255 levels |
| Dimming | 0–100% independent electronic linear dimming, 16-bit | Dimming Curves | 4 selectable dimming curve modes |
| Strobe | Electronic strobe up to 25Hz; random / pulse / sync / async strobe modes | Effects | Multi-strobe effects + color rainbow function |
| Protocol | DMX512 | Modes | DMX / Master-Slave / Sound / Auto |
| DMX Channel Modes | 16CH / 20CH / 30CH | Menu | LED digital display |
| Scene Editing | On-site editable; each sub-program supports up to 30 scenes | Housing Material | One-piece die-cast aluminum alloy (high thermal conductivity) |
| Finish | High-temperature baked paint (standard black; other colors optional) | Signal Connection | 3-pin XLR input/output |
| Protection | Over-current / over-voltage / over-temperature; temperature sensor for smart power adjustment | Cooling | Natural convection cooling (no fan) |
| Working Position | Any safe mounting position | Working Temperature | -10°C to 45°C |
| Ingress Protection | IP65 | Fixture Size | 382 × 280 × 249 mm |
| Net Weight | 10.0 kg |
Details & Features
What's in the Box
- • Hanging Clamp
- • Safety Cable
- • User Manual
Frequently Asked Questions
Can the PT740S be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with selectable 16 CH, 20 CH, or 30 CH modes, compatible with any DMX-compliant console on the market.
What does on-site scene editing let me do?
Operators can build and save up to 30 custom scenes per sub-program directly on the fixture, without needing a full DMX console to program looks in advance.
Is the PT740S truly rated for outdoor use?
Yes. The PT740S is IP65-rated, built for direct exposure to rain and outdoor conditions without needing a rain cover.
Does the LED source need to be replaced like a traditional lamp?
No. The PT740S uses LEDs rated for 50,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
