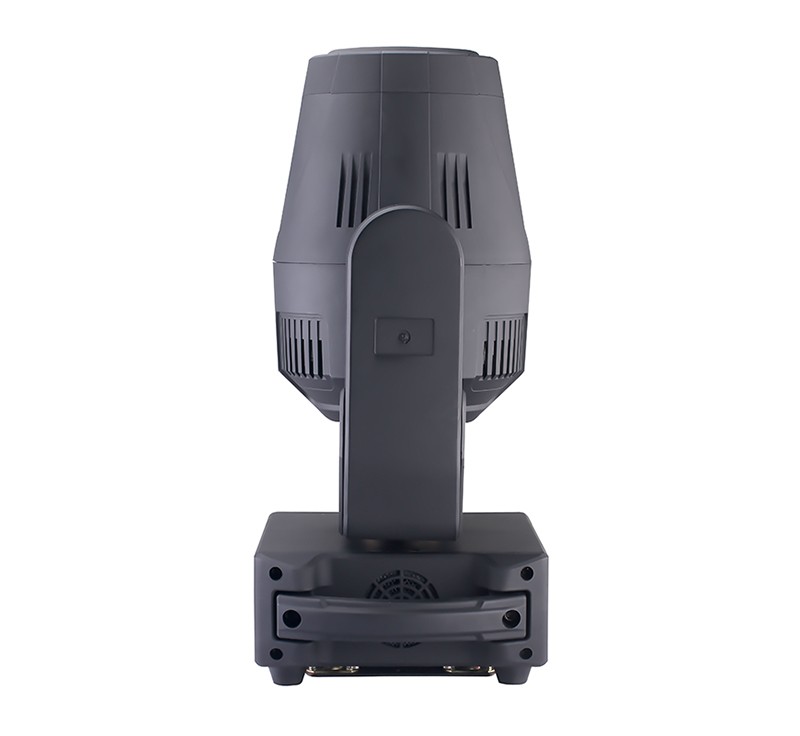

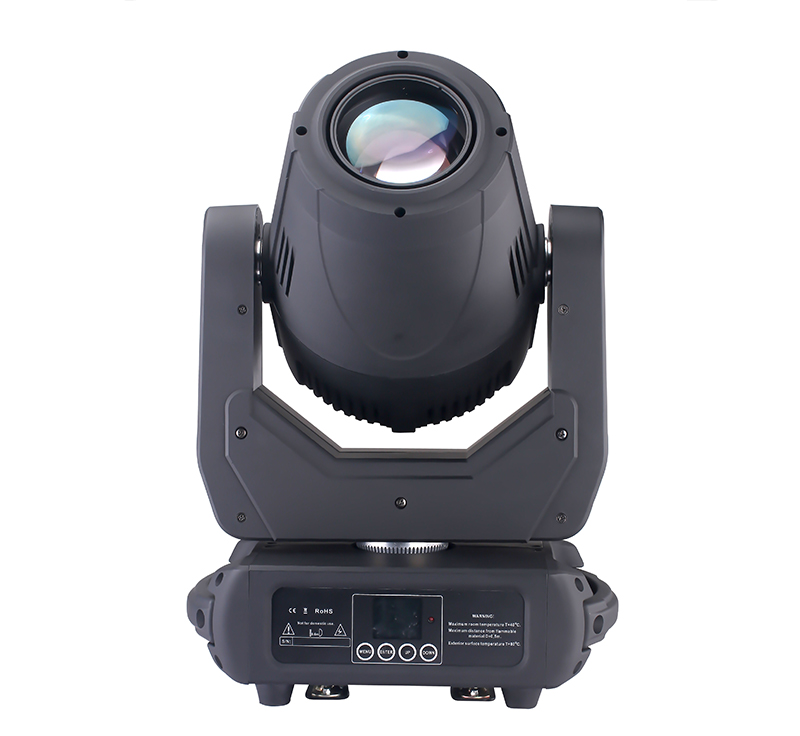

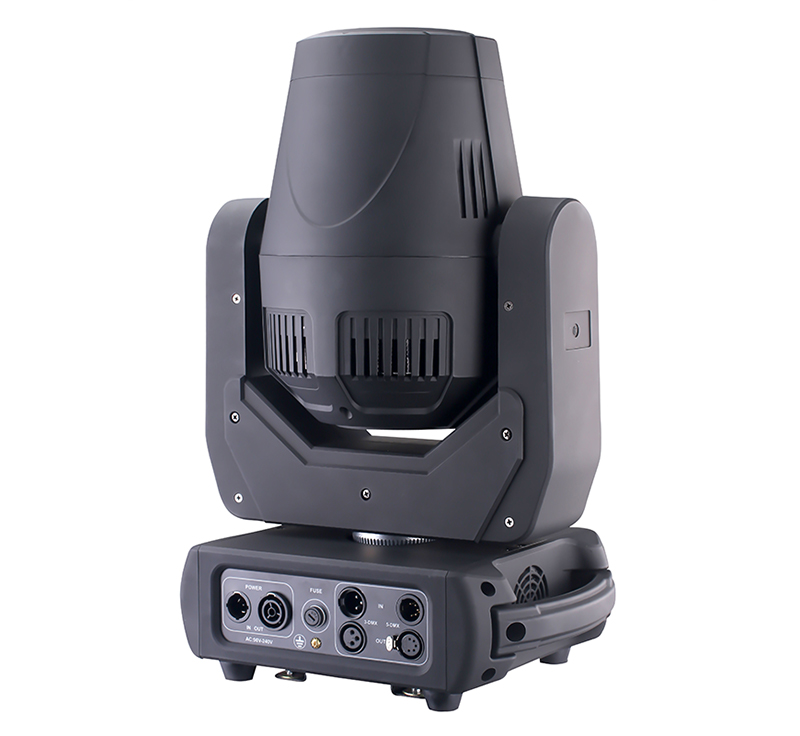

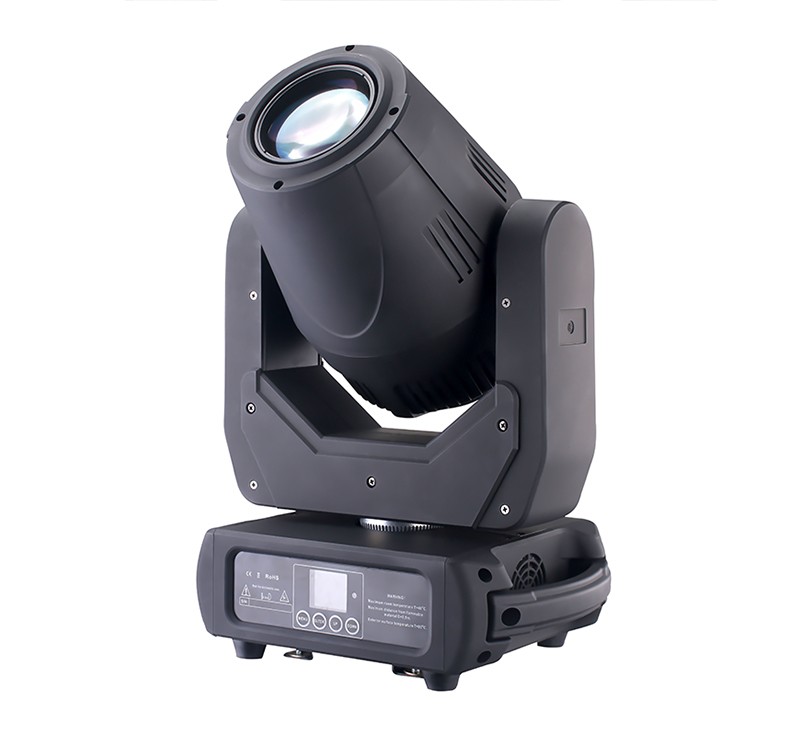

DMON LM150S 150W LED Beam & Gobo Moving Head Light
The Dmon LM150S is a compact 150W LED beam & gobo moving head light with a 4.5°–22° beam angle, rotating gobo wheel, and 8-facet prism for varied beam effects. Powered by a 20,000-hour LED engine and low-noise three-phase motors, the LM150S offers a lightweight, easy-to-rig option for smaller venues, touring rigs, and mobile setups.
- 150W LED engine (≈20,000 hours) — no lamp replacement cycle to manage
- 4.5°–22° beam angle — sharp, focused beam for compact setups
- Rotating gobo wheel (5 gobos) + 8-facet prism — pattern and texture variation in a lightweight fixture
- Low-noise three-phase motors — quiet operation suited to smaller, closer-proximity venues
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Not every venue needs a full-size beam fixture — smaller stages, mobile DJ setups, and touring rigs with limited truss space need something lighter without giving up beam quality. The LM150S delivers a sharp 4.5°–22° beam with gobo and prism effects in a compact, 12.5 kg body that's easier to rig and transport.
Close-proximity venues can't tolerate a fixture buzzing overhead. The LM150S runs on low-noise three-phase motors, keeping pan/tilt movement quiet even in smaller rooms where the audience sits close to the rig.
Application Scenarios
Specification
| Light Source | 1 × 150W White LED | LED Lifetime | Approx. 20,000 hours |
| Input Voltage | AC 110–240V, 50–60Hz | Total Power Consumption | 265W |
| Beam Angle | 4.5°–22° | Dimming | 0–100% linear dimming |
| Strobe | 0–20 Hz | Color Wheel | 1 wheel with 7 colors + open |
| Gobo Wheel | 1 rotating gobo wheel with 5 replaceable gobos + 2 open | Prism | 1 × 8-facet prism, bi-directional rotating |
| Focus | Electronic focus for precise image adjustment | Motor System | Three-phase motors with low-noise operation |
| Thermal Protection | Fan activates at 40°C, output reduces at 70°C | Control Protocol | DMX512 |
| DMX Channels | 14 / 16 CH | Fixture Dimensions | 328 × 220 × 482 mm (L×W×H) |
| Net Weight | 12.5 kg | Gross Weight | 15.5 kg |
Details & Features
What's in the Box
- • DMON LM150S Moving Head (150W LED)
- • Signal Cable
- • Power Cable
- • Omega Clamp
- • User Manual
Flight case available as an optional accessory.
Frequently Asked Questions
Can the LM150S be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with selectable 14 CH or 16 CH modes, compatible with any DMX-compliant console on the market.
Does the LED source need to be replaced like a traditional lamp?
No. The LM150S uses a 150W LED engine rated for approximately 20,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Is the LM150S suitable for smaller venues?
Yes. At 12.5 kg with low-noise three-phase motors, the LM150S is designed for compact setups and smaller venues where weight, quiet operation, and easy rigging matter.
What happens if the fixture overheats?
The cooling fan activates automatically at 40°C. If internal temperature continues to rise to 70°C, output is automatically reduced to protect the fixture.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
