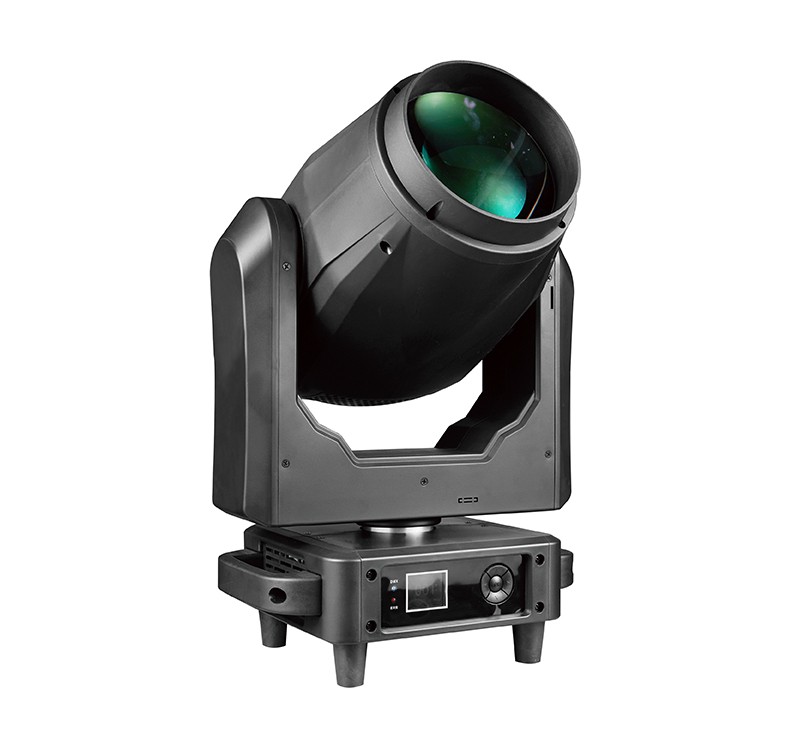

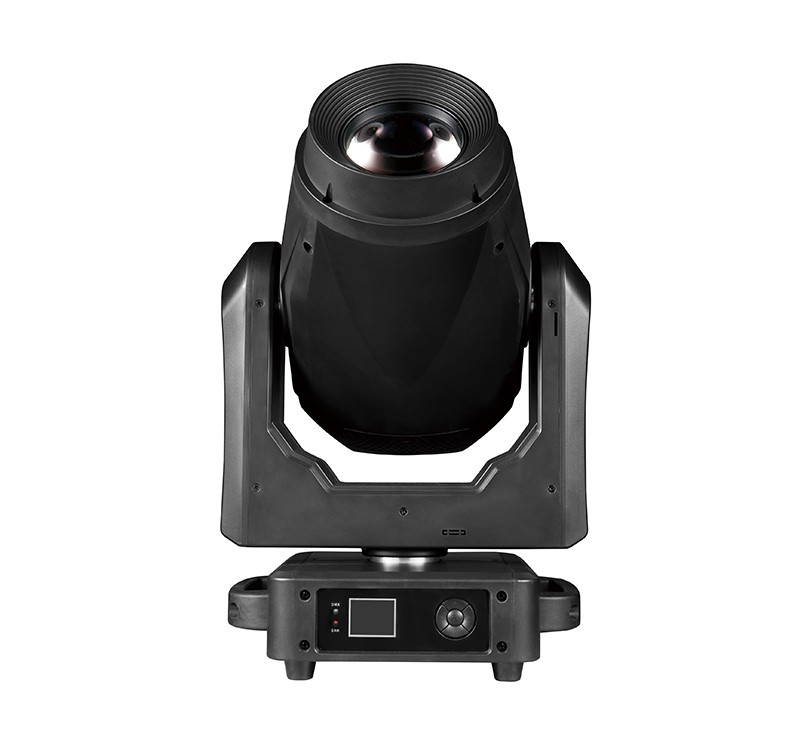

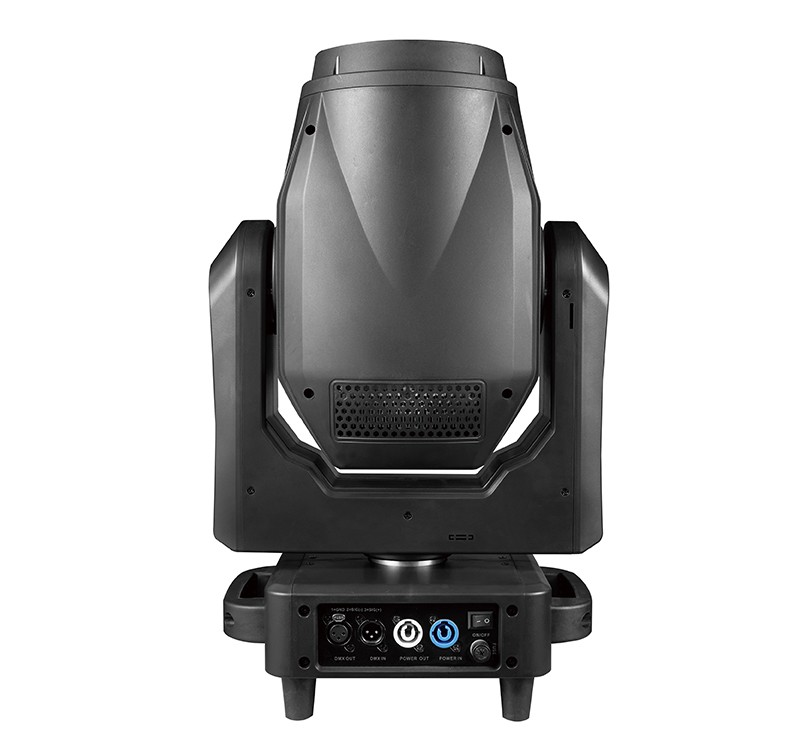

DMON LM300B 300W LED Beam Moving Head Light with Zoom & CTO

The Dmon LM300B is a compact 300W LED beam moving head light featuring 0°–45° zoom, linear CTO from 2700K to 6500K, and flicker-free dimming at up to 25 kHz for camera-ready output. With magnetic encoder positioning, auto-focus, and DMX512/RDM control, the LM300B combines the precision of higher-end fixtures with a lightweight, easy-to-rig 13 kg body.

0°–45° zoom + linear CTO (2700K–6500K) — adjustable beam width and color temperature in one fixture
Flicker-free dimming (1.2–25 kHz) — camera-ready output for broadcast and video work
Magnetic encoder positioning with auto-focus — accurate, repeatable movement without manual recalibration
DMX512 + RDM control — remote monitoring and status checks from the console

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection: We Keep Buyer Information Completely Confidential!

Function Description

Filming under LED fixtures often means dealing with visible flicker on camera. The LM300B's dimming runs at 1.2–25 kHz, keeping output flicker-free across a wide dimming range — so the fixture stays camera-ready without needing to match frame rates manually.

Standard positioning motors can drift out of alignment after repeated use. The LM300B uses magnetic encoder positioning with auto-focus, keeping pan/tilt movement and focus accurate and repeatable without manual recalibration between shows.

Application Scenarios

Clubs & Bars

Compact size and quiet motors fit low-ceiling venues where fixtures hang close to the crowd.

Small Wedding & Banquet Venues

Compact enough for hotel ballrooms and banquet halls, without the bulk of a full-size touring fixture.

Small Event & Private Function Spaces

Gobo and beam effects that add visual impact to rooms too small for large-venue fixtures.

Karaoke Rooms & Lounges

Low-noise operation suited to small, enclosed rooms where fixture noise would otherwise be noticeable.

Specification

Light Source	300W White LED Module	LED Lifetime	Approx. 20,000 hours
Input Voltage	AC 100–240V, 50/60Hz	Color Temperature	9000K (native) + CTO 2700K–6500K
Zoom Angle	0°–45° linear zoom	Beam Effects	Two-level beam shaping system
Dimming	0–100% electronic linear dimming with gamma curves	Dimming Frequency	1.2 kHz – 25 kHz (flicker-free, camera ready)
Strobe	0.3–25 Hz (sync / async / random)	Color Wheel	14 colors + open, full/half color, bi-directional rainbow
Static Gobo Wheel	6 gobos + flowing effect + open	Rotating Gobo Wheel	6 custom rotating glass gobos + water effect
Prism	1 × 4-facet prism with indexing and bi-directional rotation	Frost	Independent frost filter, 0–100% linear
Focus	DMX linear focus with auto-focus function	Pan / Tilt	540° / 270° (16-bit resolution)
Motor System	High-speed silent three-phase motors with magnetic encoder positioning	Control Protocol	DMX512, RDM
DMX Channel Mode	19 CH (simplified mode)	Control Interface	3-pin DMX (optional 5-pin), power in/out
Sleep Mode	Auto standby when DMX signal is lost	Display	1.7-inch LCD display, bilingual menu, temperature & error indication
Cooling System	Copper heat pipe + intelligent fan control with thermal protection	Net Weight	13.0 kg
Gross Weight	14.7 kg

Details & Features

Frequently Asked Questions

Can the LM300B be controlled by third-party lighting consoles?

Yes. It runs on standard DMX512 protocol with 19 channels and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.

Is the LM300B suitable for filming or broadcast use?

Yes. The LM300B's dimming runs at 1.2–25 kHz, keeping output flicker-free across the dimming range, which makes it suitable for on-camera work without visible flicker.

Does the LED source need to be replaced like a traditional lamp?

No. The LM300B uses a 300W LED module rated for approximately 20,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.

What happens if the fixture loses DMX signal during a show?

The LM300B automatically enters standby mode when DMX signal is lost, helping conserve the LED source until signal is restored.

Do you offer OEM/ODM or custom branding?

Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.

What's the warranty and how does after-sales support work?

2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
