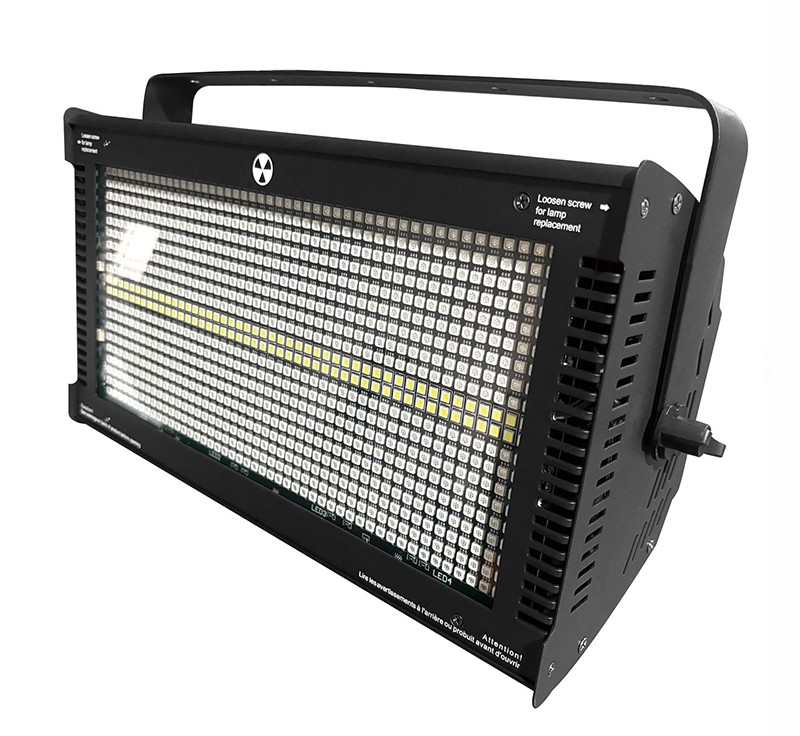

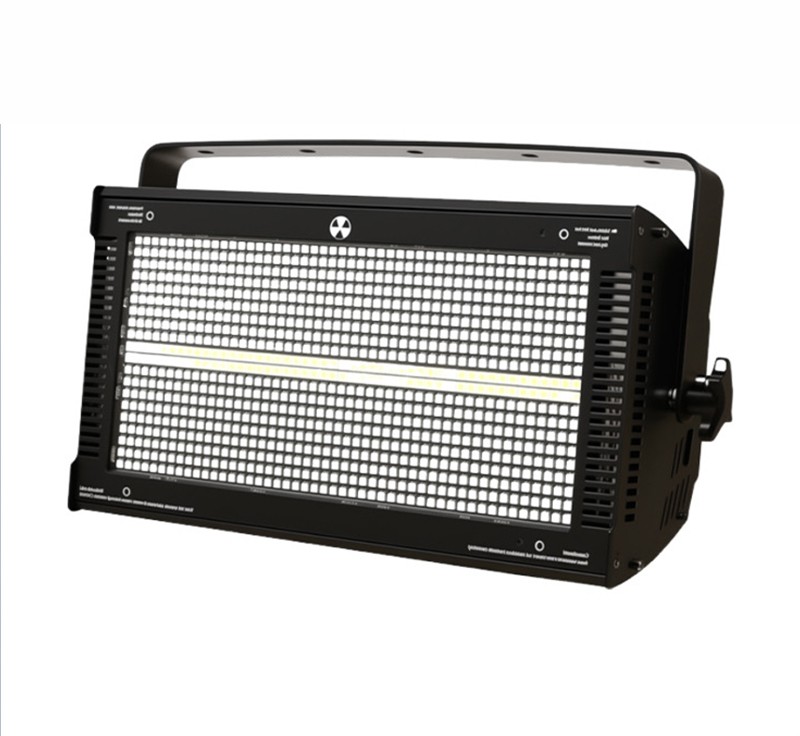

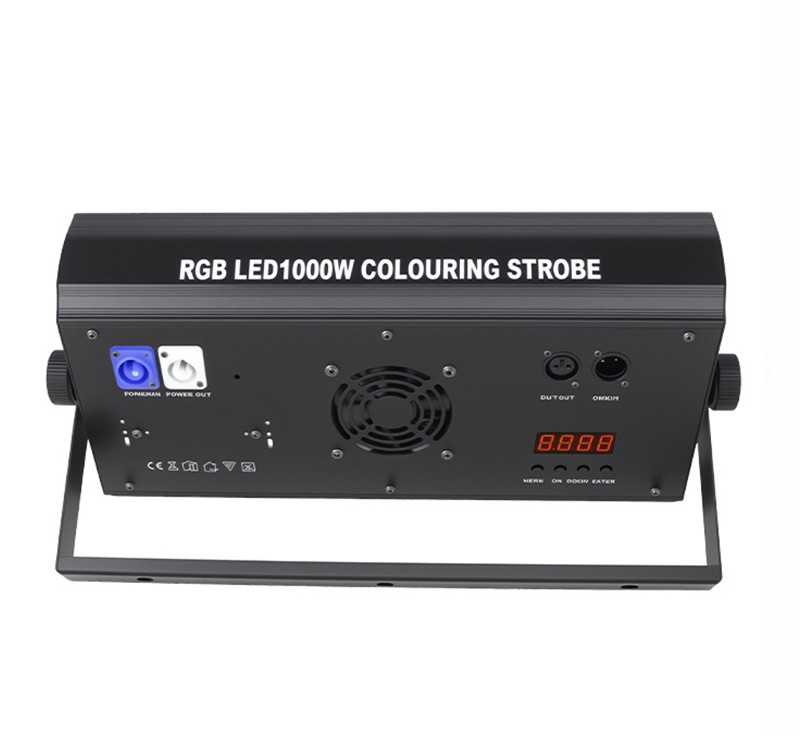

DMON PW1000 960-Pixel LED Strobe Light with Auxiliary White LEDs
The Dmon PW1000 is a 960-pixel LED strobe light combining 864 RGB LEDs with 96 auxiliary white LEDs across 8+8 independently controllable segments. With chase, wash, and strobe functions in one fixture, plus DMX512/RDM control, the PW1000 delivers layered color and white-light effects for indoor productions.
- Dual-layer segments (8 RGB + 8 white) — independent color and white-light chase effects in one fixture
- Three functions in one fixture — chase, wash, and strobe effects without switching between separate units
- 32-bit ultra-smooth dimming — precise, flicker-free brightness control
- RDM support — remote monitoring and status checks from the console
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
A single-layer RGB array limits how a strobe effect can look. The PW1000 adds 96 auxiliary white LEDs across 8 independently controllable segments, on top of the 8 RGB segments, giving designers a separate white-light layer for chase effects alongside the main color output.
Running separate chase, wash, and strobe fixtures means rigging, powering, and programming multiple unit types. The PW1000 combines all three effects in one fixture, cutting down on the number of fixture types a rig needs.
Application Scenarios
Specification
| LED Configuration | 864 × SMD 5050 RGB LEDs; 96 × White LEDs (auxiliary) | Function | Chase + Wash + Strobe effects |
| Input Voltage | AC 110–240V ±10%, 50/60Hz | Power Consumption | 200W |
| Control Modes | DMX512, Auto, Master-Slave, Sound Active, RDM | DMX Channels | CH04 / CH11 / CH32 / CH39 |
| Dimming | 32-bit ultra-smooth linear dimming 0–100% | Strobe Frequency | 1–30 Hz |
| Segment Structure | 8 RGB segments + 8 white segments | Operating Temperature | -30°C to +50°C |
| Housing | Metal housing, black finish | Connection | DMX512 input/output, Power input/output |
| IP Rating | IP20 (indoor use) | Fixture Dimensions | 500 × 275 × 140 mm |
| Net Weight | 8.0 kg |
Frequently Asked Questions
Can this fixture be used outdoors?
The PW1000 is rated IP20 and designed for indoor use. It is not rated for outdoor or exposed-weather applications.
Can the PW1000 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with selectable 4 CH, 11 CH, 32 CH, or 39 CH modes, and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
What does the auxiliary white LED layer add?
The 8 white segments run independently of the 8 RGB segments, letting operators layer white-light chase effects alongside or in contrast to the color output.
Does the LED source need to be replaced like a traditional lamp?
No. The PW1000 uses LEDs with no scheduled lamp replacement cycle required under normal use, unlike traditional discharge-lamp fixtures.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
