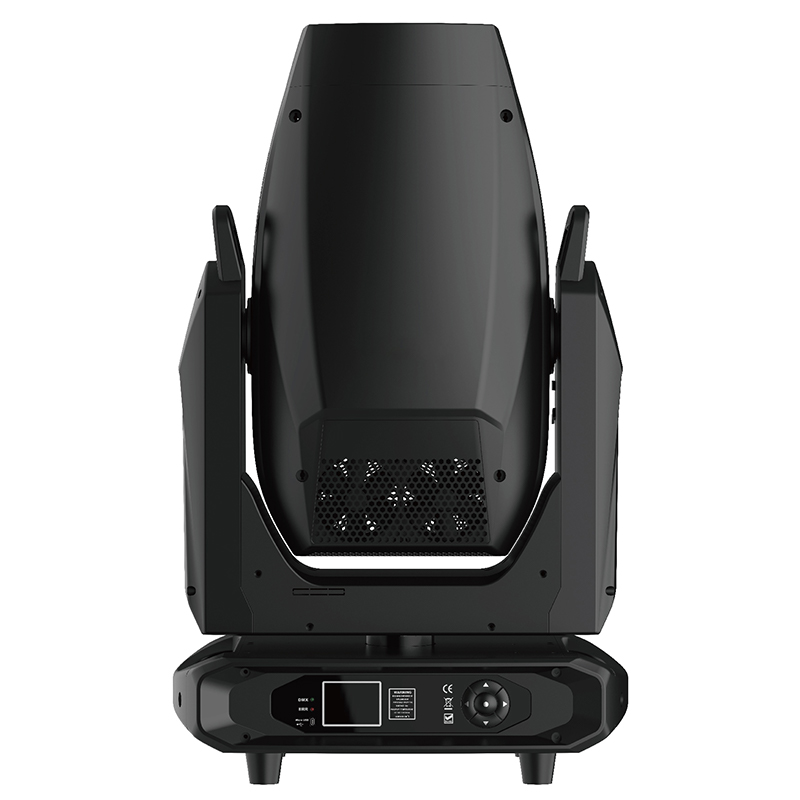

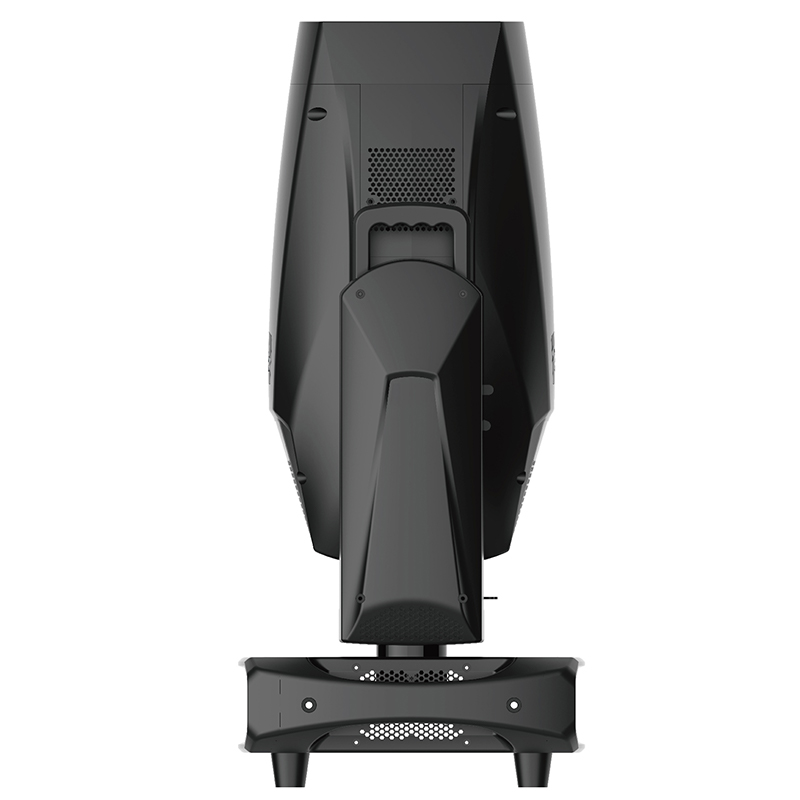

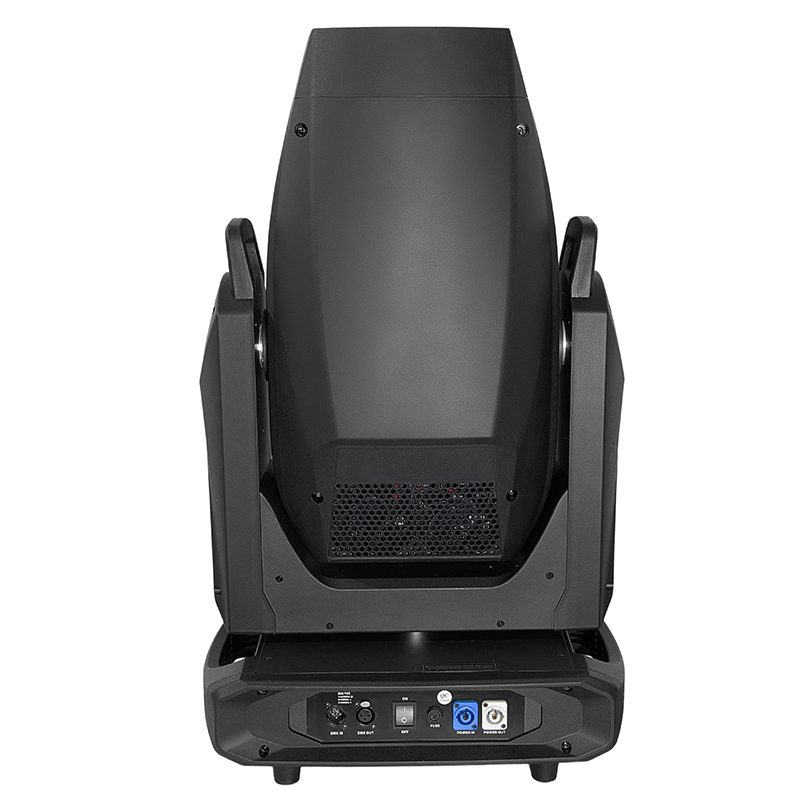

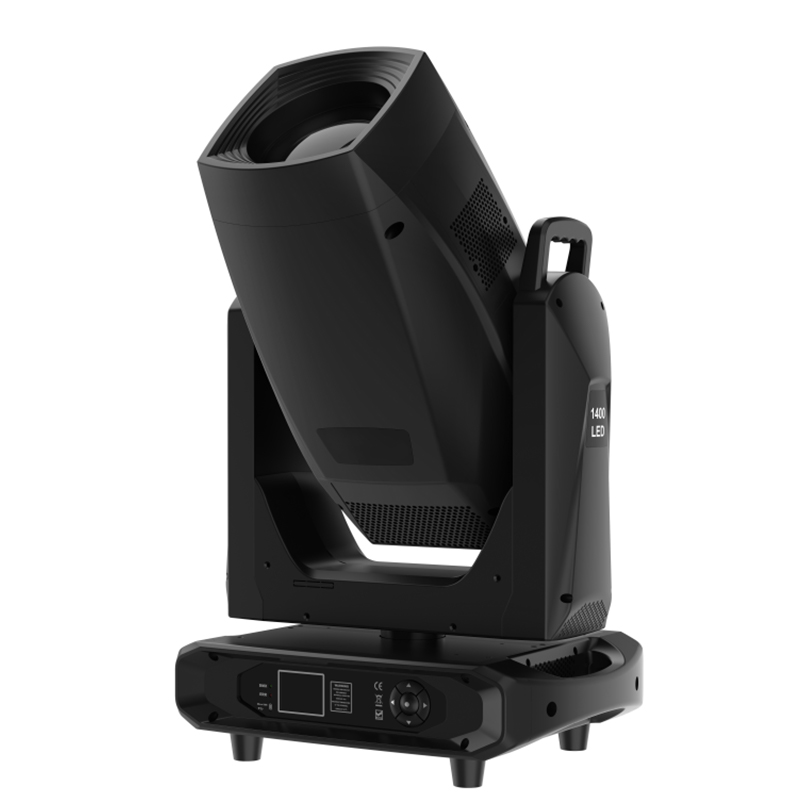

DMON LM1200X 1200W LED Image Framing Profile Moving Head Light

The Dmon LM1200X is the flagship model in DMON's LED framing series, delivering 38,000 lm from a 1200W LED module with a 5.5°–60° zoom range, motorized iris, and 4-blade framing system for full blackout capability. With independent CMY color mixing, a high CRI mode (Ra>90), and five-phase motors with magnetic encoder positioning, the LM1200X is built for large-scale theatrical, architectural, and

38,000 lm output — flagship-level brightness for large-scale productions
4-blade framing system with full blackout + 5.5°–60° zoom — precise shape control across a wide range
Five-phase motors with magnetic encoder positioning — accurate, repeatable movement show after show
High CRI mode (Ra>90) — accurate color rendering for broadcast and color-critical work

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection: We Keep Buyer Information Completely Confidential!

Function Description

A framing system is only as useful as its ability to fully black out unwanted light. The LM1200X's 4 independent framing blades each rotate 90° and support full blackout, giving designers complete control over which edges go dark — not just partial masking.

Standard moving head motors can drift out of alignment after repeated use, especially on long-running installations. The LM1200X uses five-phase motors with magnetic encoder positioning, keeping pan/tilt movement accurate and repeatable show after show without manual recalibration.

Application Scenarios

Theatrical & Stage Productions

Crisp gobo projection and precise framing for productions where shape and focus matter as much as color.

Houses of Worship

Quiet, steady operation for services and events where consistent, distraction-free lighting is the priority.

TV & Broadcast Studios

Controlled beam shaping keeps light exactly where it's needed on set, without spill onto cameras or talent.

Architectural Gobo Projection

Custom gobo patterns and logo projection for branded events, building displays, and retail installations.

Specification

Light Source	1200W High-Output White LED Module	LED Lifetime	Approx. 20,000 hours
Input Voltage	AC 100–240V, 50/60Hz	Rated Power Consumption	1500W
Color Temperature	6500K (native), linear CTO 2800K–6500K	CRI	Ra>70 (Standard), Ra>90 (High CRI Mode)
Luminous Flux	38,000 lm	Beam Aperture Diameter	150 mm
Control Modes	DMX512 / RDM / Auto / Master-Slave / Sound	DMX Channels	36 CH
Signal Interface	3-pin XLR / optional 5-pin XLR	Display	2.7-inch color touchscreen, bilingual menu, 180° reversible

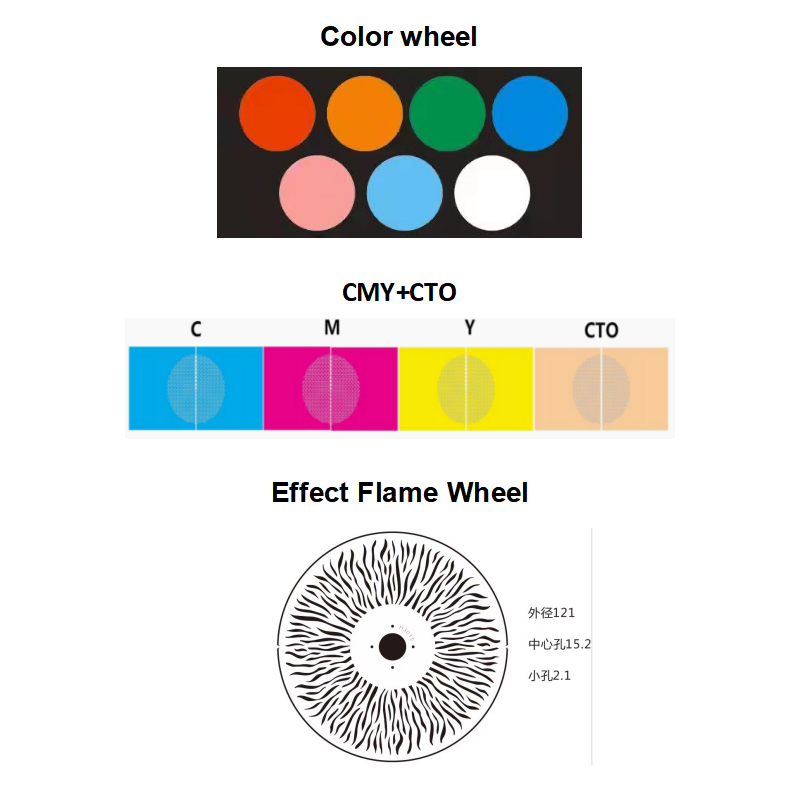

Color System	Independent CMY color mixing system	Fixed Colors	6 colors + open

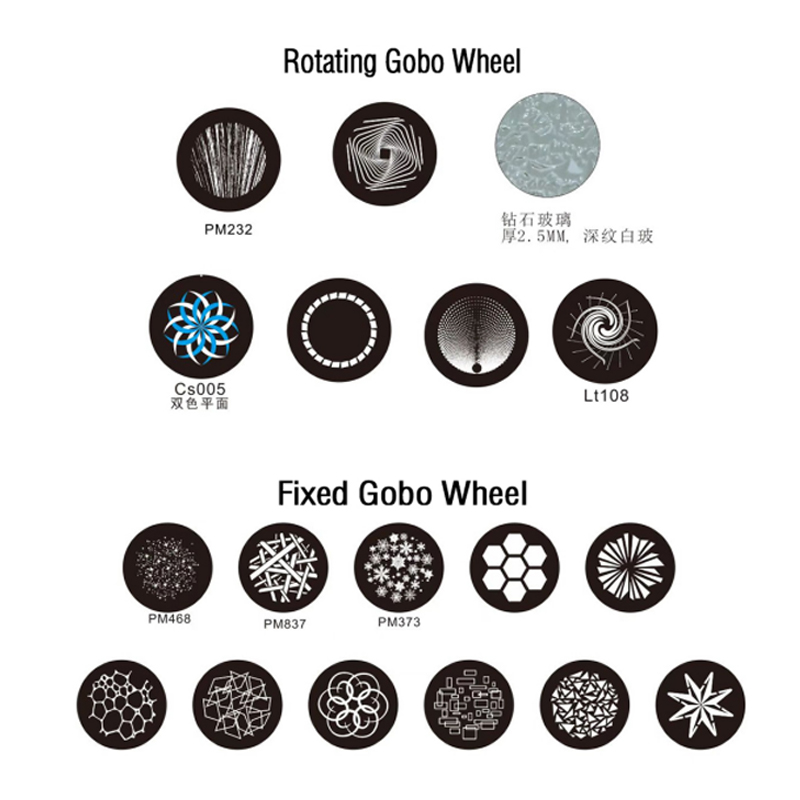

Gobo System (Static)	11 interchangeable gobos (Ø25.4mm) + open	Gobo System (Rotating)	7 interchangeable gobos (Ø26.9mm, image Ø16.5mm)
Effect Wheel	Dynamic flame & water flow effects	Prism System	Rotating 3-facet prism + 6-line prism
Framing System	4 independent framing blades, each rotatable 90°, full blackout supported	Frost System	Dual frost system
Iris	6%–100% smooth iris control	Zoom System	Linear zoom 5.5°–60°
Dimming	0–100% linear electronic dimming	Strobe	Up to 25 Hz, random and pulse modes
Pan / Tilt	540° / 270° (16-bit resolution)	Motor System	Five-phase motors with magnetic encoder positioning
Operating Temperature	0°C–45°C	IP Rating	IP20
Fixture Dimensions	510 × 345 × 800 mm	Carton Size	730 × 690 × 590 mm
Net Weight	43 kg	Gross Weight	51.5 kg

Details & Features

What's in the Box

• DMON LM1200X Moving Head (1200W LED Module)
- •Signal Cable
- •Power Cable
- •Omega Clamp
- •User Manual
Flight case available as an optional accessory.

Frequently Asked Questions

How does full blackout framing work?

Each of the LM1200X's 4 framing blades rotates independently up to 90° and can close completely, allowing the fixture to fully block light output when needed — not just partially mask the edges of the beam.

Does the LED source need to be replaced like a traditional lamp?

No. The LM1200X uses a 1200W LED module rated for approximately 20,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.

Can the LM1200X be controlled by third-party lighting consoles?

Yes. It runs on standard DMX512 protocol with 36 channels and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market. Auto, Master-Slave, and Sound-active modes are also available for standalone operation.

What's the difference between standard and high CRI mode?

Standard mode runs at Ra>70, suitable for general stage use. High CRI mode switches to Ra>90 for productions where accurate color rendering matters, such as broadcast or product launches.

Do you offer OEM/ODM or custom branding?

Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.

What's the warranty and how does after-sales support work?

2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
