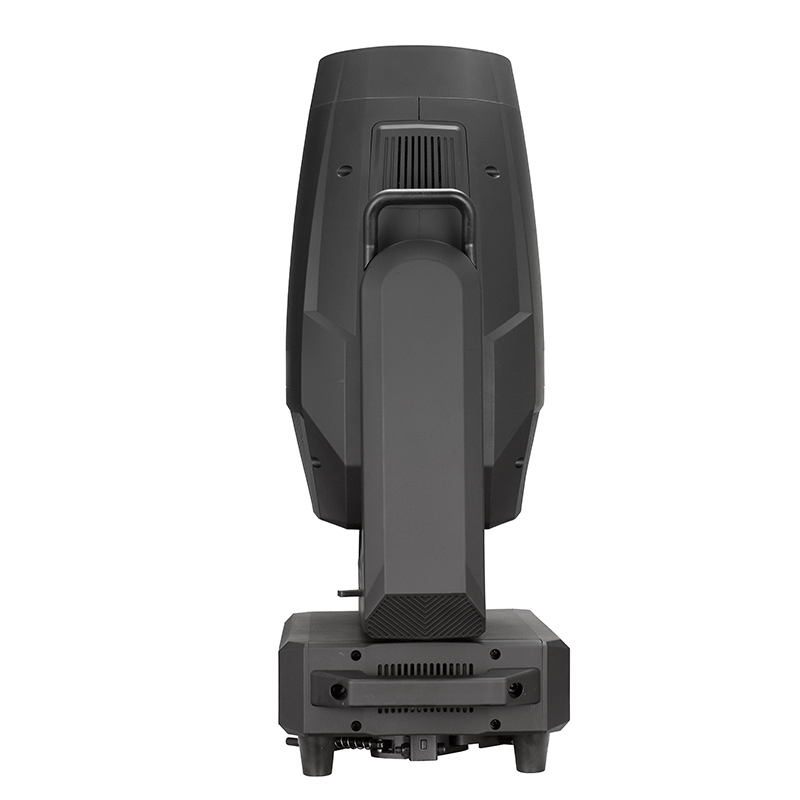

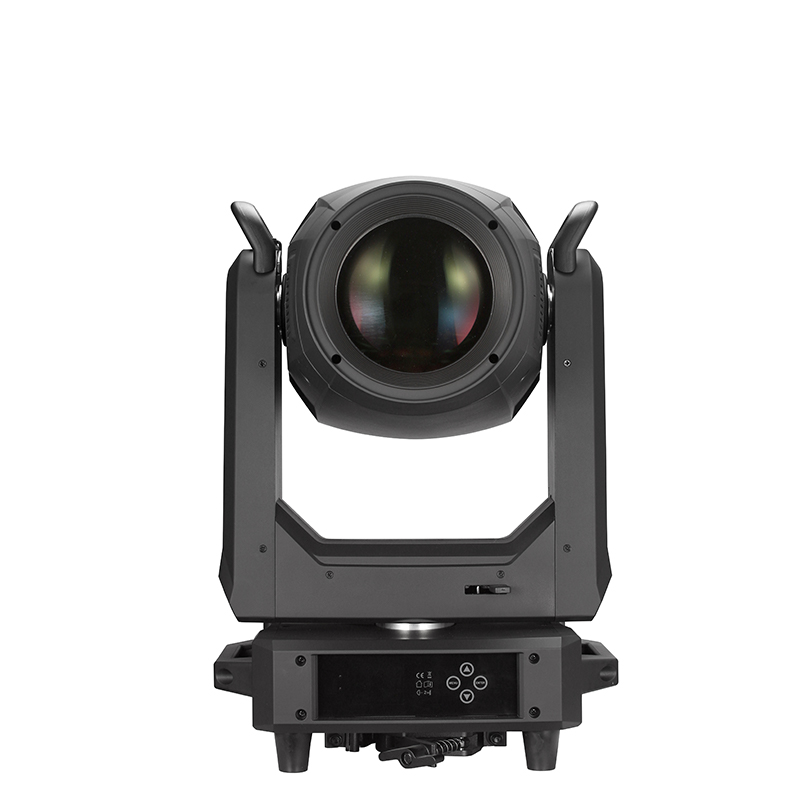

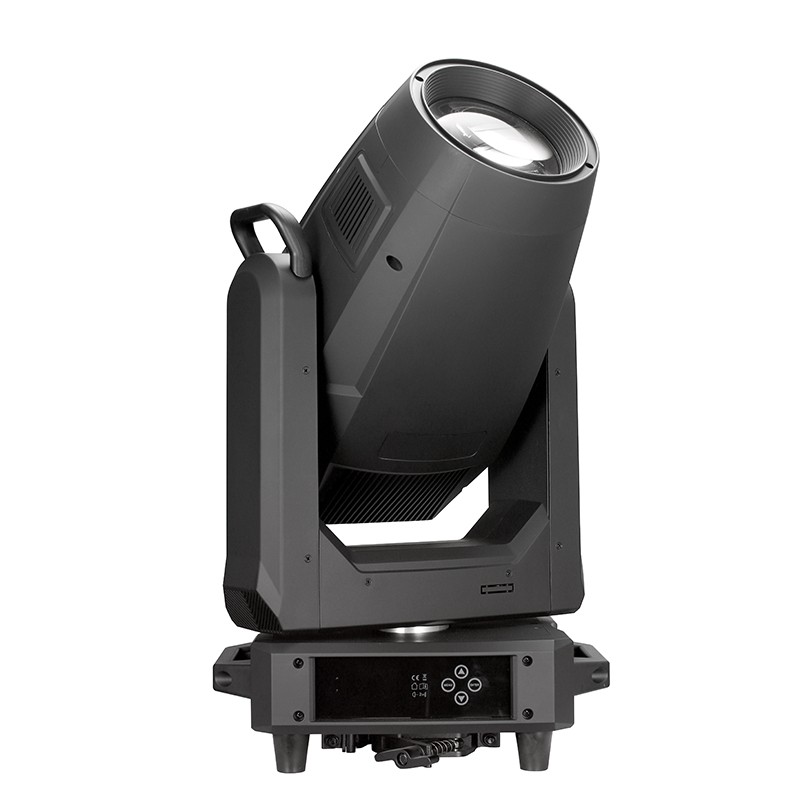

DMON LM1000X 1000W LED Framing Moving Head Light
The Dmon LM1000X is the highest-output model in DMON's LED framing series, featuring a 4-blade framing system and motorized iris for precise edge control, alongside linear CMY+CTO color mixing and a high CRI mode (Ra≥90). With a 1000W LED engine rated for 20,000 hours, the LM1000X delivers the output and shape control demanded by large-scale theatrical and architectural installations.
- 1000W LED engine — the highest-output model in DMON's LED framing series
- 4-blade framing system (90° rotation) + motorized iris — precise edge shaping and beam masking on demand
- 20,000-hour LED lifetime — no lamp replacement cycle to manage
- High CRI mode (Ra≥90) — accurate color rendering for productions where color fidelity matters
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Large-scale productions need output that doesn't compromise on shape control. The LM1000X pairs a 1000W LED engine with a 4-blade framing system, so designers get both the raw output for big venues and the precision to mask exactly which edges stay dark.
Standard LED output is fine for most work, but color-critical productions — broadcast, product launches, fashion shows — need output that renders skin tones and fabric colors accurately. The LM1000X's high CRI mode (Ra≥90) is built in as a switchable option, so the same fixture covers both everyday use and color-critical work.
Application Scenarios
Specification
| Light Source | 1000W LED | Rated Lifetime | 20,000 hours |
| Input Voltage | AC 100–240V, 50/60Hz | Rated Power | 1200W @ 220V |
| Beam Angle | 4°–40° | CRI | Standard mode Ra:70 / High CRI mode Ra:90 |
| Pan / Tilt | 540° / 270° with auto-reset function | Strobe | 0–25Hz |
| Dimming | 0–100% linear dimming | Color System | Color wheel: 5 colors + open; Linear CTO; Linear CMY |
| Static Gobo Wheel | 6 fixed gobos + open; flow effect | Rotating Gobo Wheel | 7 rotating gobos; each glass gobo supports bi-directional rotation |
| Prism System | 3 prisms | Focus | DMX linear focus |
| Frost | Independent frost filter | Framing System | 4-blade framing system, 90° rotation |
| Iris | Motorized linear iris | Control Protocol | DMX512, RDM |
| Macros | Reset control, Auto mode, Master-Slave mode | DMX Channels | 35 CH |
| IP Rating | IP20 | Housing | High-temperature flame-retardant plastic |

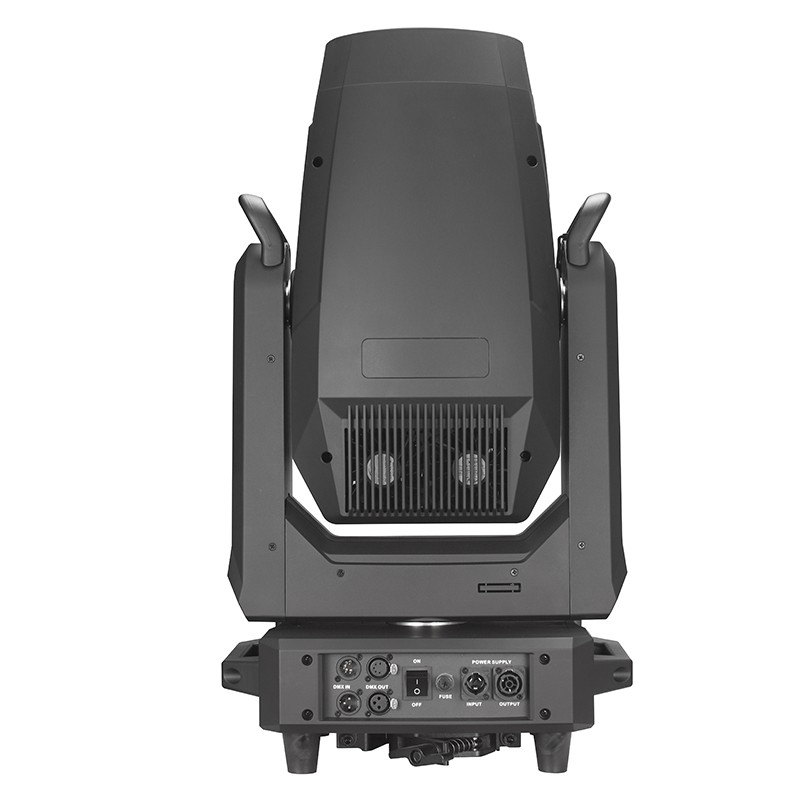

| Power Connection | powerCON input / output | Signal Connection | 3-pin & 5-pin DMX input / output |
| Working Temperature | -20°C to +40°C | Fixture Size | 383 × 274 × 683 mm |
| Net Weight | 28 kg | Packing Size | 750 × 360 × 470 mm |
Details & Features
What's in the Box
- • DMON LM1000X Moving Head (1000W LED)
-
- •Signal Cable
- •Power Cable
- •Omega Clamp
- •User Manual
Flight case available as an optional accessory.
Frequently Asked Questions
How does the framing system work?
The LM1000X uses a 4-blade framing system that rotates 90°, letting operators mask specific edges of the beam — useful for keeping light off a doorway, sign, or piece of scenery without gels or external shutters.
Does the LED source need to be replaced like a traditional lamp?
No. The LM1000X uses a 1000W LED engine rated for 20,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Can the LM1000X be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with 35 channels and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
What's the difference between standard and high CRI mode?
Standard mode runs at Ra:70, suitable for general stage use. High CRI mode switches to Ra:90 for productions where accurate color rendering matters, such as broadcast or product launches.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
