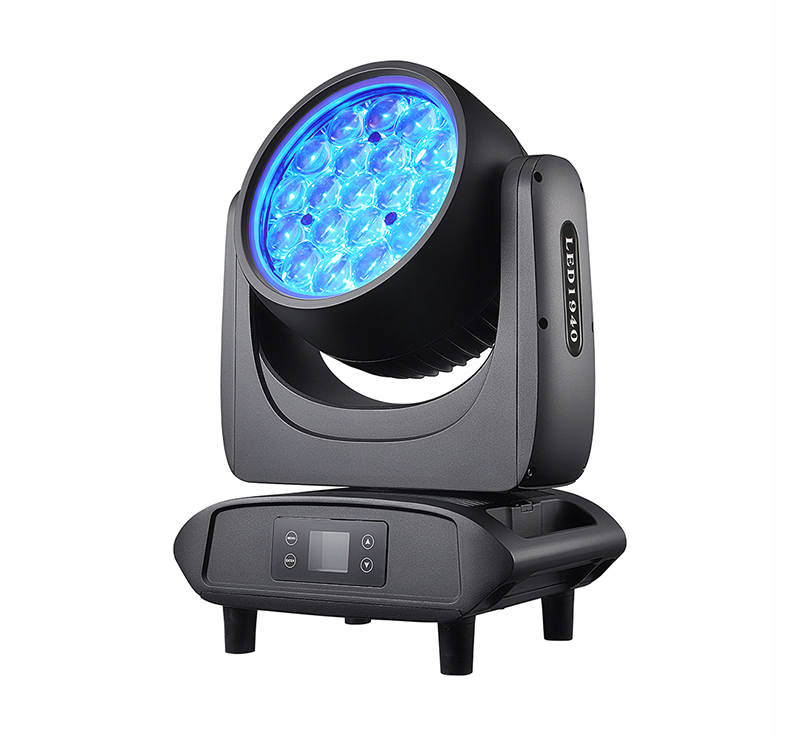

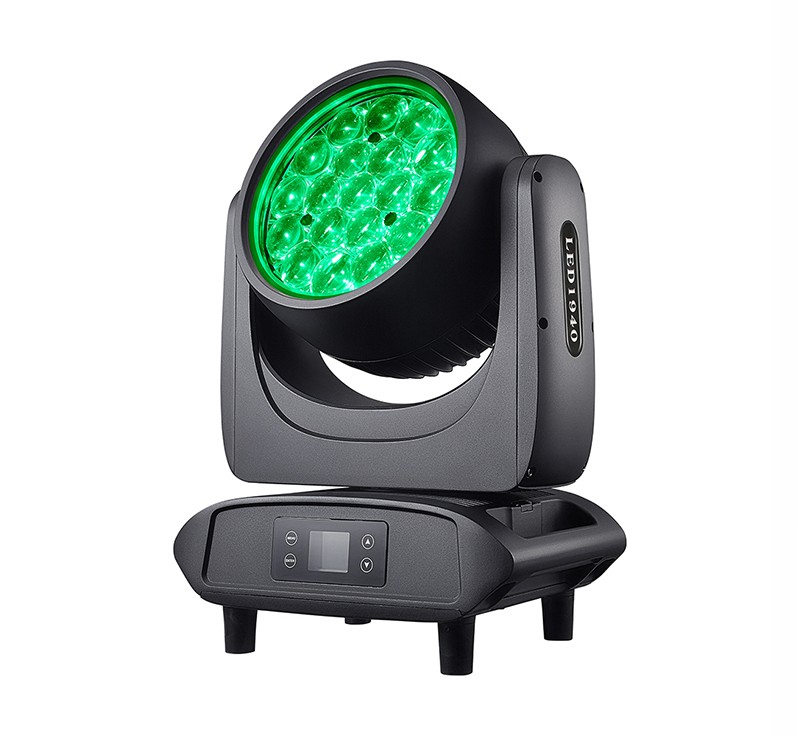

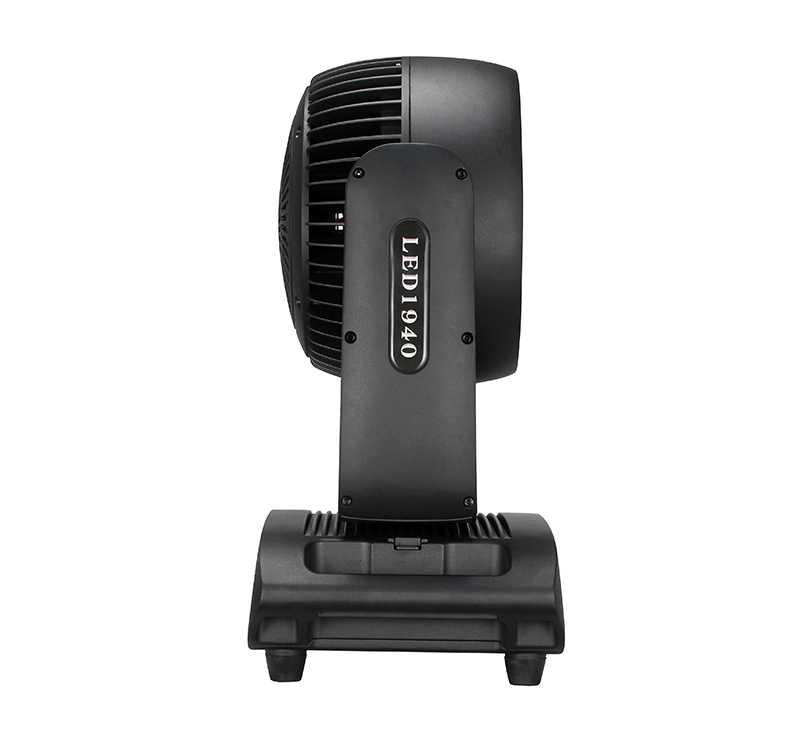

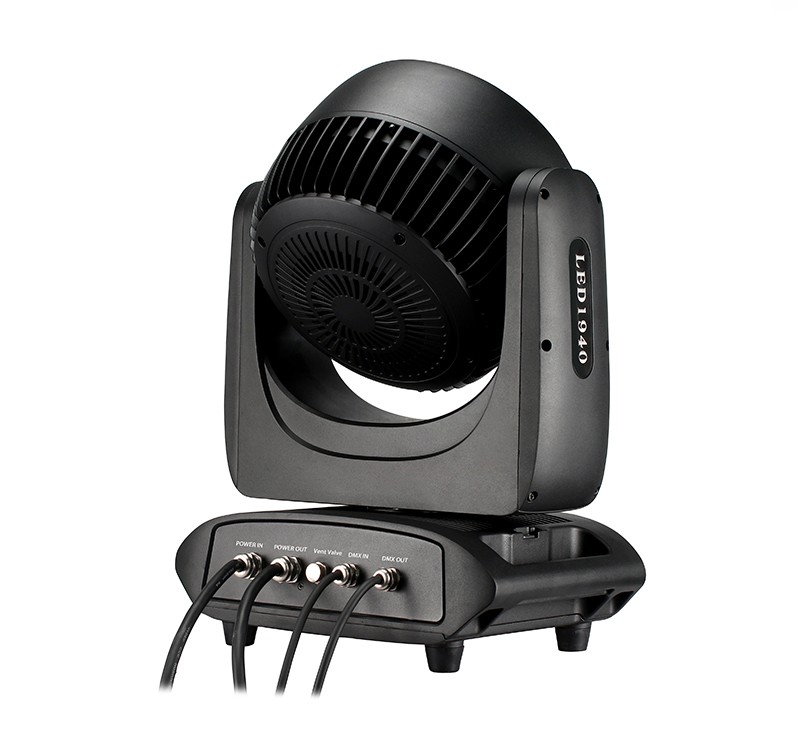

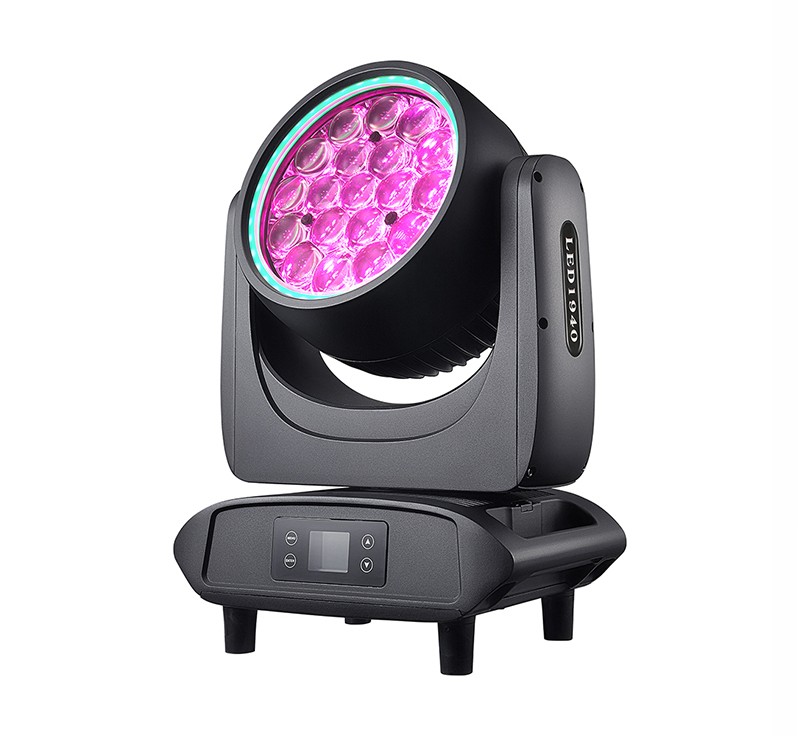

DMON MF1940 Outdoor Mini 19×40W RGBW Waterproof Zoom Wash Moving Head Light
The Dmon MF1940 is an IP65-rated outdoor mini RGBW zoom wash moving head light powered by 19×40W LEDs, with a heat-resistant glass light guide column for smooth, uniform wash output and an addressable ring of decorative pixels for aura effects. Built compact and lightweight at 14 kg, the MF1940 delivers weatherproof performance without the bulk of larger outdoor fixtures.
- IP65 rated — true outdoor waterproof protection, no rain cover required
- Heat-resistant glass light guide column — smooth, uniform wash output with fine color mixing
- Addressable ring pixels — separate aura/ring effects beyond the main wash output
- Compact at 14 kg — lighter and easier to rig than larger outdoor RGBW fixtures
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Most fixtures are built for indoor use and need a rain cover the moment a show moves outdoors. The MF1940 is IP65 from the factory, built to sit in an exposed outdoor rig through wind and rain without extra weatherproofing or downtime.
A basic wash output can look uneven or show visible seams between LEDs. The MF1940's heat-resistant glass light guide column smooths the output into a uniform wash with finer color mixing, avoiding the mottled look of a standard LED array.
Standard outdoor fixtures often skip decorative touches to keep costs down. The MF1940 adds a ring of 33 individually addressable pixels for aura effects, giving designers a second visual layer separate from the main wash beam.

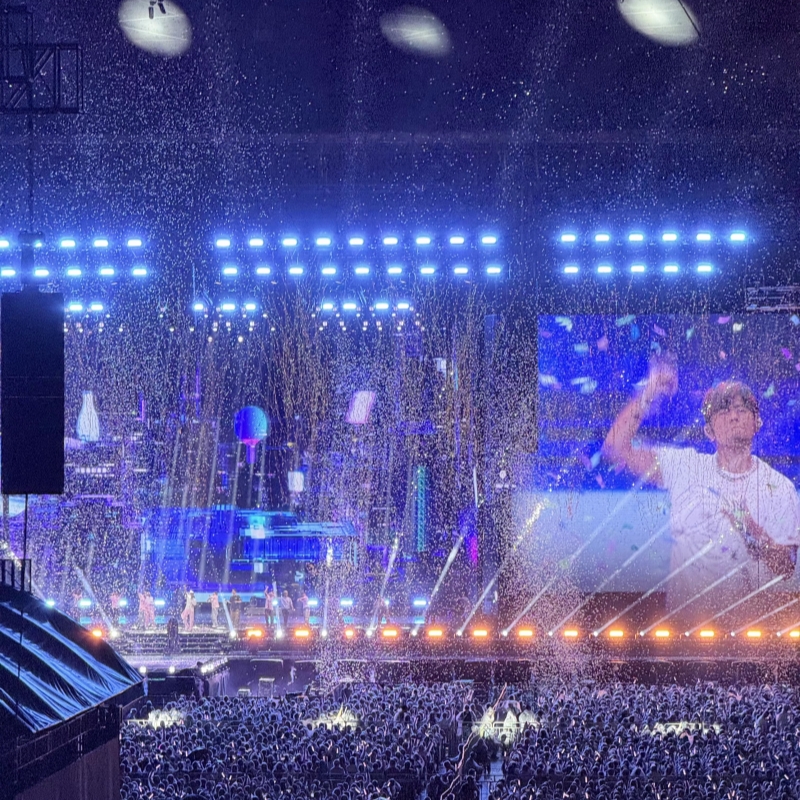

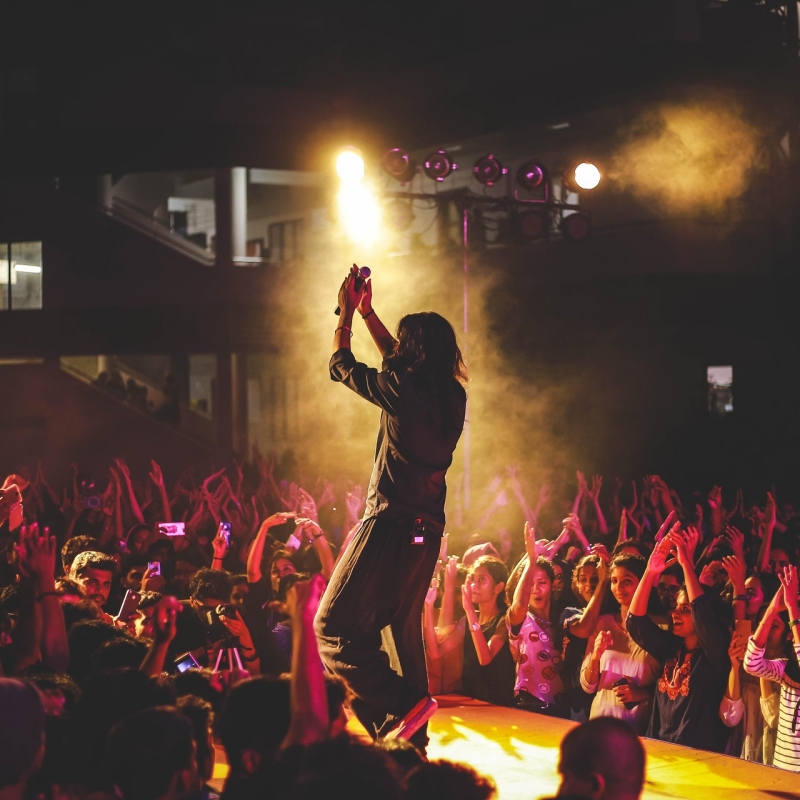

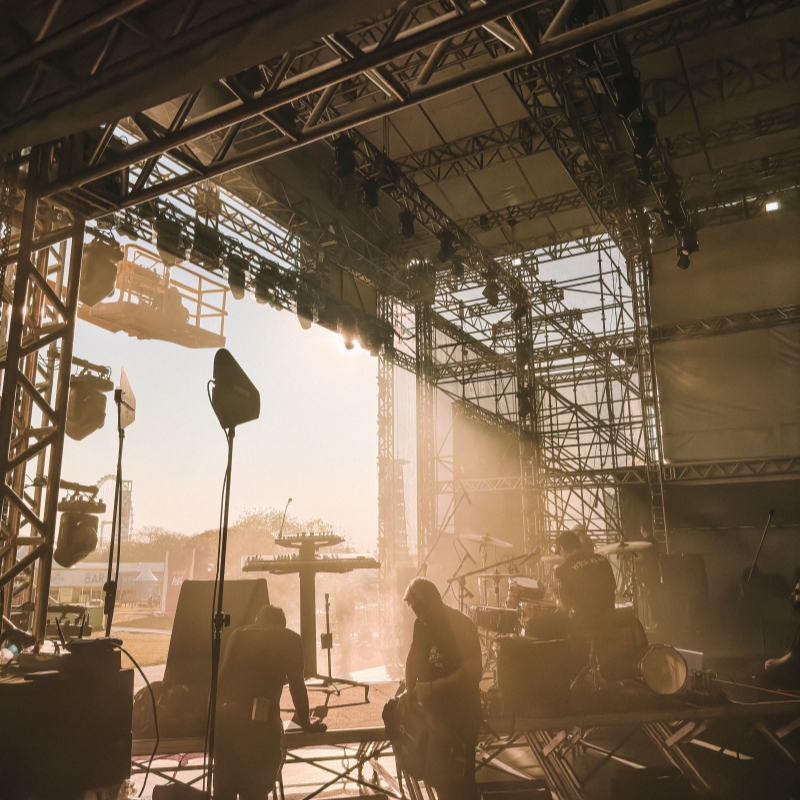

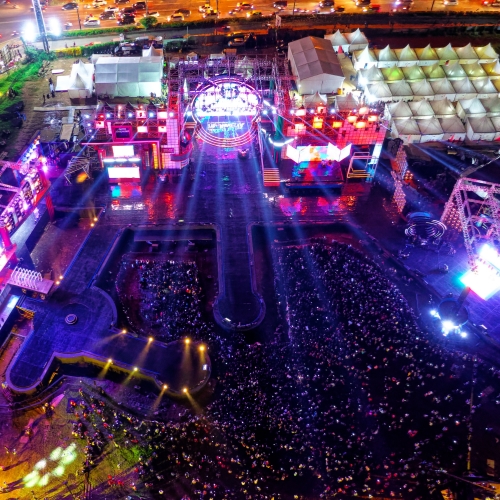

Application Scenarios
Specification
| Main Light Source | 19 × 40W RGBW 4-in-1 LEDs (5060 package) | Aux / Decorative Pixels | 33 pcs 5V addressable pixel LEDs (ring / aura effects) |
| LED Lifetime | ≥50,000 hours | Input Voltage | AC 100–240V, 50/60Hz |
| Power Consumption | 800W | Zoom Angle | 4°–60° (quiet linear motorized zoom) |
| Optical System | High-definition optics + heat-resistant glass light guide column for smooth, uniform wash and fine color mixing | Dimming | 0–100% linear dimming; built-in macro effects (static & dynamic), speed adjustable |
| Strobe | 1–25 Hz LED shutter/strobe; multiple modes incl. random and pulse strobe, speed adjustable | Color | RGBW infinite mixing; smooth, even and saturated output |
| Pan / Tilt | 540° / 270° (16-bit precision scanning) | Control Protocols | DMX512, RDM, Master/Slave, Auto, Sound |
| DMX Channel Modes | 22CH / 30CH / 54CH / 58CH | Display | 1.8" TFT color display with touch buttons + 4 function keys; 180° flip; auto screen-off after 60s; DMX signal indicator; CN/EN menu |
| Housing | Lightweight die-cast aluminum (no plastic parts) | IP Rating | IP65 |
| Maximum Linking | 220V ≤ 4 units (2.5mm² cable); 110V ≤ 2 units (2.5mm² cable) | Fixture Size | 328 × 252 × 419 mm |
| Net Weight | 14.0 kg | Carton Packing | 428 × 352 × 519 mm; Gross Weight: 16.5 kg |
Details & Features
What's in the Box
- • DMON MF1940 Moving Head (19 × 40W RGBW LED)
- • Signal Cable
- • Power Cable
- • Omega Clamp
- • User Manual
Flight case available as an optional accessory.
Frequently Asked Questions
Is the MF1940 truly rated for outdoor use?
Yes. The MF1940 is IP65-rated from the factory, built for direct exposure to rain and outdoor conditions without an additional rain cover.
Can the MF1940 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with selectable 22CH, 30CH, 54CH, or 58CH modes, and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
What does the ring of addressable pixels do?
The 33 addressable pixel LEDs run independently of the main wash output, allowing aura or ring-style effects separate from the primary beam.
Does the LED source need to be replaced like a traditional lamp?
No. The MF1940 uses 19×40W RGBW LEDs rated for ≥50,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
