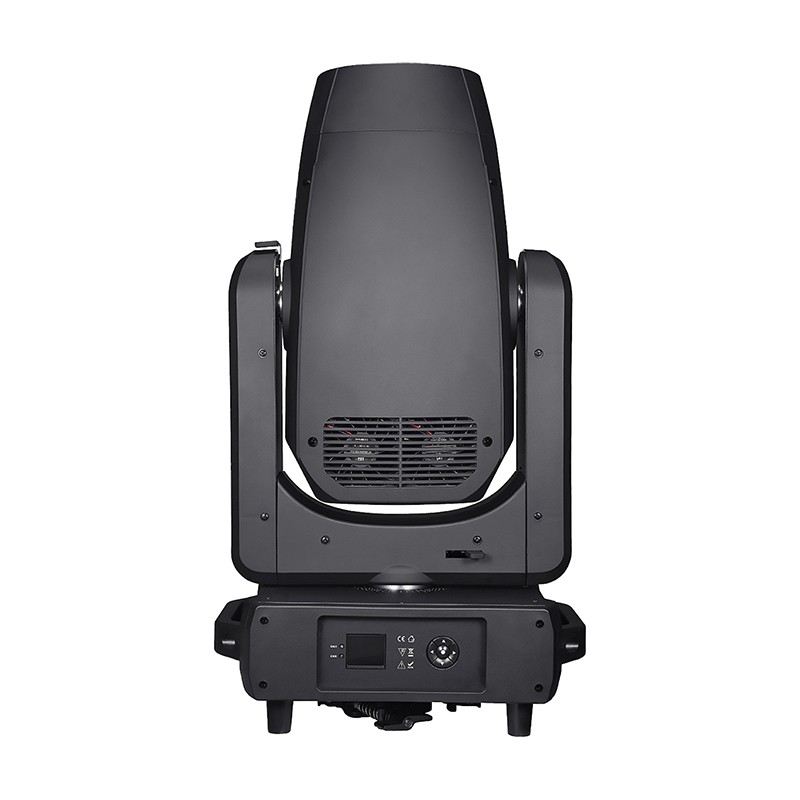

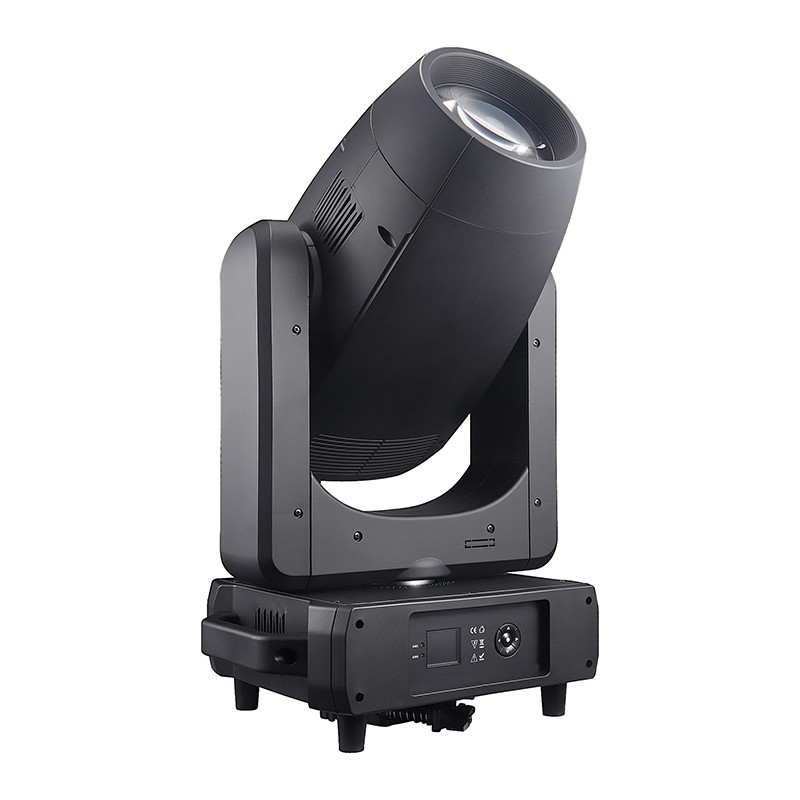

DMON LM800M MINI 800W LED Framing Moving Head Light with CMY + CTO

The LM800M MINI 800W LED Framing Moving Head Light combines an 800W LED source, 3°–40° zoom, CMY color mixing, linear CTO and a four-blade framing system in a MINI-format fixture. With rotating gobos, 3-facet prism, independent frost, mechanical iris and CRI enhancement to above 90, it provides the core projection and beam-shaping tools required for theaters, auditoriums, studios, concert stage

800W LED + 3°–40° zoom — flexible coverage for different throw distances and stage layouts
CMY + linear CTO — smooth color mixing with additional color temperature control
4-blade framing system — independent blade control with ±60° framing module rotation
CRI enhancement to >90 — improved color reproduction when skin tones, scenery or camera work matter

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection: We Keep Buyer Information Completely Confidential!

Function Description

The LM800M MINI is built for projects that need full framing, projection and color-control functions without stepping away from an 800W LED platform. Its 3°–40° zoom range adapts to different throw distances and stage layouts, while CMY color mixing and linear CTO give operators more control over both saturated colors and natural-looking stage tones.

The 4-blade framing system allows each blade to be positioned independently, with the complete module rotating ±60° for precise beam shaping. Rotating gobos, a 3-facet prism, independent frost and a 10–100% mechanical iris add more projection options, while 16-bit pan/tilt, automatic position correction and RDM simplify programming, positioning and daily operation.

Application Scenarios

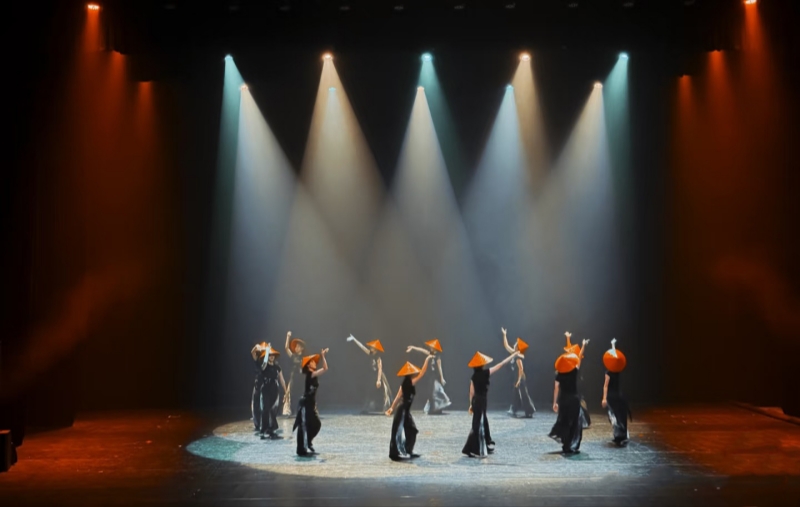

Theatrical & Stage Productions

Crisp gobo projection and precise framing for productions where shape and focus matter as much as color.

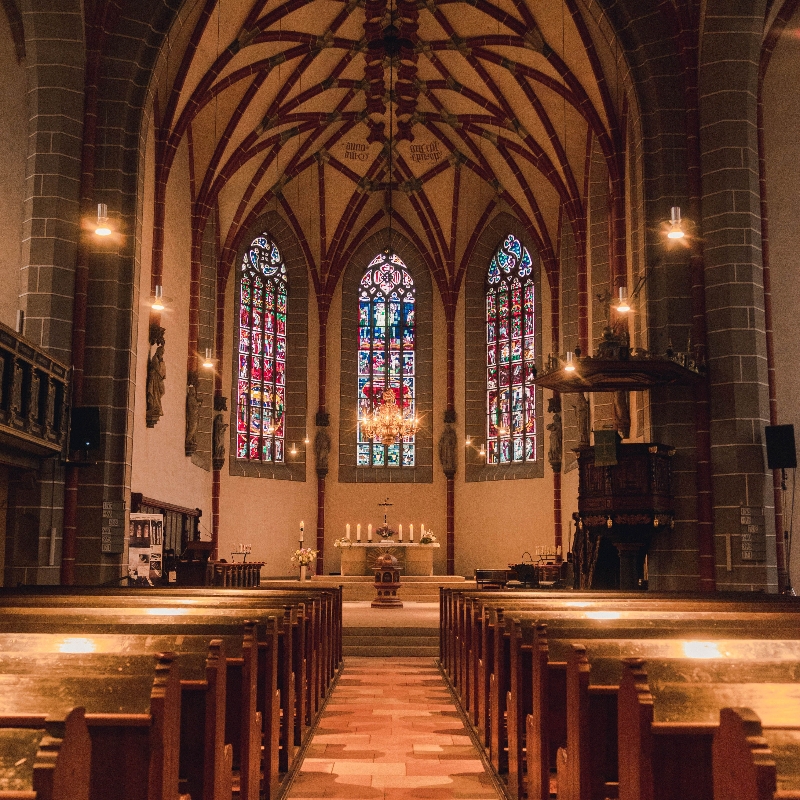

Houses of Worship

Quiet, steady operation for services and events where consistent, distraction-free lighting is the priority.

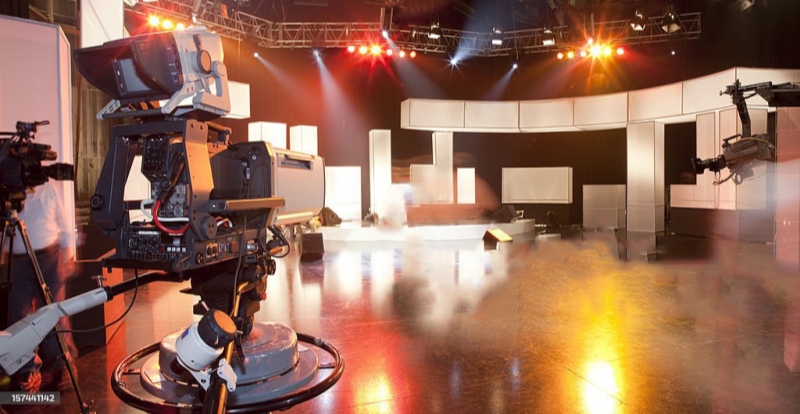

TV & Broadcast Studios

Controlled beam shaping keeps light exactly where it's needed on set, without spill onto cameras or talent.

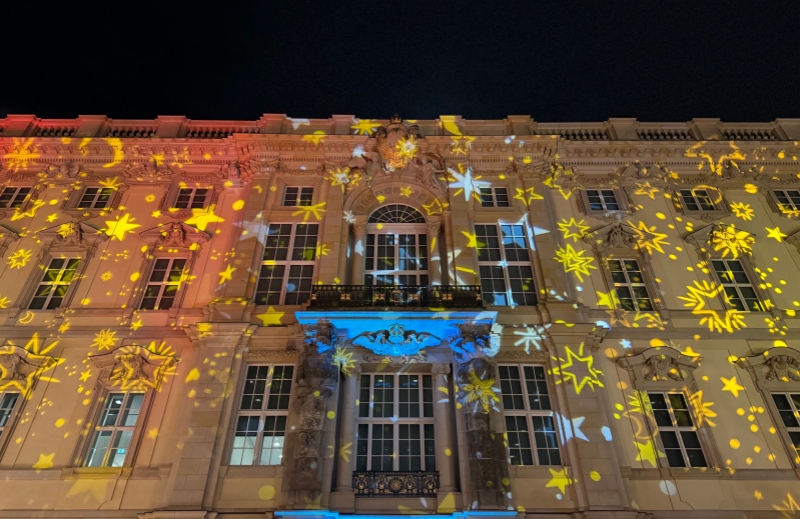

Architectural Gobo Projection

Custom gobo patterns and logo projection for branded events, building displays, and retail installations.

Specification

Model	LM800M	Light Source	800W LED
Rated Life	20,000 Hours	CRI	>70
CRI Enhancement	CRI Enhancement Filter Increases CRI to >90	Input Voltage	AC 100–240V, 50/60Hz
Rated Power	1000W	Zoom Range	3°–40°
Focus	Motorized Linear Focus via DMX	Frost	Independent Frost
Color Wheel	7 Colors + Linear CTO	CMY	Independent CMY Color Mixing with Smooth, Continuous Adjustment
Fixed Gobo Wheel	4 Fixed Gobos + 1 Dynamic Effect Gobo + Open	Rotating Gobo Wheel	6 Rotating Glass Gobos, Independent Bi-Directional Rotation
Custom Gobos	Available	Prism	3-Facet Prism
Iris	10–100% Continuous Mechanical Iris	Dimmer	0–100% Linear Dimming
Strobe	0–25Hz	Framing System	4-Blade Framing System
Blade Control	Independent Direction and Angle Control for Each Blade	Blade Closure	Each Blade Can Fully Close Across the Beam
Framing Module Rotation	±60°	Pan / Tilt	540° / 270°, 16-Bit Resolution
Position Correction	Automatic Pan/Tilt Position Correction	Pan/Tilt Lock	Precision Pan and Tilt Locking System
Control Protocol	DMX512 / RDM	Operating Modes	DMX / Auto / Sound Active / Master-Slave

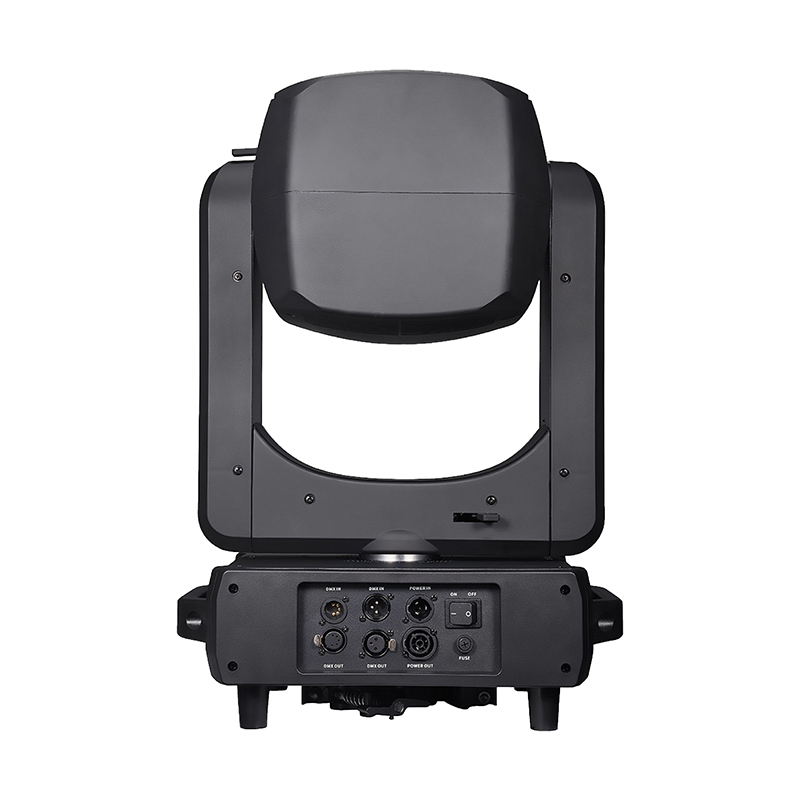

DMX Channels	39CH	Power Connection	powerCON Input / Output
DMX Connection	3-Pin & 5-Pin DMX Input / Output	Housing Material	Flame-Retardant, High-Temperature-Resistant Nylon Engineering Plastic
IP Rating	IP20	Operating Temperature	-20°C to 40°C
Net Weight	28 kg	Product Type	MINI 800W LED Framing Moving Head

Details & Features

What's in the Box

• DMON LM800M MINI Moving Head (800W LED)
- •Signal Cable
- •Power Cable
- •1 Set of Omega Clamps
- •User Manual
Flight case available as an optional accessory.

Frequently Asked Questions

What makes the LM800M different from a standard 800W framing moving head?

The LM800M is positioned as a MINI 800W framing fixture while retaining the main functions expected from a full framing moving head, including CMY, linear CTO, 3°–40° zoom, four-blade framing, rotating gobos, frost, iris and RDM.

How does the LM800M framing system work?

The LM800M uses four independently controlled framing blades. Each blade can adjust its direction and angle separately, and the complete framing module rotates ±60° for more precise beam shaping.

What is the zoom range of the LM800M?

The LM800M provides a 3°–40° zoom range, allowing operators to adjust the beam for different projection distances, stage sizes and lighting positions.

How does the CRI enhancement work?

The standard CRI is above 70. A CRI enhancement filter can increase it to above 90 when better color reproduction is required for skin tones, costumes, scenery or camera applications.
