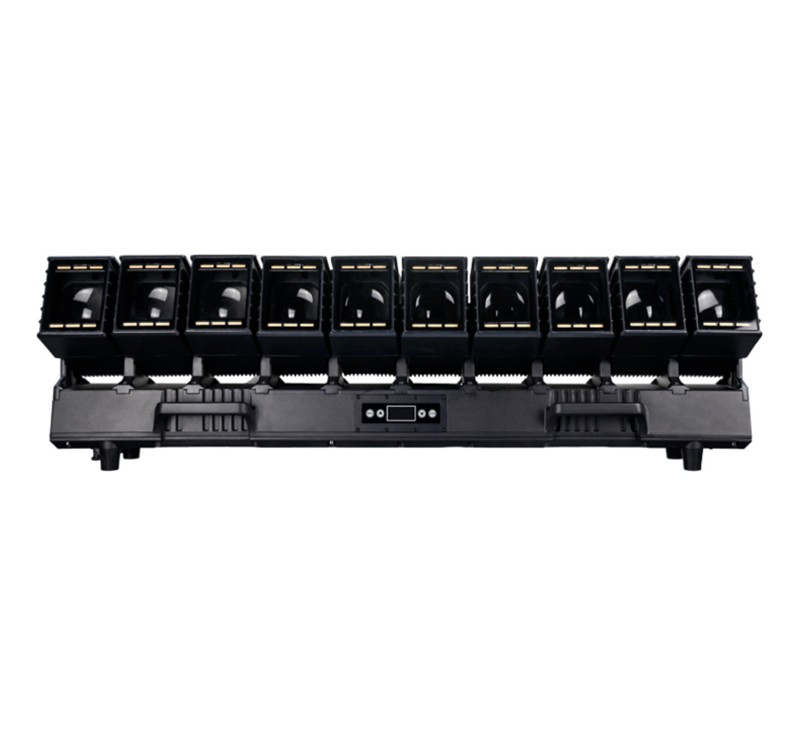

DMON LP1080F 10×80W Outdoor Waterproof Linear Moving Arm Light
The Dmon LP1080F is an IP65-rated outdoor waterproof linear moving arm light combining a 10×80W RGBW array with 720 warm and cool white pixel LEDs. With individual arm swing movement and up to 282 DMX channels, the LP1080F produces dynamic, wave-like array effects built to withstand direct outdoor exposure.
- IP65 rated — true outdoor waterproof protection, no rain cover required
- Individual arm swing movement — dynamic array effects beyond a fixed linear bar
- 720 warm/cool white pixel LEDs + 10×80W RGBW array — layered color and white-light effects in one fixture
- Up to 282 DMX channels — fine-grained control for complex pixel-mapped shows
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Most moving bar fixtures are built for indoor use and need a rain cover the moment a show moves outdoors. The LP1080F is IP65 from the factory, built to sit in an exposed outdoor rig through wind and rain without extra weatherproofing or downtime.
A fixed linear bar produces the same straight-line look regardless of the show. The LP1080F's individual arm swing movement lets each unit move independently, creating dynamic wave-like array effects across a row of fixtures that a static bar can't replicate.
Application Scenarios
Specification
| Light Source | 10 × 80W RGBW 4-in-1 LED; 360 × 2016 Warm White LEDs; 360 × 2016 Cool White LEDs | Voltage | 36V 18A + 24V 15A |
| Power Consumption | 880W | Control Modes | DMX512 / Sound / Auto |
| DMX Channels | 29 / 56 / 144 / 216 / 262 / 282 CH | Dimming | 32-bit ultra-smooth linear dimming 0–100% |
| Strobe Frequency | 1–30Hz | Movement | Individual arm swing movement |
| Working Temperature | -30°C to 50°C | Housing | Metal, black finish |
| IP Rating | IP65 | Connections | DMX512 I/O, Power I/O |
| Product Size | 1009 × 153 × 331 mm | Net Weight | 28.46 kg |
Details & Features
What's in the Box
- • DMON LP1080F Moving Arm Light (10 × 80W RGBW LED)
- • Signal Cable
- • Power Cable
- • Hanging Clamp
- • User Manual
Flight case available as an optional accessory.
Frequently Asked Questions
Is the LP1080F truly rated for outdoor use?
Yes. The LP1080F is IP65-rated from the factory, built for direct exposure to rain and outdoor conditions without an additional rain cover.
What does the individual arm swing movement let me do?
Each fixture's arm can swing independently, so a row of LP1080F units can create wave-like array effects across a rig — an effect a fixed linear bar can't produce on its own.
Can the LP1080F be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with multiple selectable channel modes (29 CH up to 282 CH), compatible with any DMX-compliant console on the market.
Does the LED source need to be replaced like a traditional lamp?
No. The LP1080F uses LEDs with no scheduled lamp replacement cycle required under normal use, unlike traditional discharge-lamp fixtures.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
