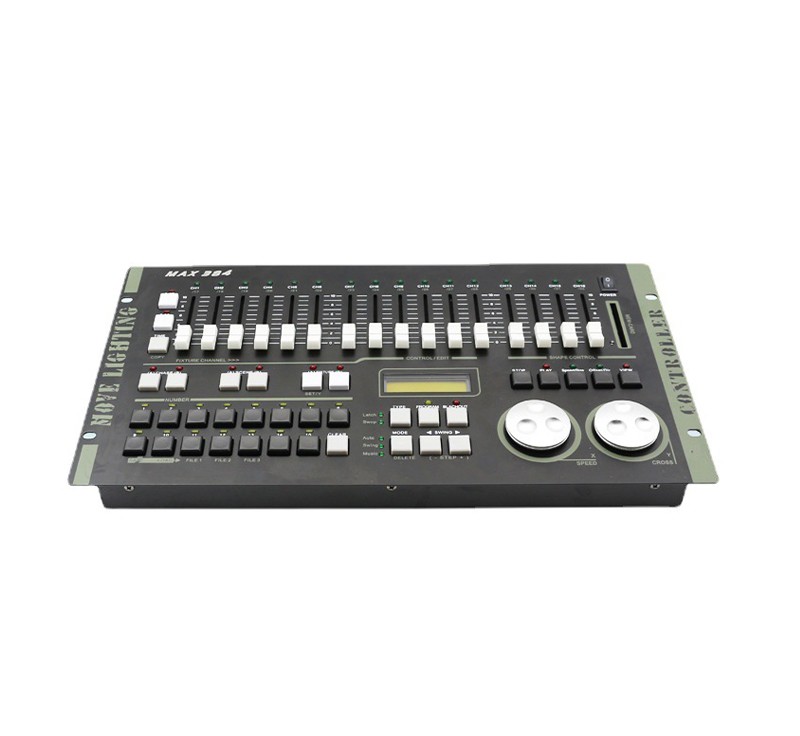

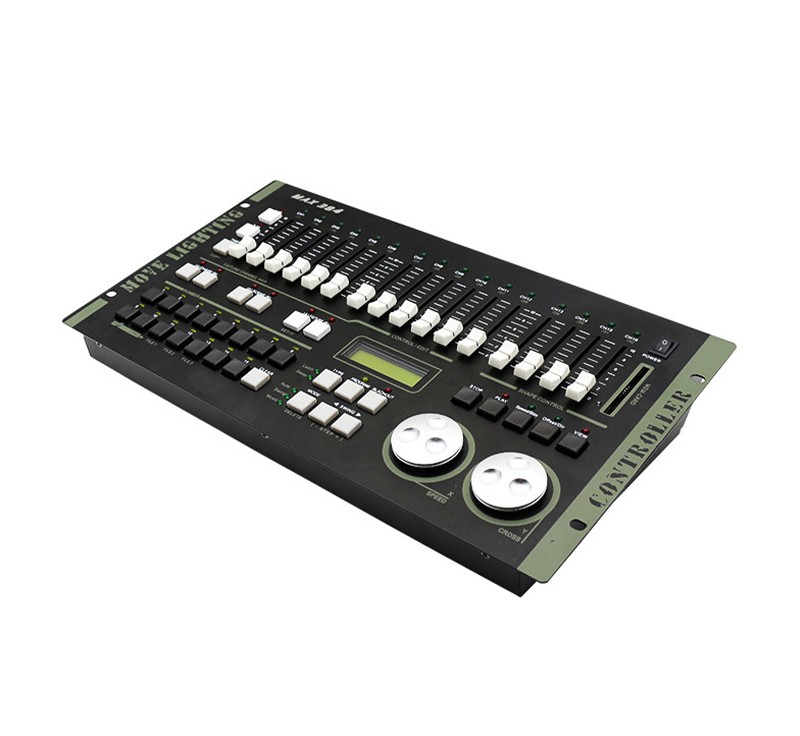

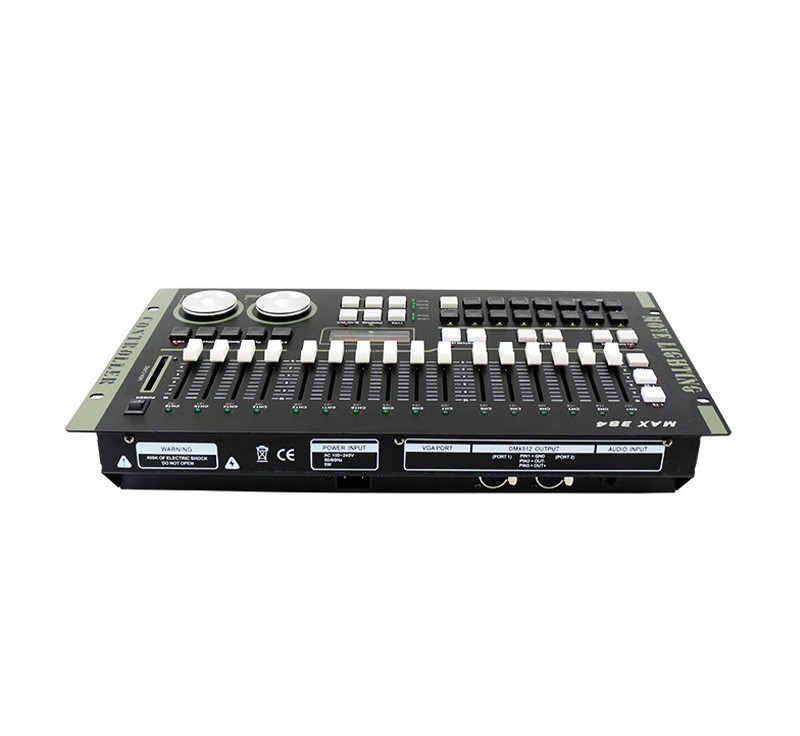

DMON DMX384 384-Channel Lighting Control Console
The Dmon DMX384 is a 384-channel lighting control console supporting up to 30 moving fixtures with dynamic addressing, a built-in SHAPE generator for automated pattern effects, and 30 chase programs with up to 100 steps each. With flash memory card storage and photoelectric isolation on the signal output, the DMX384 gives operators a full-featured console for programming complex, multi-fixture sho
- Built-in SHAPE generator — automated circle, wave, and figure-8 patterns without manual programming
- Supports up to 30 moving fixtures — dynamic addressing simplifies patching larger rigs
- 30 chase programs, up to 100 steps each — build extensive, multi-scene sequences in advance
- Photoelectric isolation on DMX output — protects the console from signal-line electrical faults
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Manually programming circular or wave-style movement patterns for multiple moving heads is time-consuming. The DMX384's built-in SHAPE generator produces circle, gradient circle, line, figure-8, and wave patterns automatically, with speed, size, expansion, and direction all independently adjustable.
A signal fault on the DMX line can potentially damage sensitive control electronics. The DMX384 uses photoelectric isolation on its signal output, protecting the console itself from electrical issues originating on the fixture side of the line.
Specification
| DMX Standard | DMX512 / 1990 | DMX Control Channels | 384 |
| Output Protection | Photoelectric isolation signal output | Max Moving Lights | Up to 30 fixtures |
| Channels per Fixture | Up to 32 channels (dynamic fixture address setting) | Built-in SHAPE Generator | Circle / gradient circle / line / figure-8 / wave, etc. |
| SHAPE Parameters | Speed / size / expansion / direction adjustable independently | Programs (Chases) | 30 programs, up to 100 steps per program |
| Playback Control | Auto speed / SWING manual beat / Music sync | Simultaneous Playback | Runs 2 chases simultaneously + 30 preset scenes |
| Data Storage | MEM-CARD interface (flash memory card) | Display | Backlit LCD displays operating parameters |
| Power Failure Memory | Yes (shutdown data retention) | Power Supply | AC 90–250V, 50/60Hz (switching power supply) |
| Dimensions | 485 × 267 × 85 mm | Net Weight | 4.8 kg |
Frequently Asked Questions
What does the SHAPE generator do?
It automatically generates movement patterns — circles, waves, figure-8s, and more — for moving fixtures, with speed, size, expansion, and direction adjustable independently, removing the need to program each movement point manually.
How many moving heads can this console control?
Up to 30 moving fixtures, each addressable with up to 32 channels, within the console's total 384-channel capacity.
Can shows be saved and reloaded later?
Yes. The console uses a MEM-CARD flash memory interface for saving and loading show data, alongside power failure memory that retains settings after a shutdown.
Can chases be synced to music?
Yes. Playback control includes auto speed, manual beat (SWING), and music sync modes, giving flexibility in how chases are triggered during a show.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
