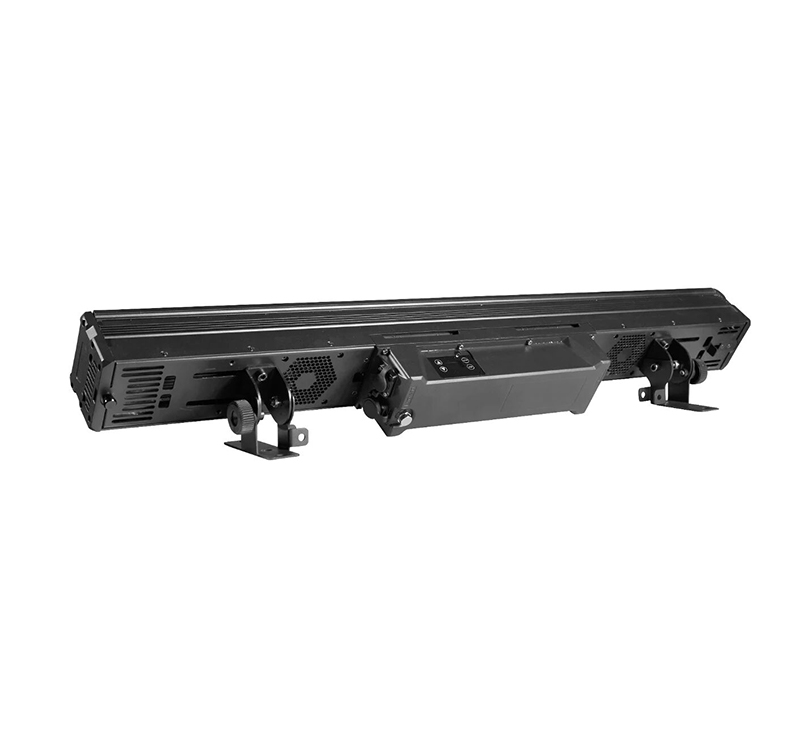

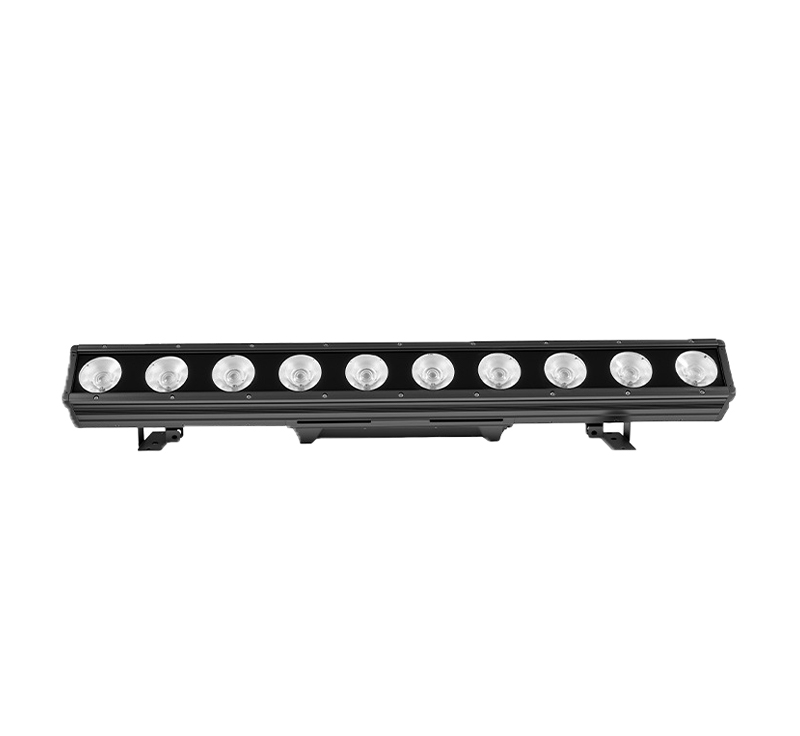

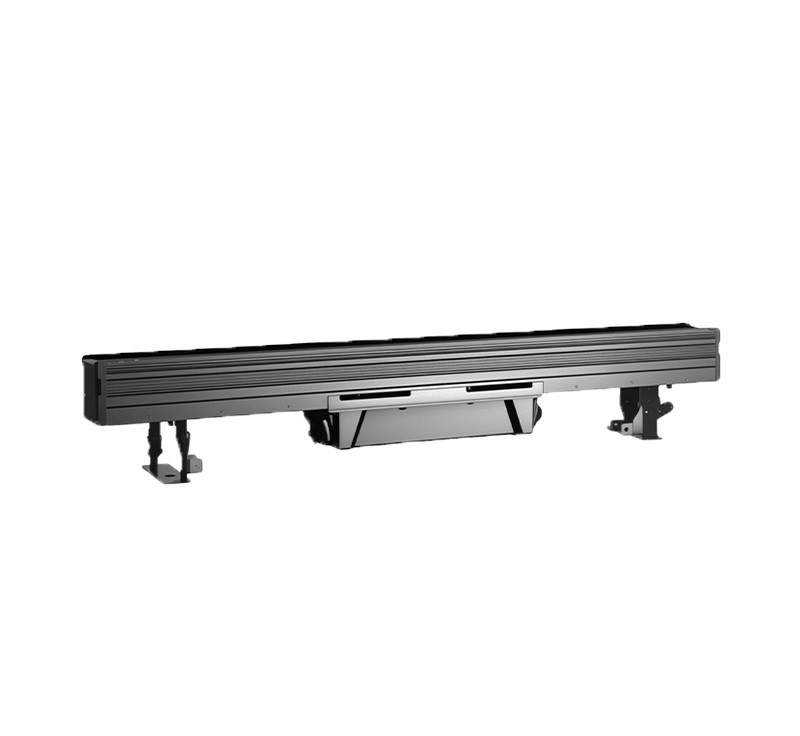

DMON X1050 Outdoor 10×50W Linear Matrix COB LED Light
The Dmon X1050 is an IP65-rated outdoor linear matrix COB LED light with 10×50W dual-color-temperature LEDs, delivering tunable white output from 3200K to 6500K. With flicker-free dimming and DMX512/RDM control, the X1050 provides even, seamless color washing for building facades and stage backdrops.
- Tunable white (3200K–6500K) — warm to cool color temperature without gels
- Flicker-free dimming (1.2–25 kHz) — camera-ready output for broadcast and video work
- IP65 waterproof — true outdoor protection, no rain cover required
- Quick-release split connectors — faster assembly for multi-unit linear installations
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Switching between warm and cool lighting usually means swapping gels or fixtures. The X1050's dual-color-temperature COB LEDs adjust from 3200K to 6500K directly, so operators can match the venue's lighting needs without extra accessories.
Filming under LED fixtures often means dealing with visible flicker on camera. The X1050's dimming runs at 1.2–25 kHz, keeping output flicker-free across a wide dimming range — so the fixture stays camera-ready without needing to match frame rates manually.

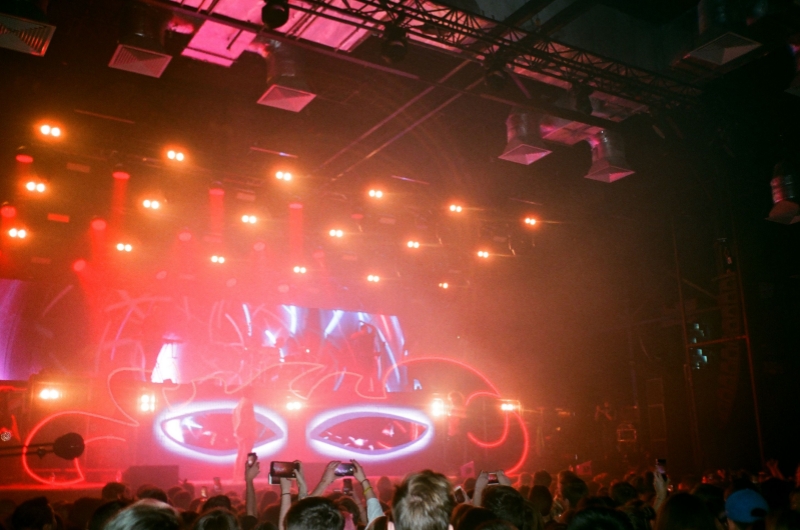

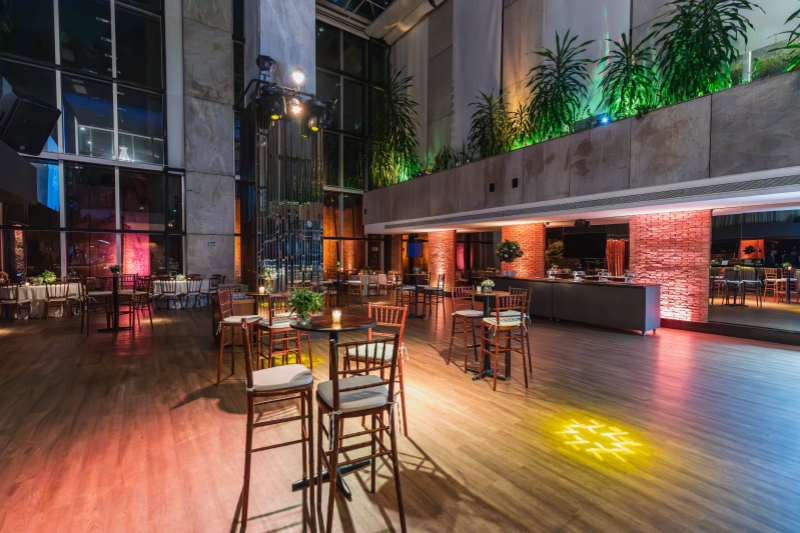

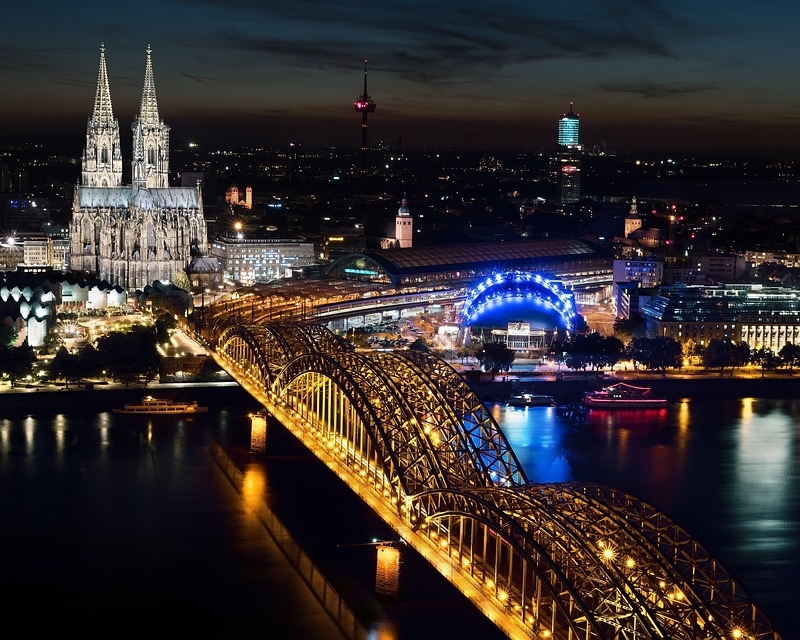

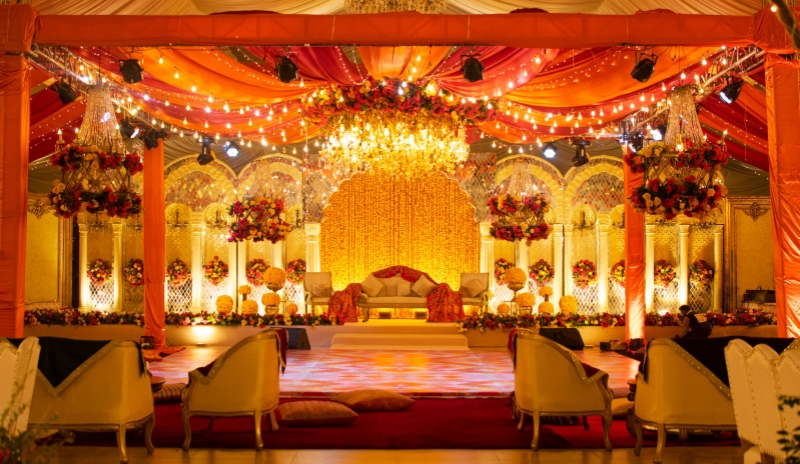

Application Scenarios
Specification
| Light Source | 10 × 50W COB LEDs (3200K + 6500K 2-in-1) | Rated Lifetime | Approx. 50,000 hours |
| Input Voltage | AC 90–240V, 50/60Hz | Total Power Consumption | 500W |
| Color Options | Tunable White (3200–6500K), RGBW optional | Beam Angle | 36° (standard), 60° optional |
| Strobe | Electronic strobe 0.3–25 flashes/sec | CCT Range | 3200–6500K (OTO) |
| Dimming | 0–100% electronic linear dimming, adjustable gamma curve, PWM 1.2K–25K, flicker-free for video | Control Modes | 11CH (compact) / 42CH (standard) |
| Control Protocols | DMX512, RDM | Control Interfaces | DMX512 (3-pin, optional 5-pin), power daisy-chain socket |
| Display | 0.96-inch LCD touchscreen, bilingual menu, temperature & fault display | Cooling System | High-conductivity aluminum heatsink with intelligent fan control |
| Protection | Intelligent thermal protection with temperature-noise balance system | Installation (Horizontal) | Omega brackets for truss or floor mounting with tilt-lock base |
| Installation (Vertical) | Vertical adapter for hanging installation | Split Connector | Structural connection with two quick-release pins |
| IP Rating | IP65 (outdoor waterproof) | Packaging | Waterproof & shockproof flight case or carton |
| Net Weight | 5.8 kg | Fixture Dimensions | 952 × 80 × 106 mm |
Frequently Asked Questions
Is the X1050 truly rated for outdoor use?
Yes. The X1050 is IP65-rated, built for direct exposure to rain and outdoor conditions without needing a rain cover.
Can the X1050 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with selectable 11 CH or 42 CH modes, and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
Can multiple X1050 units be linked together?
Yes. The fixture supports power daisy-chain connections and quick-release split connectors, simplifying assembly across multiple units for long linear installations.
Does the LED source need to be replaced like a traditional lamp?
No. The X1050 uses COB LEDs rated for approximately 50,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
