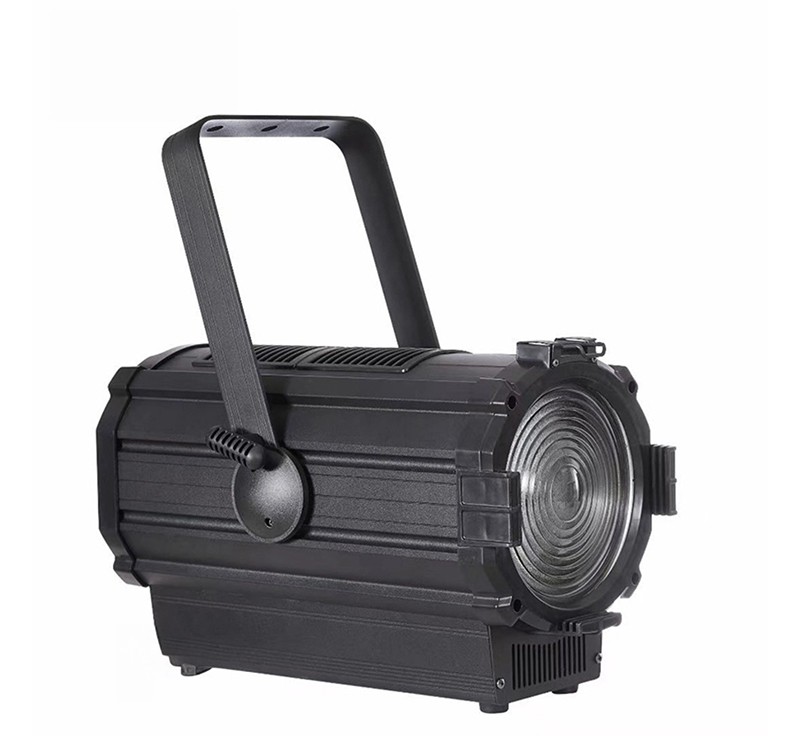

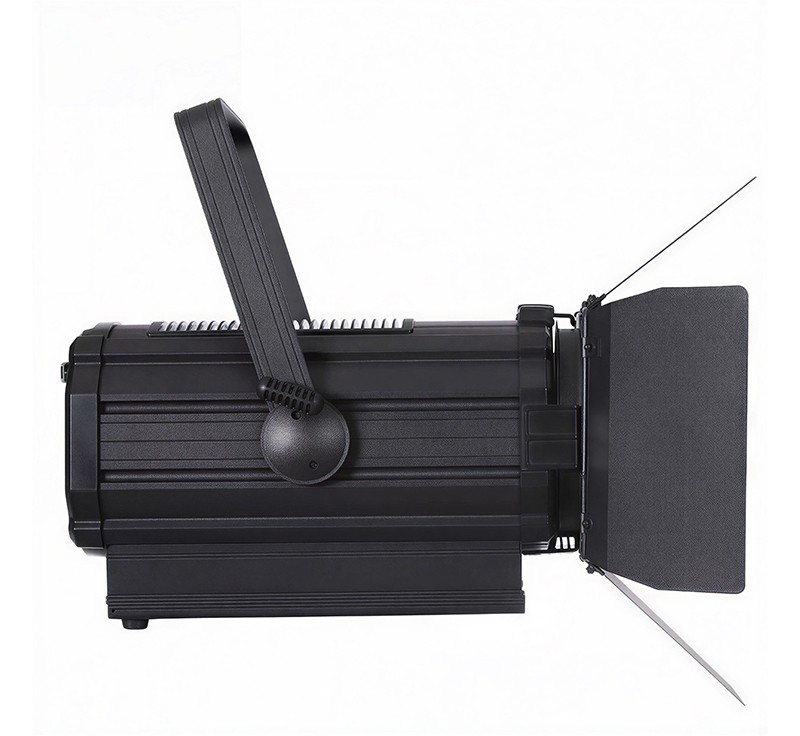

DMON JT300 300W LED Spotlight
The Dmon JT300 is a 300W LED spotlight with electric focus across a 15°–55° beam angle range, delivering CRI>95 color accuracy. With daisy-chain power and signal linking and DMX512/Master-Slave control, the JT300 offers precise, high-quality illumination for theatrical and studio applications.
- Electric focus (15°–55°) — remote beam adjustment from the console without manual fixture access
- CRI>95 — exceptional color accuracy for productions where color fidelity matters
- 100 Hz refresh rate — reduces visible flicker for camera and broadcast use
- Daisy-chain power and signal linking — simplified cabling across multiple units
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Manually adjusting beam angle means physically accessing each fixture, which isn't always practical for rigged or truss-mounted units. The JT300's electric focus lets operators adjust the beam remotely from the console, covering the full 15°–55° range without needing to reach the fixture.
Filming under LED fixtures can introduce visible flicker depending on the camera's frame rate. The JT300's refresh rate of over 100 Hz helps reduce the chance of visible flicker on camera compared to lower-refresh-rate fixtures.
Application Scenarios
Specification
| Light Source | 300W COB LED | CRI | Ra >95 |
| Input Voltage | AC 100–240V, 50/60Hz | Power Consumption | 320W |
| Color Temperature | 3200K / 5600K | Refresh Rate | >100 Hz |
| Beam Angle | 15°–55° (electric focus) | Driver Mode | Constant current driver |
| Control Modes | DMX512, Auto, Master-Slave | DMX Channels | 2CH / 5CH |
| Dimming | 0–100% electronic linear dimming | Strobe | 1–25 Hz |
| Cooling System | Forced-air cooling | Housing Material | Die-cast aluminum |
| Housing Color | Black | IP Rating | IP20 (indoor use) |
| Operating Temperature | -20°C to +40°C | Daisy Chain | Power and signal linking supported |
| Packing Size | 410 × 390 × 470 mm | Net Weight | 11 kg |
Details & Features
What's in the Box
- • Power Cable
- • Signal Cable
- • Hanging Clamp
- • User Manual
Frequently Asked Questions
Can the JT300 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with 2 CH or 5 CH modes, compatible with any DMX-compliant console on the market.
Can multiple JT300 units be linked together?
Yes. The fixture supports daisy-chain power and signal linking, simplifying cabling across a row of fixtures.
Is the zoom motorized or manual?
The JT300 uses electric focus, allowing operators to adjust the beam angle remotely via DMX rather than at the fixture.
Does the LED source need to be replaced like a traditional lamp?
No. The JT300 uses a COB LED source with no scheduled lamp replacement cycle required under normal use, unlike traditional discharge-lamp fixtures.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model是discontinued.
