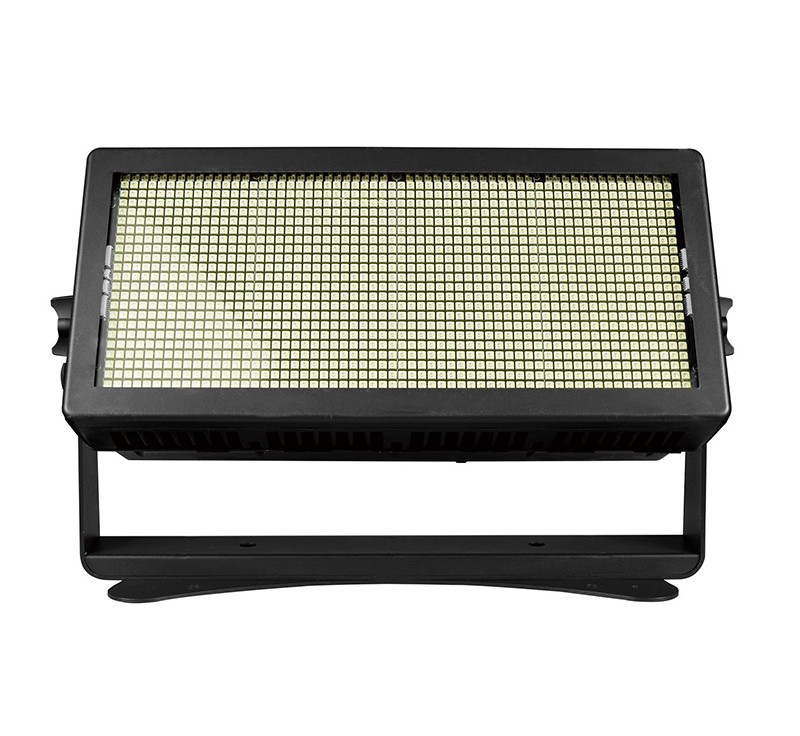

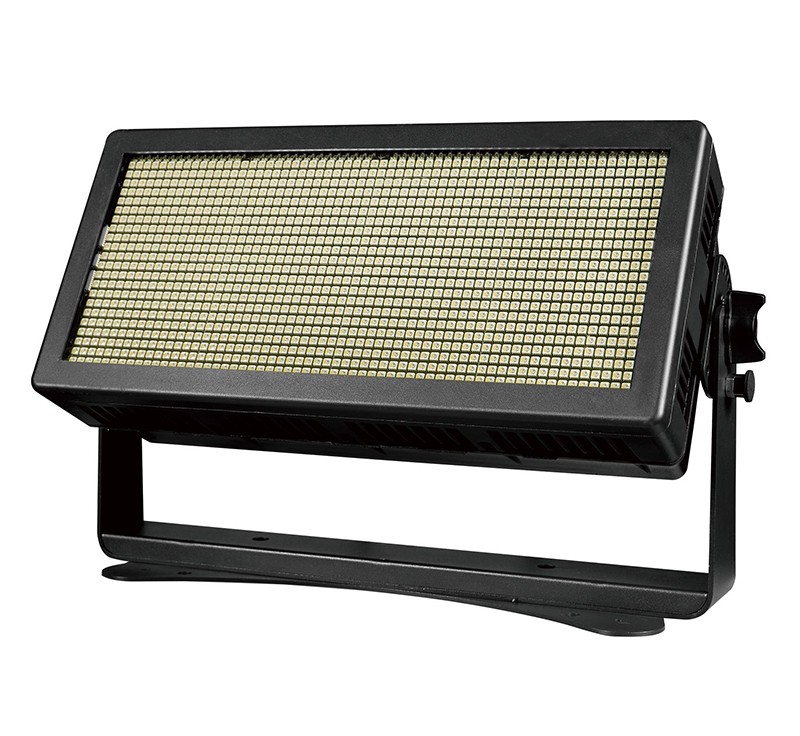

DMON PCF3000 RGBW 4-in-1 IP65 Waterproof LED Strobe Light
The Dmon PCF3000 is an IP65-rated waterproof RGBW 4-in-1 LED strobe light with 1320 LEDs delivering high-output color and white strobe effects. With sound-active built-in programs in master-slave mode and DMX512/RDM control, the PCF3000 is built for reliable outdoor strobe performance.
- IP65 waterproof — reliable operation in outdoor concert and festival conditions
- 1320 RGBW LEDs — high-density array for intense, uniform strobe output
- Built-in sound-active programs (master-slave mode) — runs standalone without a DMX console when needed
- RDM support — remote monitoring and status checks from the console
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Not every setup has a full DMX rig running. The PCF3000's built-in sound-active programs let a group of fixtures run in master-slave mode, reacting to music without needing a lighting operator or console.
A sparse LED array can look uneven at high output. The PCF3000 packs 1320 individual LEDs into the fixture, giving a dense, uniform strobe flash rather than a scattered or patchy effect.
Application Scenarios
Specification
| Light Source | 1320 pcs × 0.8W RGBW LEDs | Color Temperature (White) | 6500–7500K |
| Input Voltage | AC 110–240V ±10%, 50/60Hz | Dimming | 0–100% linear dimming |
| Strobe Frequency | 1–30 Hz | Operating Modes | DMX512, Master-Slave, Auto |
| Sound Control | Built-in programs available in master-slave mode | Control Protocols | DMX512, RDM |

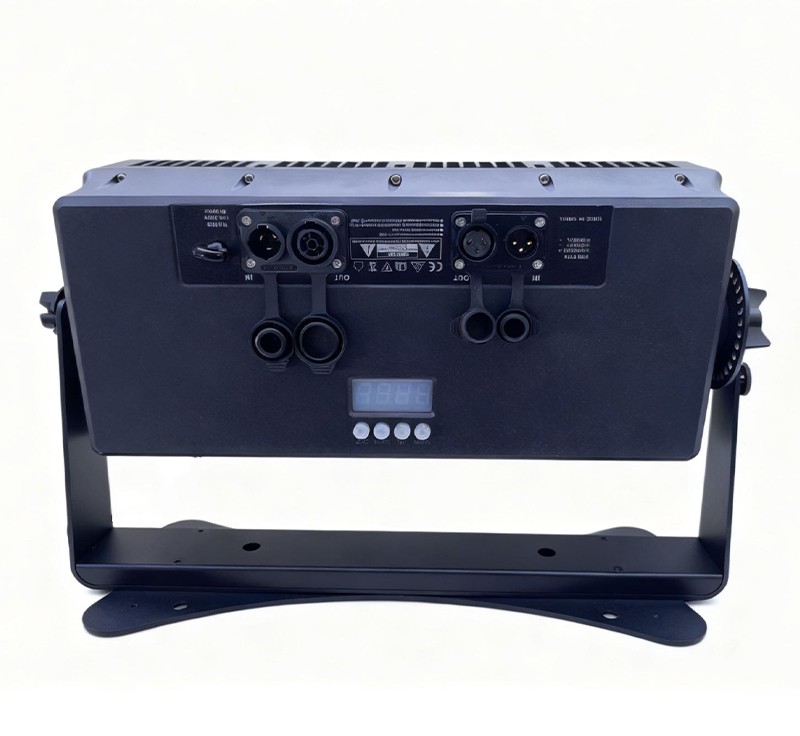

| DMX Channels | Default 9CH / Optional 6CH / 38CH | Data Connection | Xishang 3-pin XLR input/output |
| IP Rating | IP65 waterproof | Net Weight (Fixture) | 11.5 kg |
| Single Carton (Inner) | 560 × 240 × 390 mm, 13.7 kg | Dual Carton (2 pcs) | 580 × 510 × 415 mm, 28 kg |
| Flight Case (4 pcs with brackets) | 890 × 550 × 660 mm, 61 kg |
Details & Features
Frequently Asked Questions
Is the PCF3000 truly rated for outdoor use?

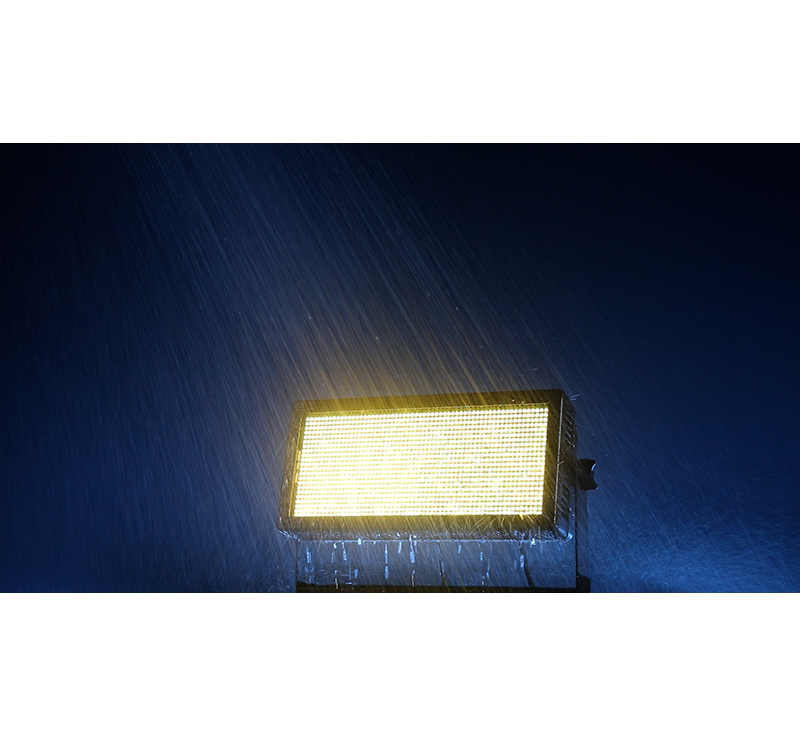

Yes. The PCF3000 is IP65-rated, built for direct exposure to rain and outdoor conditions without needing a rain cover.
Can the PCF3000 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with selectable 6 CH, 9 CH, or 38 CH modes, and supports bi-directional RDM, compatible with any DMX/RDM-compliant console on the market.
Can this fixture run without a DMX console?
Yes. In master-slave mode, the fixture's built-in sound-active programs react to music, useful for setups without a dedicated lighting operator.
Does the LED source need to be replaced like a traditional lamp?
No. The PCF3000 uses LEDs with no scheduled lamp replacement cycle required under normal use, unlike traditional discharge-lamp fixtures.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
