DMON CB200 LED Profile Light
The Dmon CB200 is a manual zoom LED profile light with CRI≥95 color accuracy, available in white, tunable white, and RGBW color source configurations. With a 17°–50° manual zoom range and multiple selectable dimming curves, the CB200 delivers precise, high-quality illumination for indoor theatrical and studio applications.
- CRI≥95 — exceptional color accuracy for productions where color fidelity matters
- Three light source options (White/Tunable White/RGBW) — choose the configuration that matches your project
- 17°–50° manual zoom — wide adjustment range from a single fixture without swapping lenses
- 4 selectable dimming curves — matches dimming behavior to different console setups
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Different projects call for different color needs — some just need clean white light, others need adjustable color temperature or full color mixing. The CB200 is available in white, tunable white, and RGBW versions, letting buyers choose the light source that matches their specific project instead of overpaying for capability they don't need.
Different consoles handle dimming curves differently, and a mismatched curve can make fades look uneven. The CB200 offers 4 selectable dimming curves, so operators can match the fixture's response to their console's programming.
Application Scenarios
Specification
| Power Options | 200W / 300W | CRI | Ra ≥95 |
| Input Voltage | AC 90–240V, 50/60Hz | Housing | Iron housing |

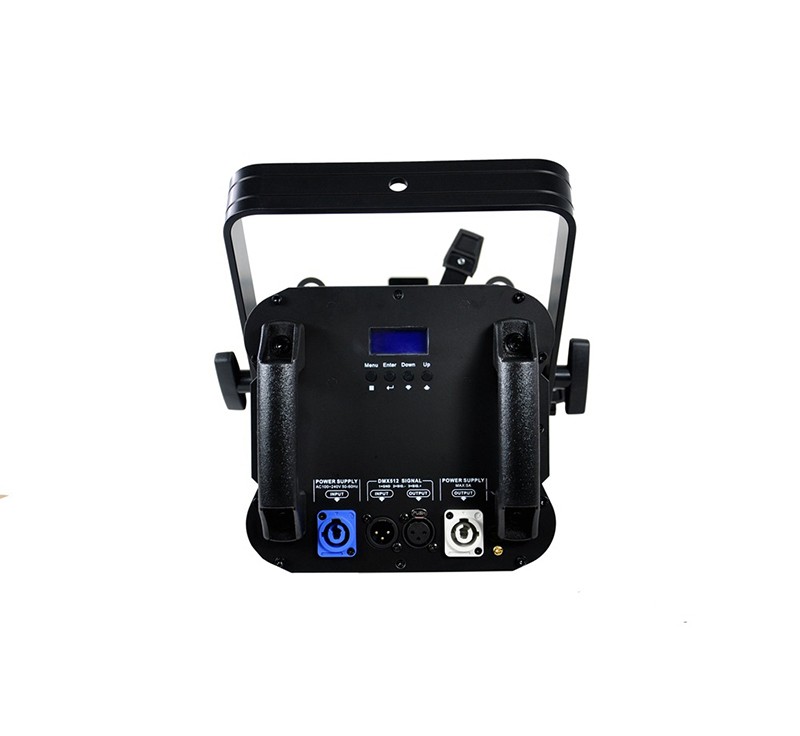

| Control Modes | DMX512 / Auto / Master-Slave | Display | LCD display with 4 touch buttons |
| Dimming Curves | 4 selectable dimming curves | Signal I/O | 3-pin XLR DMX512 input/output |
| Cooling System | Copper pipe + fan cooling | Working Temperature | -20°C to +40°C |
| IP Rating | IP20 | Manual Zoom Beam Angle | 17°–50° |
| White Version (200W) | 300W COB White LED, 3200K or 5600K, DMX 1/2/3CH | Tunable White Version (200W) | 200W COB Bi-color LED (3200K+5600K), DMX 4/7CH |
| RGBW Version (200W) | 200W COB RGBW LED, DMX 6/11CH | White Version (300W) | 300W COB White LED, 3200K or 5600K, DMX 1/2/3CH |
| Fixture Size | 640 × 280 × 280 mm | Packing Size | 740 × 360 × 370 mm |
| Net Weight | 11 kg | Gross Weight | 20 kg |
Details & Features
What's in the Box
- • Power Cable
- • Signal Cable
- • Hanging Clamp
- • User Manual
Frequently Asked Questions
Can the CB200 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with channel modes depending on the selected light source version (1/2/3 CH for white, 4/7 CH for tunable white, 6/11 CH for RGBW), compatible with any DMX-compliant console on the market.
Which light source version should I choose?
The white version suits simple, fixed color-temperature needs; the tunable white version allows adjusting between 3200K and 5600K; and the RGBW version adds full color mixing on top of white output. Confirm your preferred version at the time of order.
Is the zoom motorized or manual?
The CB200's zoom is manually adjusted at the fixture, covering a 17°–50° range without needing DMX control for the zoom function itself.
Does the LED source need to be replaced like a traditional lamp?
No. The CB200 uses an LED source with no scheduled lamp replacement cycle required under normal use, unlike traditional discharge-lamp fixtures.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
