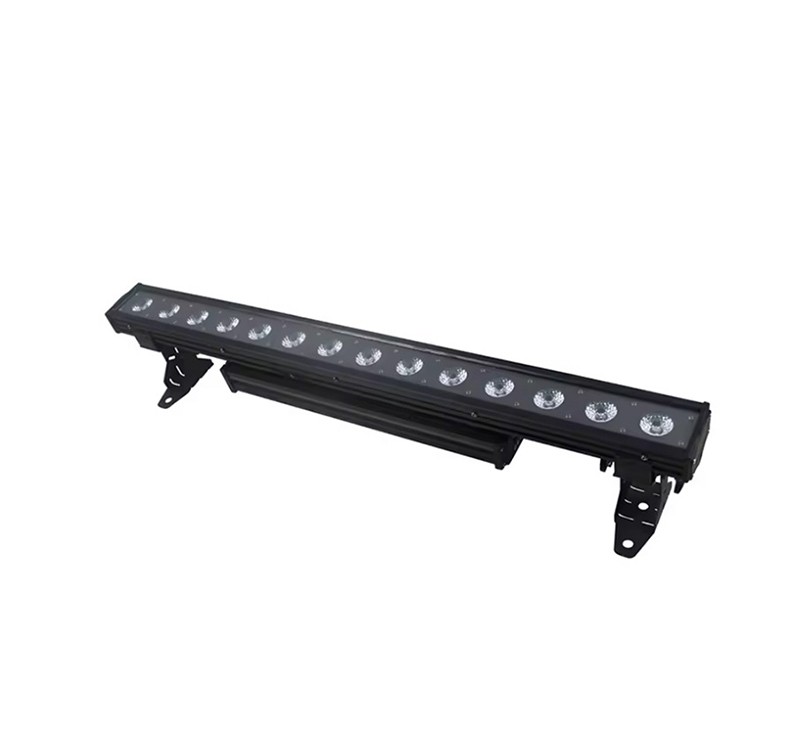

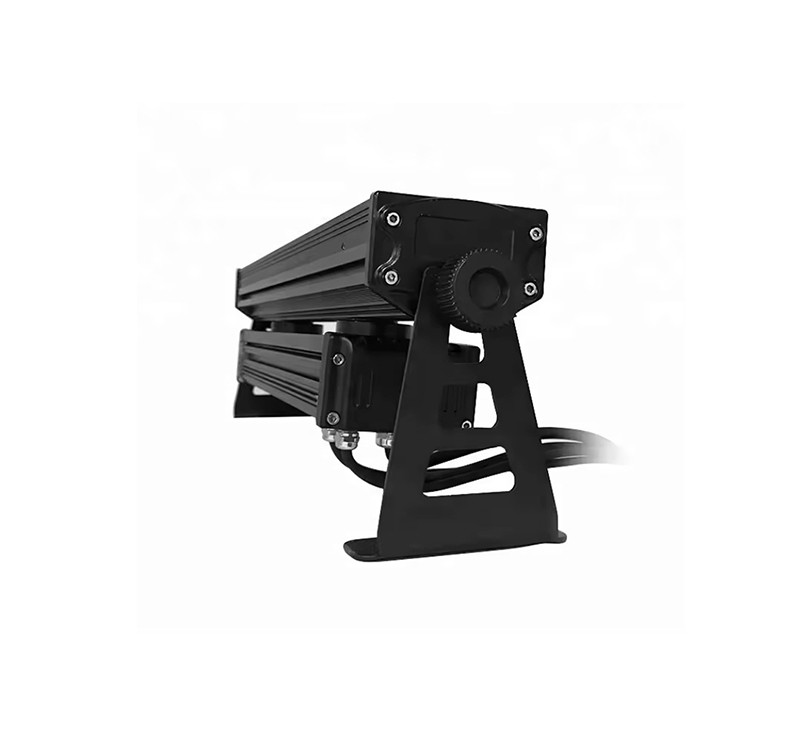

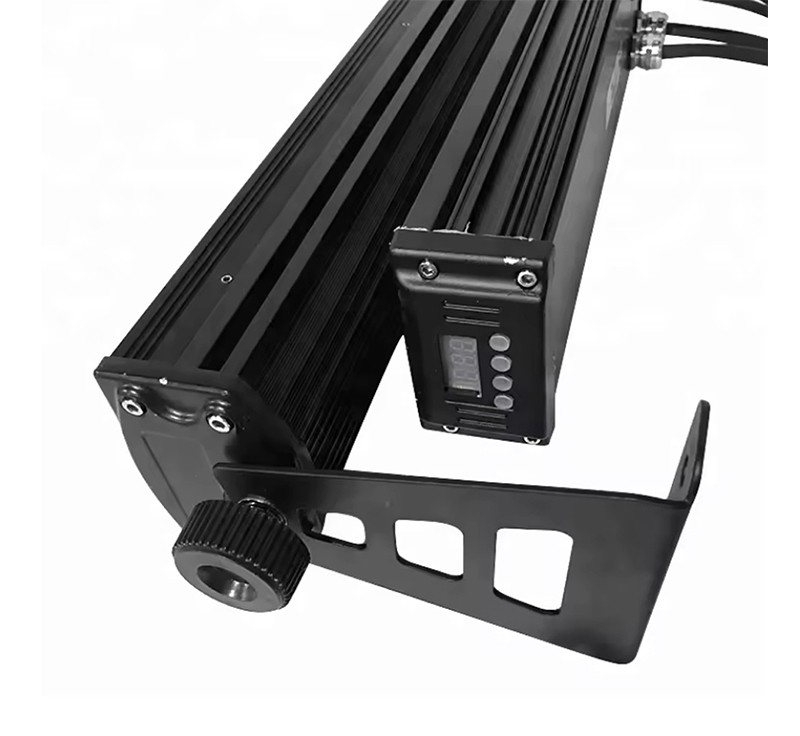

DMON X1430 Outdoor 14×30W Pixel Control LED Wall Washer Light
The Dmon X1430 is an outdoor 14×30W pixel control LED wall washer light with independent LED control, daisy-chain power and DMX connections, and IP65 waterproof housing. Built as a linear fixture, the X1430 delivers even coverage across building facades and long architectural surfaces.
- Independent pixel control — precise chase and pattern effects across the full fixture length
- IP65 waterproof — true outdoor protection, no rain cover required
- Daisy-chain power and DMX connections — simplified cabling across multiple units
- Split die-cast aluminum housing — durable construction for permanent outdoor installation
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Lighting a long building facade with individual par lights means rigging and wiring many separate units. The X1430's 1-meter linear body with independent pixel control covers more surface area per fixture, reducing the number of units needed for the same coverage.
Wiring multiple fixtures individually adds setup time and cable clutter. The X1430's daisy-chain power and DMX connections let units link directly to each other, simplifying cabling across a row of fixtures on a long facade.
Application Scenarios
Specification
| Light Source | 14 × 30W RGB LEDs | LED Lifetime | Approx. 50,000 hours |
| Input Voltage | AC 100–240V, 50/60Hz | Color Output | [TO CONFIRM] — Warm white light, CCT 3200K |
| Control Modes | DMX512, Master-Slave, Auto | DMX Channel Modes | 9 / 23 / 72 CH (digital display) |
| Dimming | Independent electronic linear dimming, 0–100% | Strobe | Independent electronic strobe 1–25Hz, random / pulse / sync / async |
| Power & Signal Connection | Power and DMX daisy-chain connection | Mounting | Single-yoke bracket, floor standing or truss mounting |
| Housing | Split design, full die-cast aluminum body | Protection | Intelligent temperature protection, safe and reliable operation |
| IP Rating | IP65 (outdoor waterproof) | Fixture Dimensions | 1000 × 200 × 250 mm |
| Net Weight | 12.8 kg | Gross Weight | 13.2 kg |
Frequently Asked Questions
Is the X1430 truly rated for outdoor use?
Yes. The X1430 is IP65-rated, built for direct exposure to rain and outdoor conditions without needing a rain cover.
Can the X1430 be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with selectable 9 CH, 23 CH, or 72 CH modes, compatible with any DMX-compliant console on the market.
Can multiple X1430 units be linked together?
Yes. The fixture supports daisy-chain power and DMX connections, allowing multiple units to link directly without individual home runs — useful for lighting a long building facade.
Does the LED source need to be replaced like a traditional lamp?
No. The X1430 uses LEDs rated for approximately 50,000 hours, significantly longer than a traditional discharge lamp, with no scheduled lamp replacement required under normal use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
