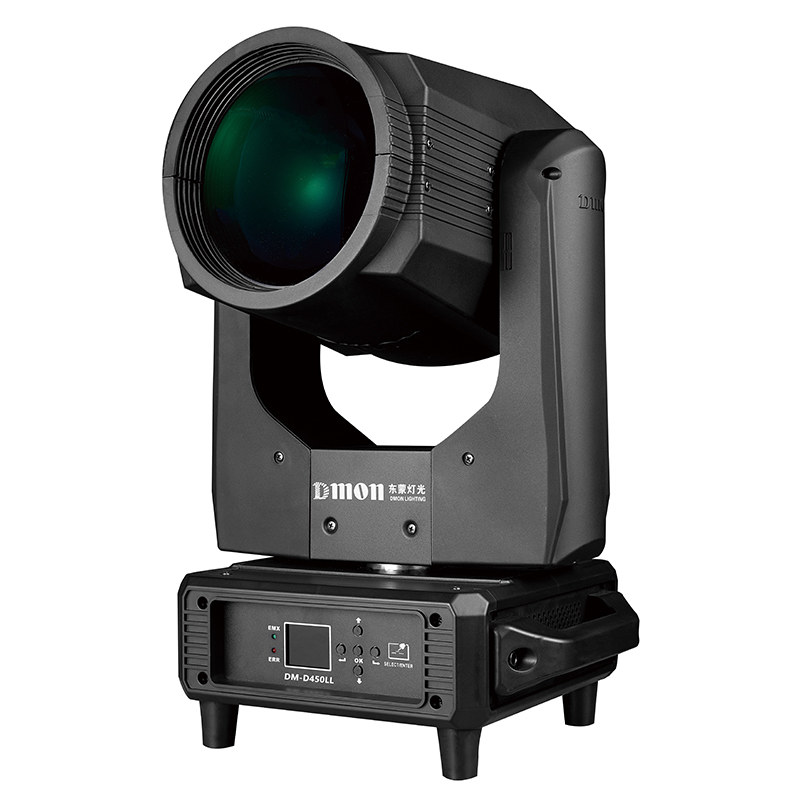

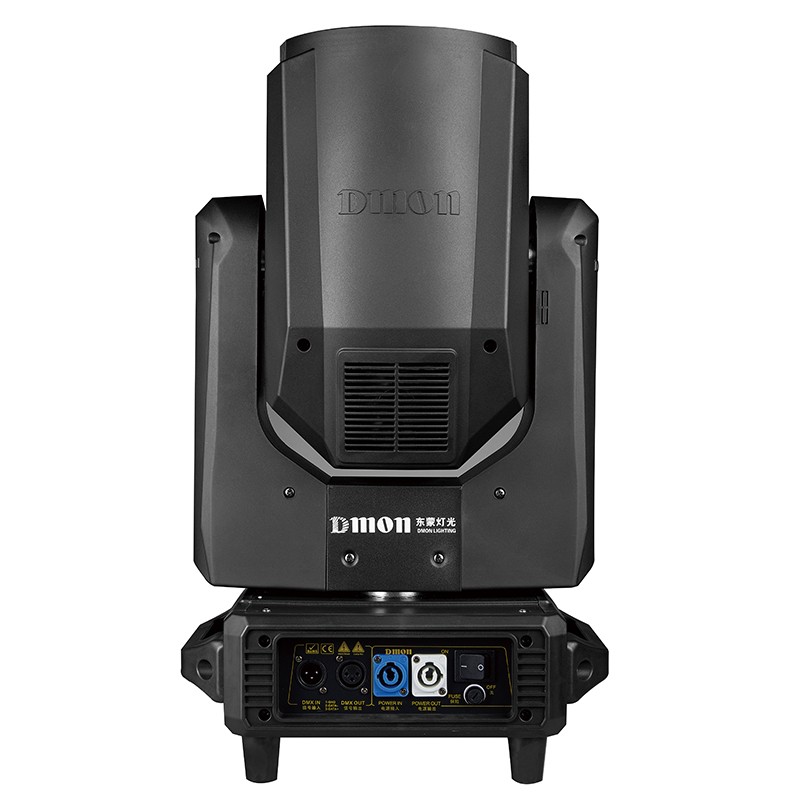

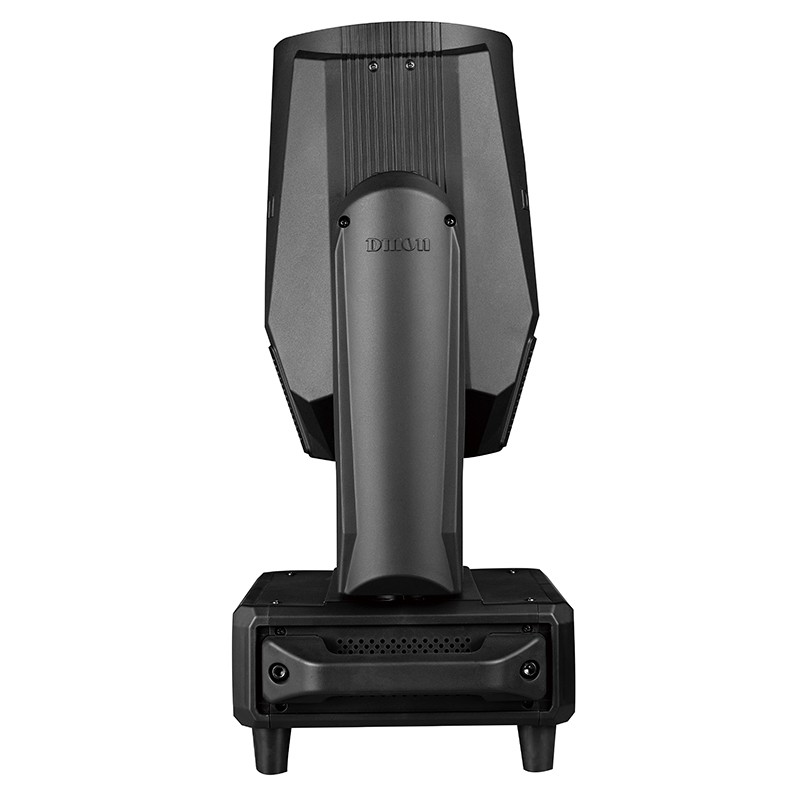

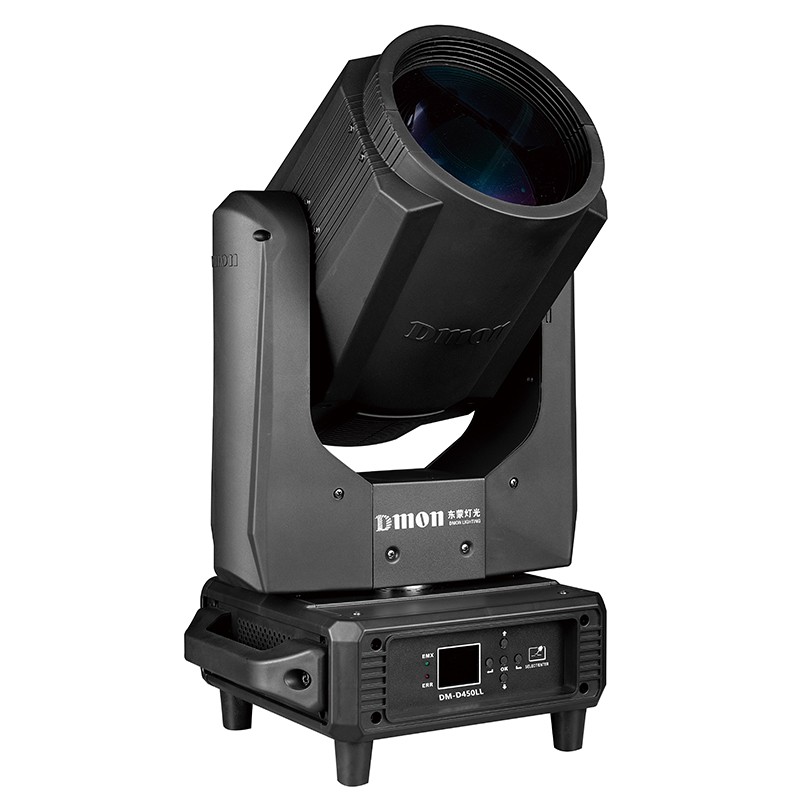

DMON D450LL Beam Moving Head Light with Philips MSD Platinum 300LL
The Dmon D450LL is a professional 450W beam moving head light delivering a razor-sharp parallel beam that cuts through haze and reaches the back of any large venue. Built for concerts, touring productions, and large-stage events. CE & RoHS certified — OEM available.
- Powerful 450W output — longer throw and higher brightness for large-scale venues
- 0°–3.8° ultra-narrow beam — reads clearly at the back of any large venue
- 14 colors · 13 gobos · dual prisms — full show variation in one fixture
- CE & RoHS certified, factory direct, OEM available
We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.
Function Description
Large venues push moving heads to their limits — dim output means the beam loses definition before it reaches the back rows. The D450LL is built for exactly that gap, holding a sharp, visible beam across arenas and large halls where lower-output fixtures start to fade.
Touring rigs lose power more often than anyone likes to admit. When that happens, most moving heads need to be manually recalibrated before the show can go on. The D450LL's auto-reposition function skips that step entirely — three-phase motors bring it back to its exact position on their own, so your crew can focus on the show instead of resetting fixtures.
Application Scenarios
Specification
| Light Source | Philips MSD Platinum 300LL, 300W | Lamp Lifetime | Up to 5,000 hours |
| Input Voltage | AC 200–240V, 50/60Hz | Color Temperature | 8500K / 4500K / 3200K |
| Beam Angle | 0°–3.8° adjustable | Dimming | Mechanical linear 0–100%, 16-bit |
| Strobe | 0.5–9 Hz, pulse / sync / async | Color Wheel | 14 colors + open, half-color, bi-directional rainbow |
| Gobo Wheel | 13 static gobos + open, gobo shake & positioning | Prism | 8-facet rotating + honeycomb prism |
| Focus | Electronic linear HD focus | Frost | Independent frost filter |
| Pan / Tilt | 540° / 270°, 16-bit, auto reposition, three-phase motors | Control Protocol | DMX512 |
| DMX Channels | 16 CH | Display | Full-color TFT touch, 180° reversible |
| Cooling | Intelligent airflow-guided cooling with temperature monitoring | Lamp Protection | Intelligent lamp on/off control + remote sleep on DMX loss |
| IP Rating | IP20 (optional rain cover up to IP44) | Packing | Flight case or export carton |
| Net Weight | 17 kg | Gross Weight | 20.3 kg |
| Carton Size | 47 × 41 × 59 cm (1 pc) | Flight Case | 23 kg / 68 × 38 × 81 cm (2 pcs) |
Details & Features
What's in the Box
- • DMON D450LL Moving Head (Philips MSD Platinum 300LL)
-
- •Signal Cable
- •Power Cable
- •Omega Clamp
- •User Manual
Flight case available as an optional accessory.
Frequently Asked Questions
Can the D450LL be controlled by third-party lighting consoles?
Yes. It runs on standard DMX512 protocol with 16 channels, compatible with any DMX-compliant console on the market.
Is the lamp field-replaceable?
Yes. The lamp can be replaced on-site without returning the fixture. Replacement lamps are available from DMON at cost price under our after-sales policy.
Can this fixture be used outdoors?
The standard unit is rated IP20 (indoor use). An optional rain cover upgrades protection to IP44 for semi-outdoor applications such as covered stages or canopy installations. It is not rated for fully exposed outdoor use.
Do you offer OEM/ODM or custom branding?
Yes. We support OEM/ODM services including custom logo, packaging, and configuration for bulk orders. Contact us for MOQ details.
What happens if the fixture loses signal or power during a show?
The D450LL automatically enters sleep mode on DMX signal loss to protect the lamp. Pan/tilt uses 16-bit auto-repositioning with three-phase motors, so the fixture recovers accurate positioning after a power interruption without manual recalibration.
What's the warranty and how does after-sales support work?
2-year warranty with 3-business-day response commitment. Parts are supplied at cost price, and we guarantee parts availability for 5 years after any model is discontinued.
